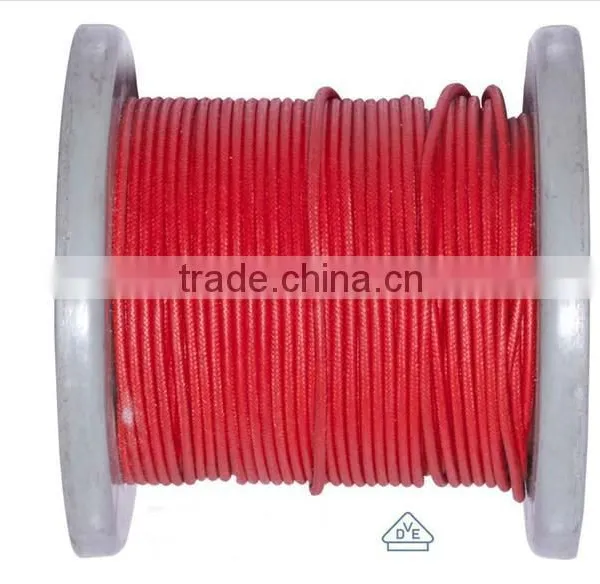

VDE H05S-K Silicone Insulated Wire
US$ 0.02 - 6
MOQ: 6100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haerkn
Model Number:
H05S-K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VDE Silicone Electric Wire VDE H05SS-K WireUS$ 0.02 - 6MOQ: 6100 Meters -
0.75mm Double Insulated Wire VDE H05SS-K Silicone WireUS$ 0.02 - 6MOQ: 6100 Meters
-
High Quality Heat Resistant Silicone Wire H05S-KUS$ 0.02 - 3.39MOQ: 6100 Meters
-
VDE H05S-K Silicone Wire &VDE Silicone Insulated WireUS$ 0.1 - 6MOQ: 6100 Meters
-
Three Cores Wire VDE H05SS-F Silicone WireUS$ 0.1 - 0.8MOQ: 6100 Meters
Place of Origin
Guangdong, China
Brand Name
Haerkn
Model Number
H05S-K
Type
Insulated
Application
Other, Internal wiring
Conductor Material
Other, tinned or bare copper
Conductor Type
Other, solid or stranded
Insulation Material
Other, silicone rubber
Specifications
H05S-K VDE Silicone Wire1.Rated Voltage:300/500V
2.Rated Temperature:180C
3.Standard:VDE 0282
4.Core: 1 Core.
VDE H05S-K Silicone Insulated Wire
VDE File Number :40026436
Specification
Rated voltage:300V/500V
Rated temperature:180C
Specification range
Conductor size:0.5~2.5mm2
Color: Same as customer requirements.
Core: 1 Core.
Application
They are widely used for headlamp, home appliance, industrial machine, instrument products.
Standard
VDE 0282
|
(Conductor) |
(Insulator) |
(Electrical Characteristic) |
(Packaging) |
|||
|
Section mm2 |
(Comps.n.x) φmm |
(Diameter) φmm |
(Insulation Thickness) /mm |
( Over diameter)/ φmm |
(Realest, max Cu, c 20°C) Ohm/km |
Mt/coils |
0.5 |
16/0.20 |
0.92 |
0.80 |
2.52 |
40.1 |
400 |
0.75 |
24/0.20 |
1.13 |
0.80 |
2.73 |
26.7 |
400 |
1.0 |
32/0.20 |
1.31 |
0.80 |
2.91 |
20.0 |
400 |
1.5 |
30/0.254 |
1.61 |
0.90 |
3.41 |
13.7 |
300 |
2.5 |
51/0.254 |
2.10 |
1.00 |
4.10 |
8.21 |
200 |
