Single Screw Cold-feed Vacuum Rubber Extruder

Name: Single Screw Cold-feed Vacuum Rubber Extruder
Brand: BAINA
SKU: 133751471

US$ 10,000 - 500,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Tire Machine

Tire Machine Type:

Tire Recycling Machine

Zhejiang Baina Rubber & Plastic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Tire Machine

Tire Machine Type Tire Recycling Machine

Place of Origin Zhejiang, China

Brand Name BAINA

Model Number BNCRJ-04-00

Voltage three phase, 380V,50HZ

Dimension(L*W*H) 2750mm(L)*1400mm(W)*1850mm(H)

Certification CE, ISO9001:2000

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

winding rubber hose /wrapped rubber HOSE production line

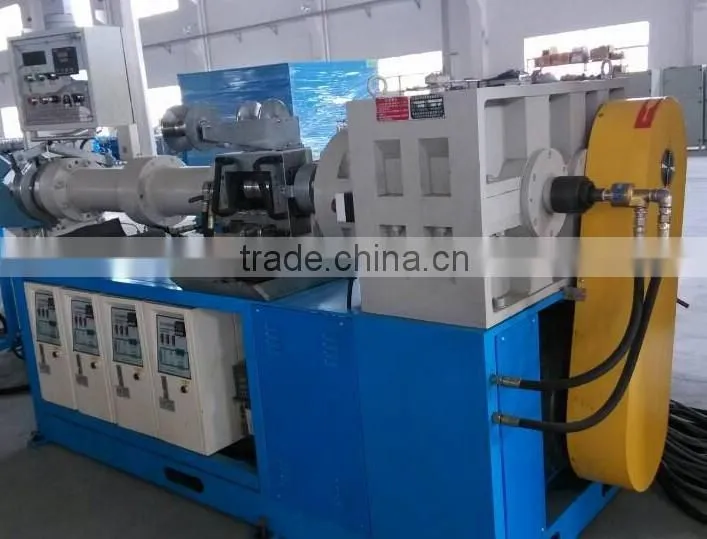

90 cold feed vacuum hose extruder

Forced feeding system
1.	Feeding way	Side Pressure Roller feeding automatically, and easy to clear the remaining rubber
2.	Feeding system	Next to the pressure roller gear drive
Extruder system
1.	Screw materials	38GrMoAlA
2.	Depth of Azotization	0.4—0.7mm
3.	Screw structure has good vacuum
4.	Single head	One set,with filter rubber plate
5.	Fixed head system	Quick clamping ring clamping method
6.	Extruder center high	1070mm±20mm
10.	Pressure control	with the pressure sensor and the pressure protection value to adjust 0-35MPA
11	Draw ratio	16:1
12	Screw diameter	90 mm
13	Screw speed	0-55r/min
14	Max output	about 280kg/h

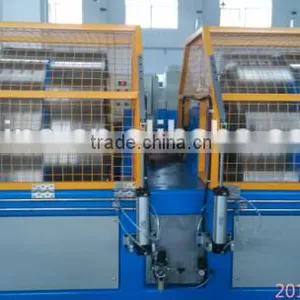

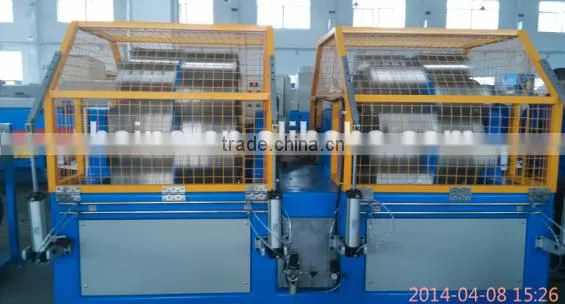

Winding machine//wrapping machine //spiraling machine

1.	Model	BNCRJ-04-00
2.	Use	Wind uniform string network outside the hose
3.	External dimensions	2750mm(L)1400mm(W)1850mm(H)
4.	winding disc speed	Max600r/min
5.	Rubber hose string speed	Max15m/min
6.	Motor	Y132M-4
7.	Power	7.5KW(One winding machine has two motors)
8.	Spindle number	72 Spindle
9.	Latus rectum	The model can produce the size of the product required by customers
10.	Tension control range of single yarn	30-150gf
11.	Winding density	0.82
12.	Disconnection alarm	When the disconnection transport is breaking,it alarms
13.	Instrument indication	Production line speed, traction speed, caliber
14.	Control method	Singal and on-line control changing-over button
