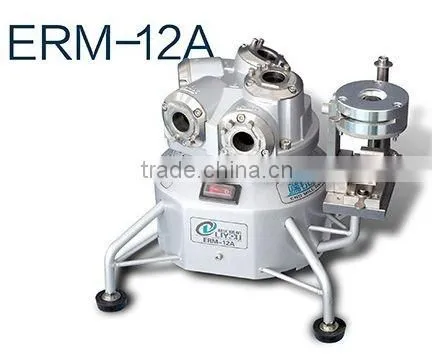

ERM-12A Univetsal Grinder Sharpener

ERM-12A Univetsal Grinder Sharpener thumbnail-1
ERM-12A Univetsal Grinder Sharpener photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LIYOU
Model Number:
ERM-12A
Contact Supplier Request Quote Chat Now
Taizhou Liyou Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name LIYOU
Model Number ERM-12A
Power Source Electricity
Type Angle Grinder
Variable Speed No
Rated Input Power 300w
Disc Diameter 100mm
Rated Voltage 110V/220V
No-Load Speed 6000rpm
Frequency 50/60Hz
Disc(Wheel) Type Grinding Disc
Dimensions 290*260*230(mm)
Weight 15KG

ERM-12A End Mill Re-sharpening Machine

ERM-12A Univetsal Grinder Sharpener

Patented products, high precision, high efficiency

Optimized structure design

High precision grinding wheel and grinding structure

Unique mill edge adjustment device

Precise holder fixture



Re-sharpening operation steps

1 Mill edge adjust

2 Rear inclined angle grinding

3 Blade edge grinding

4 Front inclined angle grinding

Grinding wheel: SDC wheels used for tungsten carbide tools, CBN wheel used for high-speed steel tools.



PRODUCT ADVANTAGES

1. Applicable to (2/3/4-flute) tungsten carbide and high-speed steel end mill.

2. Grind rear inclined angle, blade edge and front inclined angle.

3. For different end mill grinding, no need to change grinding wheel.

4. Easy to operate, grind one piece need no more than one minute.

5. High precision (0.01mm), normatively re-sharpening.

6. Mill cutting edge can be adjusted suitable for materials to be processed.



Product Parameter

Model

ERM-12A

Applicable diameters

fai 2-fai 12mm

Applicable flutes

2 flutes, 3 flutes, 4 flutes

Axial angles

Secondary clearance angle 8°, Primary relief angle 22°

End gash angle 30°

Grinding wheel

E12SDC-A (CBN Choose)

Power

220V±10%AC

Motor output

300W

Rated speed

6000 rpm

Outer dimensions

290*260*230

Weight

15KG

Normal accessories

Collect*7pcs,

2 flutes holder*8pcs,

3 flutes holder*8pcs,

4 flutes holder*8pcs,

case*1pc,

Hexagon wrench*2pcs,

Brush*1pc,

controller*1pc,

Gaskets*6pcs,

square flutes holder*1pc



ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener


ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener





ERM-12A Univetsal Grinder Sharpener



ERM-12A Univetsal Grinder Sharpener
