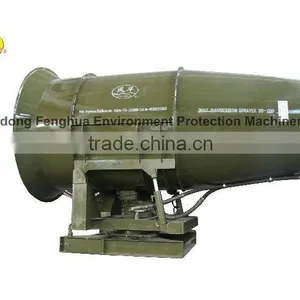

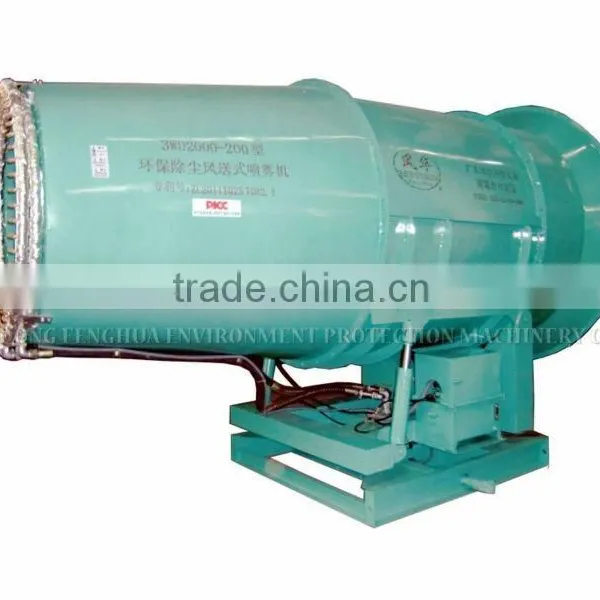

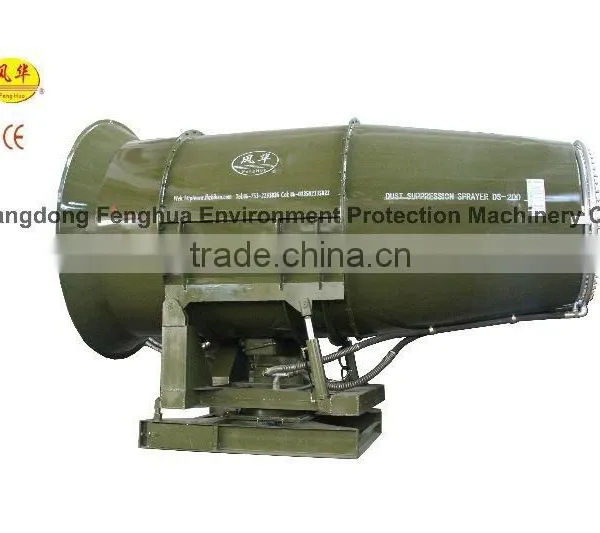

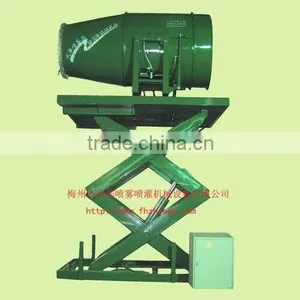

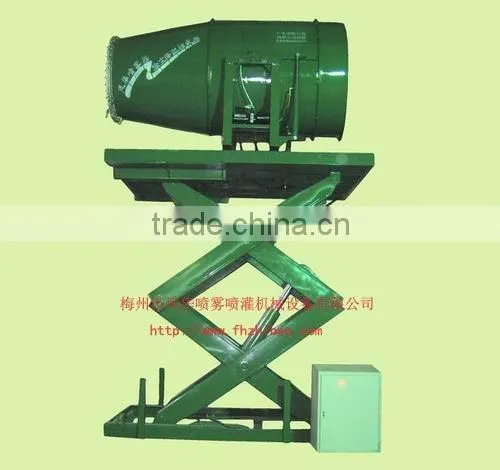

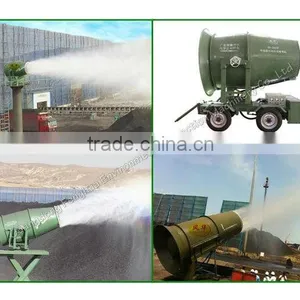

Vehicle mounted Fog Cannon Sprayer for coal and Open Minning dust control
Dust Suppression-200

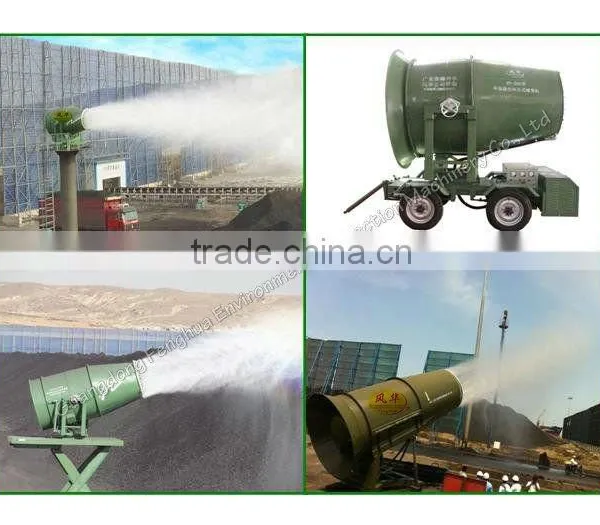

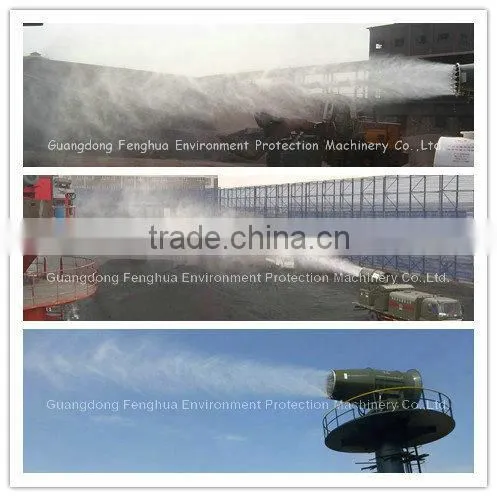

Dust suppression sprayer is one of the most important new devices for dust control, it is very effective against the particles produced by mining, materials handling, waste disposal, demolition, stock piles, port facilities, construction and many other applications.
• Demolition.
• Mining.
• Recycling.
• Timber handling.
• Biofuel handling.
• Odor suppression.
• Firefighting.
• Watering.
| Type | DS-200 |
| Throw | ≥200m |
| Volume Flow | 200-300L/min |
| Fog Droplet Size(adjustable ) | 50-350um |
| Water pressure(Mpa) | 2.5~3.5Mpa |
| Water pressure(bar) | 25-40bar |
| Water pressure(kg) | 25-40kg |
| Motor rpm | 2900 |
| Horizontal Rotation Angle(adjustable ) | 320° |
| Pitching Angle (adjustable ) | -10°~45° |
| Coverage Area | 70335.9m2 |
| Total Power | 132KW |
| Dimensions (L*W*H) | 340*210*300cm |
| Net Weight | 1530kg |
Description
Operation

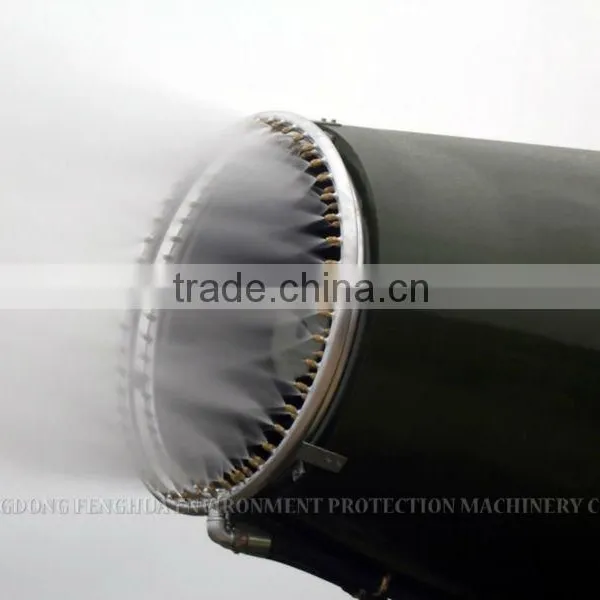

1. Normal water that through a High pressure pump and nozzles (from 5-60 according to the design) that turn into continuously equalized fog.
2. Cannon throwing a continuously equalized fog flow to a long distance.
Throw
From 35 to 200 meters from the outlet with a maximum elevation of 85° if required above the horizontal.
Traverse
Approximately 270°
Movement
Elevation, arc, traverse, pump pressure on-site and/or by remote control.
Drop size
From 0 to 300 microns curve shifted towards 150 microns.
Power
From a total of 7 kW to 112 kW depending on the throw required and, thus, the model.
Current
380V/50 Hz and others upon request.
H2O Consumption
From 10 to 250 liters/min of clean water.
Safety Devices
Those required by the local standard and laws.
