TVBTECH Air Duct Inspection Camera Sony 1/3" CCD

TVBTECH Air Duct Inspection Camera Sony 1/3" CCD thumbnail-1
TVBTECH Air Duct Inspection Camera Sony 1/3" CCD thumbnail-2
TVBTECH Air Duct Inspection Camera Sony 1/3" CCD thumbnail-3
TVBTECH Air Duct Inspection Camera Sony 1/3" CCD photo-1
TVBTECH Air Duct Inspection Camera Sony 1/3" CCD photo-2
TVBTECH Air Duct Inspection Camera Sony 1/3" CCD photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TVBTECH
Model Number:
3199F
Contact Supplier Request Quote Chat Now
TVBTECH (Shenzhen) Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name TVBTECH
Model Number 3199F
Type Analog Camera
Style Other, INSPECTION CAMERA
Sensor Other, CCD, 1/3" Sony CCD
Technology Infrared
Special Features Waterproof / Weatherproof

TVBTECH NEW Pipe drain Sewer Duct Inspection Camera



With 1/3" SONY CCD camera (tube diameter: 5.2mm), 7" color TFT LCD monitor and DVR recording feature





Advantages compared with competitors:



> 1/3 inch Sony CCD camera,



> 135° wide vision angle



> Sapphire glass lens cove



> 304# Stainless super short Camera head



> Cable reel is fixed and rotatable in the case, no need to take out and hold on hand when in using.



> Battery lasts up to 8 hours continuous working



TVBTECH Air Duct Inspection Camera Sony 1/3" CCDTVBTECH Air Duct Inspection Camera Sony 1/3" CCD





Selling Features:



Video pipe inspection camera with 30m fiberglass
cable and 7" monitor with DVR feature
> 1/3 inch Sony CCD camera, 135° wide vision angle
> Stainless steel super short camera head, IP 68 water proof level
> Sapphire glass lens cover, 12 high light white LEDs
> Diameter of camera: 23 mm
> Rubber ring and plastic center protectors for camera head
> 7” LCD color monitor
> SD Card slot to store still pictures or videos
> One push record button
> LED brightness control buttons
> Video image rotate button
> With microphone for audio recording
> Video-Out to connect to TV
> Rechargeable battery lasts up to 8 hours
> On-Screen date and time
> 30m fiberglass push rod
> Rotatable cable reel mounted in case for convenient operation
> Ability to go through bend pipes at diameter of 45mm
> Waterproof ABS suitcase with all parts included







Applications:







> For Professional Pipeline, Drain, Sewer, Duct, Chimneys, Machinery and Building Inspection;



> For Maintenance of Plumbing and Wiring behind walls







What’s included?







> Inspection camera with 12 LEDs
> USB digital video recorder with remote control
> 30m fiberglass cable and stainless steel reel
> 12v rechargeable battery
> 18cm (7") TFT LCD screen
> Sturdy storage box into which all items mount/fit







Packing details:







> Each unit in a professional tool case



> 1 unit in one carton



> Carton G.W.: 12kg



> Carton Measurement: 61 x 54 x 30cm







Specifications:

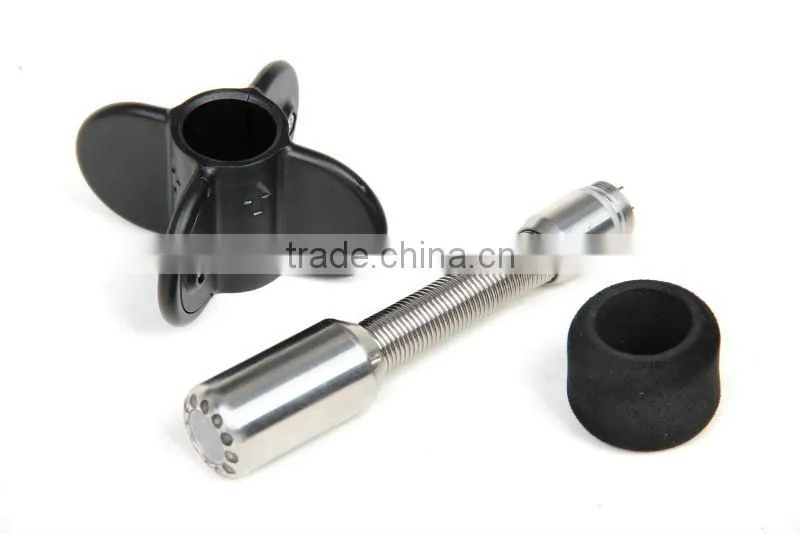

Camera Head



Sensor:

1/3” Sony CCD



Head Dimension:

23mm (dia.) ×45mm (length)



Camera Material:

304# Stainless Steel



View Angle:

135° wide angle



Lens Cover:

Sapphire glass



Leds:

12 High Bright White LEDs



Water Proof:

IP68

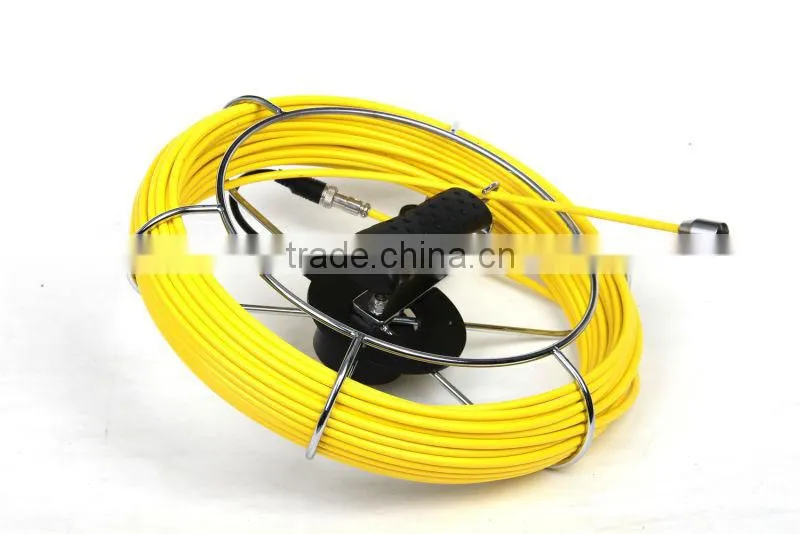

Cable Reel



Material:

Fiberglass rod cable

Wheel:

Stainless steel wheel

Cable Length:

20, 30 or 40m optional

Connector:

Gold touch-point connector

Rotation:

Rotable in the suitcase

Wheel diameter:

33cm

Cable diameter:

5.4mm

LCD Display and DVR



LCD Resolution:

800*480 pixels



Video Compress:

MPEG-4



Recording:

Video and audio recording



Picture:

Picture shot function



LCD Size:

7 inch



Language:

9 Languages



Panel Control:

Any Funtions through buttons



External Memory:

SD Card (Max. 32GB)
