New Popular Mitsubishi Ultrasonic Printer Making in China

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangxi, China

Jiangsu Tongren Medical Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

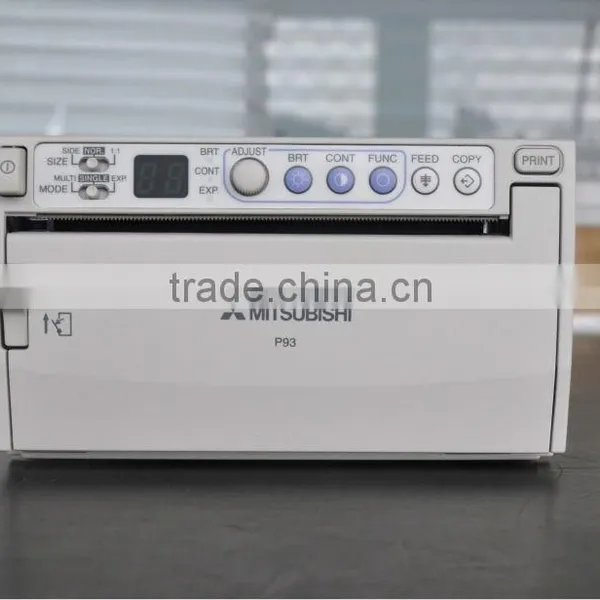

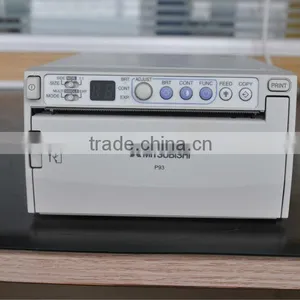

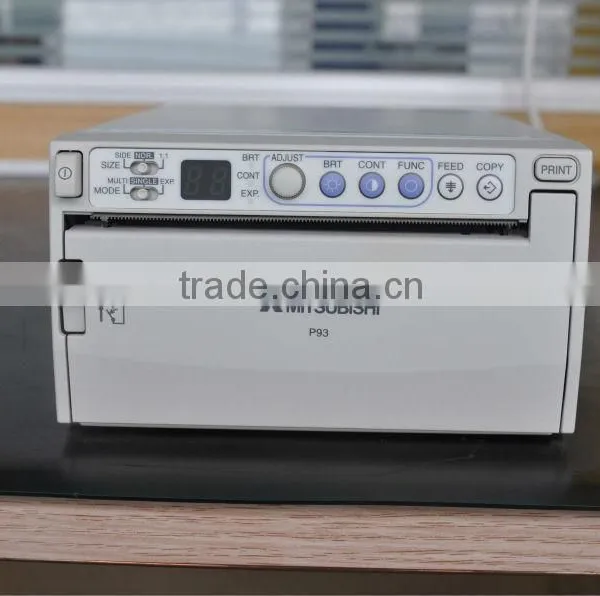

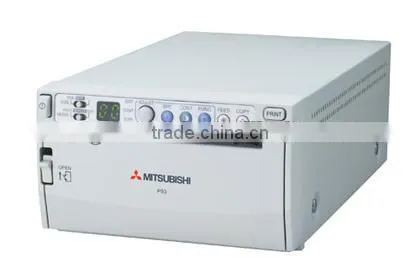

Mitsubishi Video Printer for Ultrasound

Technical Specifications

Thermal head	Thin-film thermal head, 1280 dots
Gradation	8-bit (256 levels) processing
Resolution	325 dpi
Dot density	H: 12.8 dots /mm = 0.078, V: 12.8 dots /mm = 0.078 Square dots
Printing speed	Approx. 3.3 seconds/image (at standard setting)(when SP:NOR is selected from SPEED)
Picture memory	10 frames (800 k x 8 bits for one frame)
Interface	Input connector: VIDEO IN (BNC type), EIA or CCIR composite video signals, 1.0 Vp-p, 75 ohms/high-impedance, (EIA/CCIR automatically discriminated), Output connector: VIDEO OUT (BNC type), EIA or CCIR composite video signals, 1.0 Vp-p, 75 ohm loop-through/EE switchable, REMOTE connector: stereo mini jack
Power requirement	100 to 240 V AC, 50/60 Hz
Input current	1.5 A to 0.8 A
Operating temperature	5 °C to 35 °C (41 °F to 176 °F)
Operating humidity	20% to 80%
Storage and transport temperature	-20 °C to 60 °C (-4 °F to 140 °F)
Storage and transport humidity	20% to 90%
Dimensions (W x H x D)	154x89.5x256mm(WxHxD)
Mass	2.8 kg (printer only)
Safety standards	UL60950-1+CSA C22.2No.60950.1 +UL60601-1+CSA No.60601-1, FCC/IC Class A Digital Device, EN60950-1+EN60601-1, EN55024+EN55022: Class B + EN60601-1-2, IEC60950-1+60601-1, C-Tick AS4252.1+AS3548 : Class B, GB4943(IEC 950)+GB9254(CISPR 22), VCCI Class A +mains harmonic current regulation
