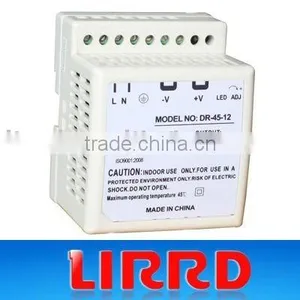

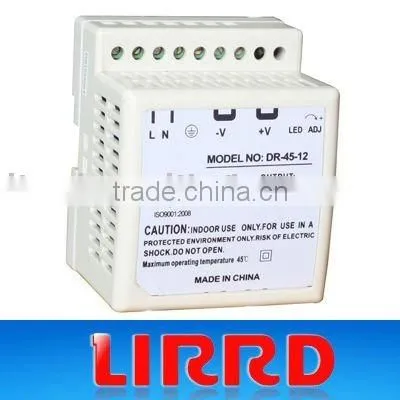

Din Rail Switching Power Supply(DR-45-12)
Negotiable
MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
LIRRD
Model Number:
DR-45-12
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Din Rail Switching Power Supply(DR-45-15)NegotiableMOQ: 10 Pieces -
Din Rail Switching Power Supply(DR-45-24)NegotiableMOQ: 10 Pieces
-
Din Rail Switching Power Supply(DR-60-5)NegotiableMOQ: 10 Pieces
-
AC to DC Power Supply/led Power Supply/ac Power Suuply/dc Power Suply (black Cover)US$ 1 - 20MOQ: 1 Piece
-
60W 24V 2.5A Single Output Power Supply/cctv Power Supply/dc Power Supply S-60NegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
LIRRD
Model Number
DR-45-12
Output Power
1 - 50W
Output Type
Single
Input Voltage
220V
Output Voltage
12V
Output Current
3.5A
Specifications
din rail switching power supply(DR-45-12)Offer CE certification
Competitive price, high quality, prompt deliver best serveice
din rail switching power supply(DR-45-12)
- 105oC Output capacitor
- AC input power suitable for the world
- High efficiency and low operation temperature
- Soft-start current can reduce the AC input impact effeciticly
- With short-circuit and overload protection
- Compact size, light weight
- 100% full-load burn-in test
- Installed with EMI filter, minimum wave
| Model | DR-45-5 | DR-45-12 | DR-45-15 | DR-45-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Output voltage range(Note:2) | ±2% | ±1% | ±1% | ±1% |
| Rated output current | 5A | 3.5A | 2.8A | 2A |
| Output current range | 0-5A | 0-3.5A | 0-2.8A | 0-2A |
| Wave and noise(Note:3) | 100mVp-p | 200mVp-p | 240mVp-p | 480mVp-p |
| Inlet stability(Note:4) | ±1% | ±1% | ±1% | ±1% |
| Load stability(Note:5) | ±1% | ±1% | ±1% | ±1% |
| DC output power | 25W | 42W | 42W | 48W |
| Efficiency | 72% | 77% | 77% | 80% |
| Adjustable range for DC voltage | 4.75~5.5V | 10.8~13.2V% | 13.5~16.5V% | 21.6~26.4V |
| AC input voltage range | 85~264VAC 47~63Hz;120~370VDC | |||
| Input current | 1.5A/115V 0.75A/230V | |||
| AC inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | <1mA/240VAC | |||
| Overload protection | 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery | |||
| Temperature coefficient | ±0.03%/°c(0~50°c) | |||
| Setup, rise , hold up time | 800ms, 60ms, 50ms | |||
| Vibration | 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes | |||
| Withstand voltage | Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC | |||
| Isolation resistance | Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ | |||
| Working temperature and humidity | -10°c~+60°c(Refer to output derating curve), 20%~90%RH | |||
| Overall dimension | 93×78×67mm | |||
| Weight | 0.31Kgs | |||
| Safety standards | Meet UL 1012 requiement (Not apply for the mark) | |||
| EMC standards | Meet FCC PART 15 J Conduction class B | |||
|
Note: 1. The testing condition for the paramenter above is: 230VAC input, rated load, 25°c 70% RH. Temperatuer. 2. Error: include the setting error, line stability and load stability.(Note:5) 3. Wave test: adopting "A12" double wire for 20MHz, and 0.1UF&47UF capacitor short-circuit for interrupting. 4. Inler woltage stability test: when is over load, the lowest voltage of inlet is up to the highest voltage. 5. Load stability test: The load is from 0% to 100% | ||||
