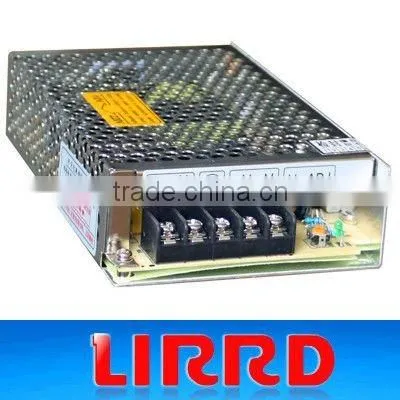

75W Switching Power Supply S-75

Name: 75W Switching Power Supply S-75
Brand: LIRRD
SKU: 133886965

US$ 1 - 30 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

LIRRD

Model Number:

S-75

Zhejiang Lierd Relays Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name LIRRD

Model Number S-75

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 85-264VAC

Output Voltage 3V-48V

Output Frequency 50/60HZ

Output Current 1-10A

Specifications

75W Switching power supply S-75
1.100% full load burn in test
2.high conversion rate and low temperature
3.CE ISO

75W switching power supply S-75

Switching power supply
1.100% full load burn in test
2.high conversion rate and low temperature
3.warranty period of 1year

S-75 Switching Power Supply

Model Specification	S-75-5	S-75-12	S-75-24
DC output voltage	5V	12V	24V
Output voltage range(Note:2)	±1%	±1%	±1%
Rated output current	15A	6.3A	3.2A
Output current range	0-15A	0-6.3A	0-3.2A
Wave and noise(Note:3)	70mvp-p	100mvp-p	100mvp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±0.5%	±0.5%	±0.5%
DC output power	75w	75.6w	76.8w
Efficiency	73%	81%	84%
Adjustable range for DC voltage	4.5~5.5v	10.5~13.2v	21.5~27v
AC input voltage range	85~132VAC/176-264VAC selected by switch 47~63Hz;248~370VDC
Input current	1.6A/115V/ 0.8A/230V
AC Inrush current	20A/115V 40A /230V
Leakage current	<3.5mA/240VAC
Overload proctection	105%~150% Type:pulsing hiccup shutdown Reset:auto recovery
Over-voltage protection	115%~135% Type:pulsing hiccup shutdown Reset:auto recovery
High-temperature protection	>=80⁰C~85⁰C,Cut off output(5~15V)~(24~48V)
Temperature coefficient	±0.03%/⁰C(0~50⁰C)
Setup,rise,hold up time	200ms,100ms,20ms
Working temperature and humidity	-10⁰C~+60⁰C(Refer to output derating curve),20%~90%RH
Srore temperature and humidity	-20⁰C~+85⁰C,10%~95%RH
Overall dimension	159×98×38mm
Weight/packing	0.5kgs, 30pcs/16KG
Safety standards	Design refer to UL 1950
EMC standards	Desgn refer to FCC Part15J classA
