Help CenterAutomatic Polyurethane Foam Filling Machine
Related Products
Specifications
Top speed: 40cans/minHeight of cans: 85-330 mm
Diameter of cans: 35-65 mm
Filling capacity:30-1000ml

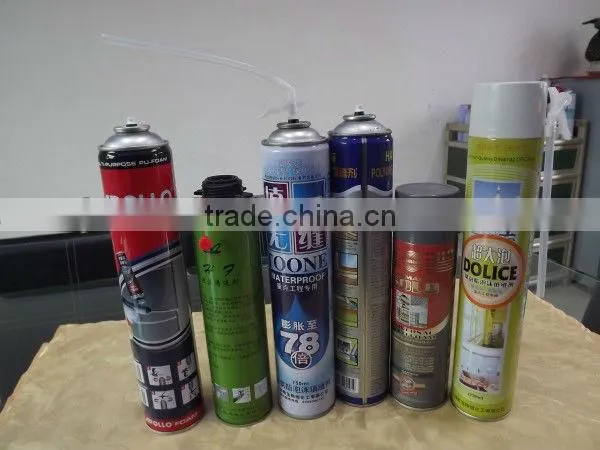

QGQ is designed to produce PU foam aerosols for simple and economical applications. It is suitable for filling rigid (metal and plastic and glass) containers with diameters ranging from 35 to 65 mm and height from 85 to 330 mm and with 1" collets. The machines require one size set for each diameter of cans and is equipped with a system to adapt to different heights of cans.
The machines feature all pneumatic control logic to address hazardous environment concerns while providing an easy-to-use system for maintenance issues.
The conveyor system features adjustable guide railing to allow all of the standard aerosol containers to run on the system without the need for additional change parts.
The machine bases are constructed from epoxy-coated structural steel and are covered with a polished stainless steel top.
All machine parts are easily accessible. A few simple adjustments allow a changeover to a different type of production.

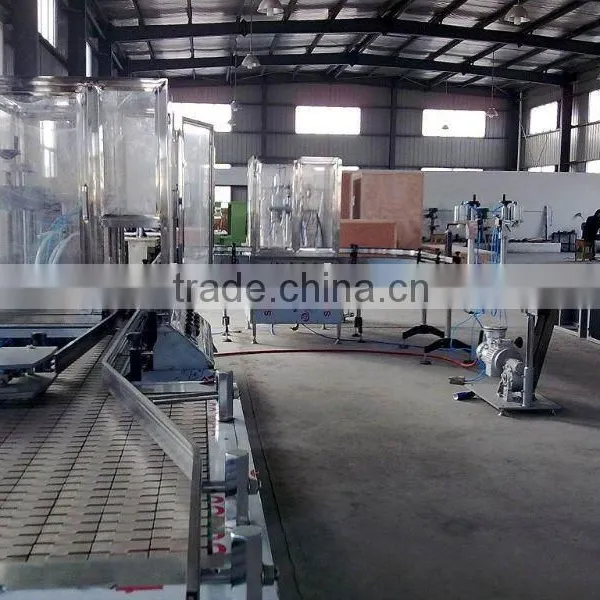

The line is composed by the following units,

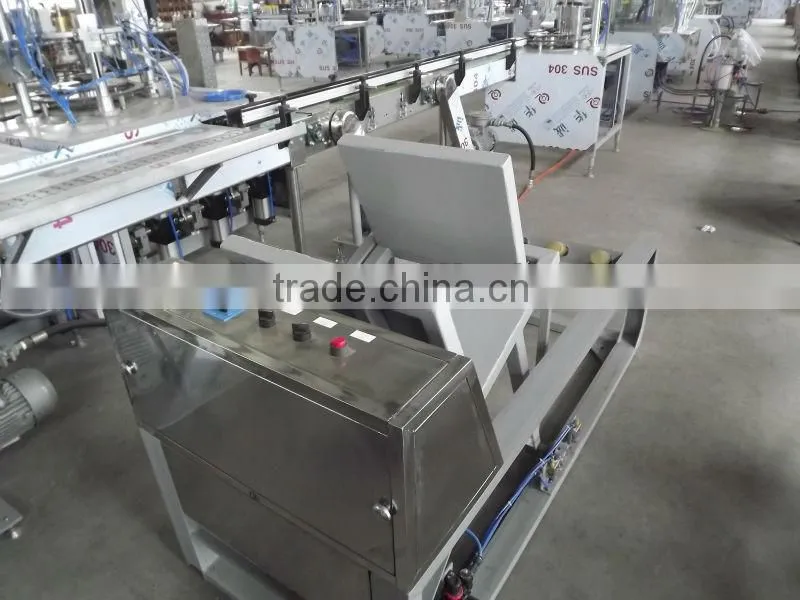

1. MG1500: Empty cans feeding table.

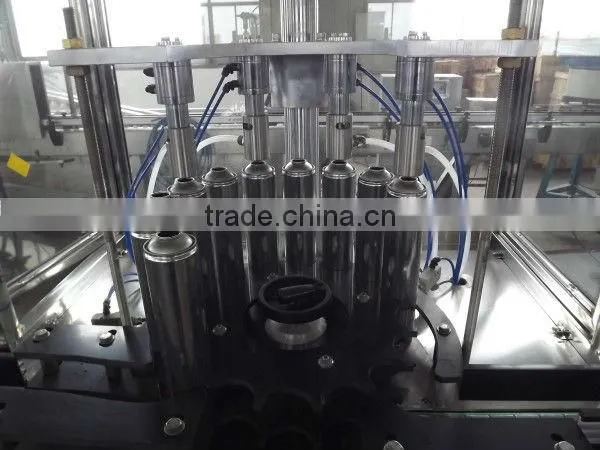

2. QGQ750 INDEX TABLE: Pneumatic single indexing or intermittent motion design where the containers are moved around the machine in steps under each working station.
Standard working stations include:
-4 = Product Fillers
-Stations can be added or subtracted to fit your needs.
-The table can be pre-drilled for a future upgrade of Valve Inserter or Marble Dropper.

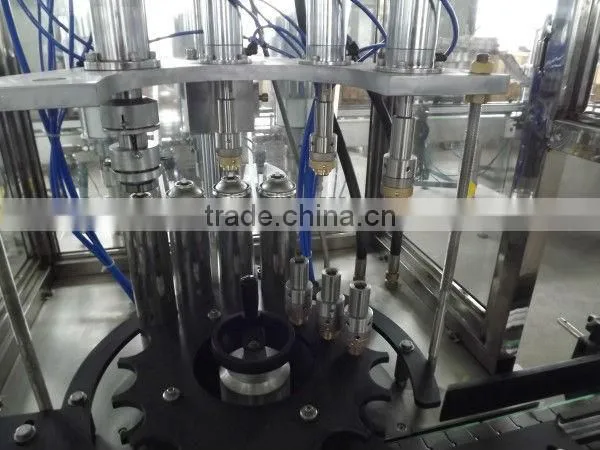

3. QCQ750 INDEX TABLE: Pneumatic single indexing or intermittent motion design where the containers are moved around the machine in steps under each working station.
It is suitable for filling propellants such as LPG by means of special gas metering cylinders.
Standard working stations include:
-1 = Crimper
-3 = TTV(Through-The-Valve) Propellant Fillers
-Stations can be added or subtracted to fit your needs.
4. SG600: Filled containers accumulating table.
5. CONVEYORS AND MOTORS: Conveyors to connect all units. Electrical installation standard is IP55 and motors are made explosion-proof.
6. PROPELLANT ACCUMULATOR AND BOOSTER PUMPS
7. INK JET PRINTER, CHECKWEIGHER, TIPPER, OVERCAPPER, AND OSCILLATOR
