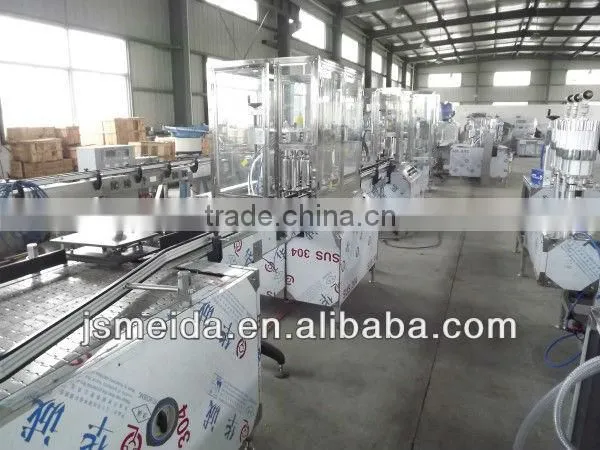

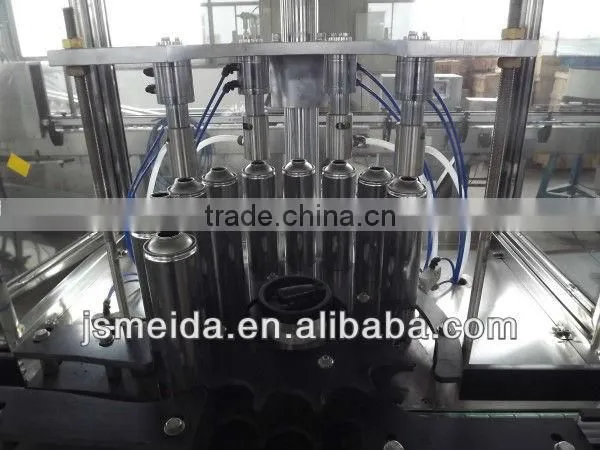

Help CenterAutomatic PU Foam Filling Machine for Construction Building
Related Products
Specifications
automatic pu foam filling machine:production capacity: 40-50cans/minute
Filling volume: 1000ml
Filling PPG and MDI, LPG, DME
This automatic line is specifically designed for PU foam products manufacturing with the feature of fast speed, high automation, intelligent, stable and reliable. It is also suitable for all typical aerosol products manufacturing. Some working stations are optional depending on customer’s budget.
Stainless steel 304 working table panel and stainless steel 316 for the parts that touch liquid material and propellant, fully pneumatic controlled to be sure no any risk of explosion caused by electrical parts, even motor for the conveyor are explosion proof.
The parts for liquid dosing system and gas metering system are all manufactured by CNC machine, thus high filling accuracy and stable running performance are available.
Liquid filling capacity |
10-250ml per head |
|
Total liquid filling capacity |
10-1000ml |
|
Propellant filling capacity |
10-250ml per head |
|
Total propellant filling capacity |
10-750ml |
|
Filling tolerance |
≤ ± 1% |
|
Applicable valve |
1” gun or straw type valve for PU foam |
|
Applicable can |
height |
70-330mm |
diameter |
30-70mm |
|
Compressed air consumption |
3m3/min at pressure 0.7MPa |
|
Send Inquiry to This Supplier
