Specifications
ytterbium fiber laser markermarking and engraving on metal,plastic,etc
International optics standard
SO CE
Optic fiber

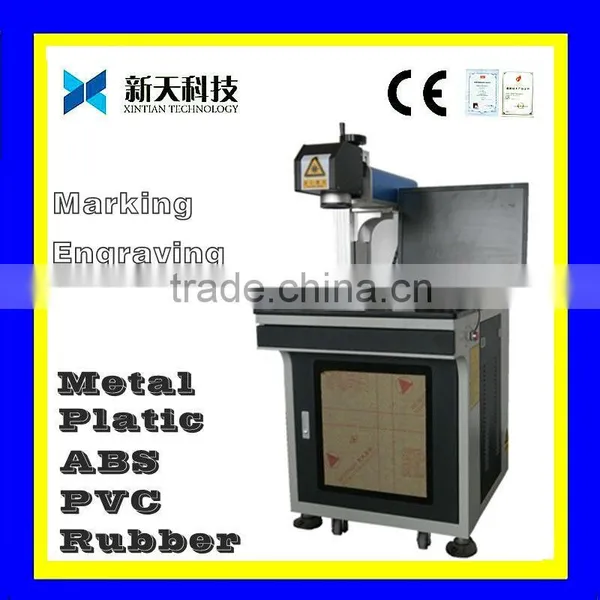

ytterbium fiber laser marker
fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world , It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, It use air-cooling systems,the size of whole machine is compactness,the laser beam quality is excellent. this machine is widely applied to marking metal and some metalloid materials,mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe,communication products images marking etc.
Features
fiber lazer machinery for metal engraving adopted international advanced technology and the working material is fiber. The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam.
- Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 22kg.
- High Precision: Re-position precision is 0.002mm
- High Speed: Imported scanning system makes the scanning speed is up to 7m/s
- Easily Operating:Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW and Photoshop.
- High Reliability: MTBF>100,000 hours
- Energy Saving: The efficiency of optic-electrical converting is up to 30%
- Low Running Cost: No wearing part. Free maintaining.
Advantages
1.Fiber lasers are up to ten times more efficient than traditional YAG or CO2 laser systems.Consuming little to no energy when not active, the annual energy saving can attract government grant funded energy efficiency programs for industry.
2.Fiber lasers have no optic to adjust or align, and no lamp to replace. Maintenance is minimal and so utilization and up-times are maximized.The lasers really are designed as shop floor industrial tools
Applicable materials
The fiber laser marking machine Suitable for all kinds of metals, industrial plastic, electroplates, metal coated materials, rubbers, ceramic, and so on.Widely used in fields like mobile button, plastic transparent button; electronic arts, IC, tools, communication products;bathing products, tool accessories, glasses and watches, jewelry, button decoration for boxes and bags, cookers, stainless steel products and so on
Technical Parameters
Type specification |
XTL-F20 |
Laser mode |
Base mold |
Wave length of laser |
1.064μm |
Laser repetition frequency |
20kHz~100kHz |
Laser power |
10W/20W/30W |
Marking scope |
70×70 /100×100 /200×200mm |
Laser sources |
Fiber module ( imported ) |
Laser Head |
Scanning head (imported) |
The minimum focus facula diameter |
20μm |
Minimal character |
0.01mm |
Marking speed |
≤8000mm/s |
Repeated accuracy |
0.0025mm |
Cooling ways |
Force-air Cooling |
Power supply |
220V/ 50Hz/2kVA |
Net weight |
56KG |
Volume |
0.36 m3 |
Process Material |
All kinds of metal and part of Non-metal Materials |
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc |
Package |
Standard Crate for export |
The whole machine include |
LCD display, controller box ,laser systems, |
Configuration |
Coaxial red light position system Up & down worktable Cover protection |
Accessory box |
Microsoft dog, quality certificate etc |

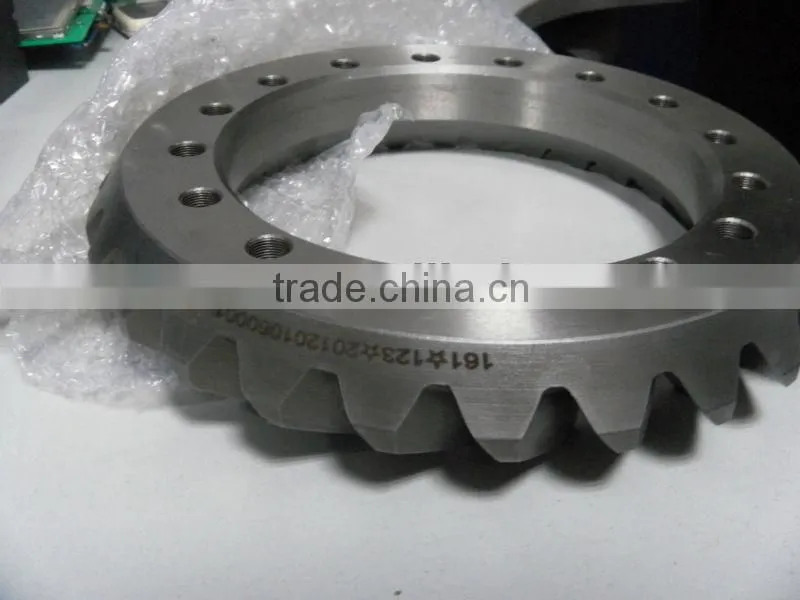

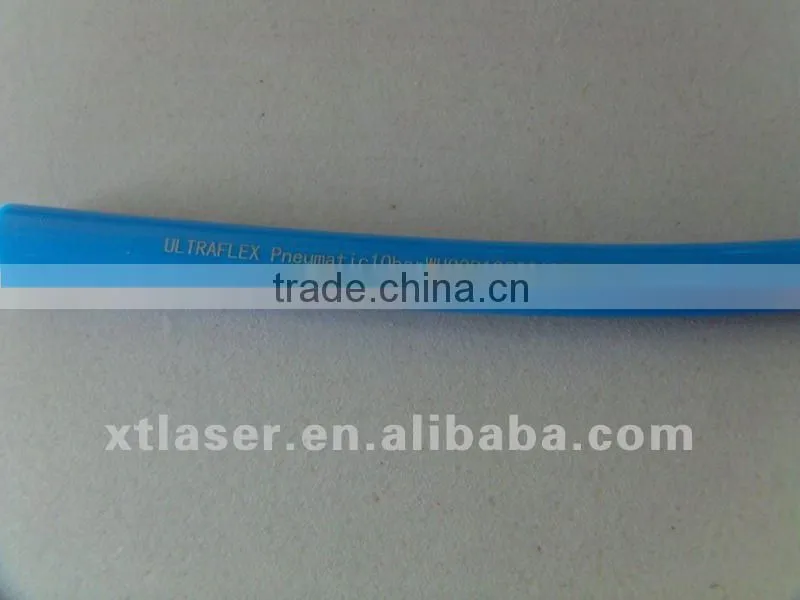

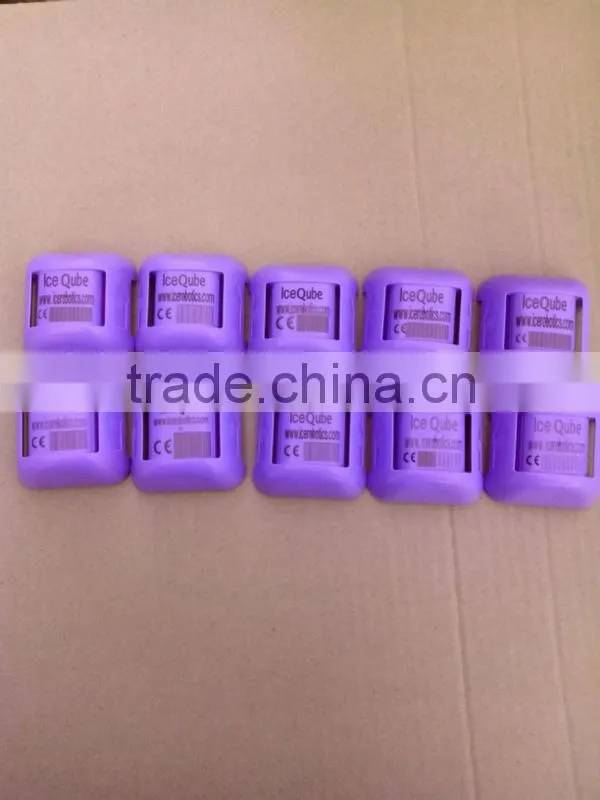

Samples
Attend the exhibition
About us
Jinan XinTian Technology Co., Ltd was established in 2004, It is a professional manufacturer engaged in the research,development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
Certification
Our dot pin engraving machine have been exported to USA,European,South america,Middle east,Africa,etc..
Pre-sale service
1 Providing technical consultation: we will provide you with any professional technology and the price consultation according to your needs in the 10 hours of less than, we can also post related sample and product material, or give quick response for you care about any questions timely , such as: processing technology in the application of different materials difference, processing time and take shape design and color of the relation, etc.
2 Providing visiting reception: we welcome you to visit the company to inspect the anytime and anywhere, andprovide you with any convenient conditions.
Sales service
1 Whether you are foreign customers or domestic customers, whether you are our old customer is our new friends, whether you contract is big or small, we will be integrity, fair, enthusiasm, scrupulously the same treatment.
2 We guarantee punctual, quality and quantity assurance to strictly carry out the terms and conditions of the contract, and to provide value-added services, such as installation, training and so on.
After-sales service
We have established a global after-sales service information processing system, 24 hour tracking customer.
1 From purchasing date, whole life enjoy upgrading software free.
2 From purchasing date , free take part in all kinds of technical training course at any time .
3 Domestic maintenance service point, less than 300 kilometers , we promise 24 hours door-to-door service and maintenance,more than 300 kilometers, within 72 hours of maintenance.
4 Foreign customers we reply within 10 hours , make maintenance service with 72 hours .
We are looking for overseas distributor for our Laser marking machine for ytterbium fiber laser marker
