Description:
CO2 laser marking machine is also known as a CO2 laser labeler. This high speed laser marking machine utilizes a series of advanced technologies and components, including imported American CO2 lasers, high-speed scanning lens system, high qualified optic components, stable laser electrical source and full-auto control system. As a result, our laser marker features precise, reliable and high speed performances and it can also be run for a long time.
Certificaion
Details
1.High lightning conversion effiencency.
2.Equipment performance is extremely stable, high precision carving and sculpture fast for long time to work
3.Adopting highspeed galvanometer system with high speed, high precision and stable performance.
4.Adopting imported optics lens, low loss, excellent focalization performance.
5.The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date, bar code and two-dimensional code marking.
6. Can quickly mark letter,figure,graphics or auto-coding ,serial No., batch No.,barcode,2 -D code, etc. on nonmetal surface which are precise, permanent., non-polluting and environment-friendly
Application
It can be used in organic glass, ceramic, Synthetic materials, woods, bamboo, rubber, leather, paper, cloth and so on.It works in capacitance, inductance, Printed circuit board, integrated circuit, electric plug card, some kinds of instruments and control panels, buttons, cosmetic package, foods, drinks, handicraft and sationery.

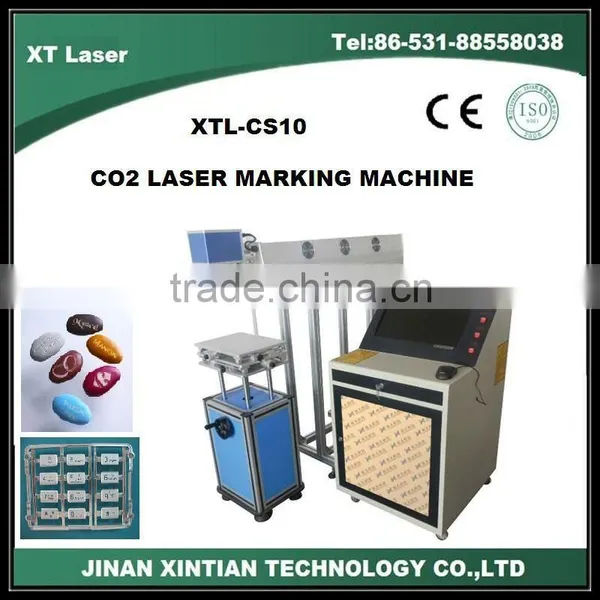

Machine Picture:
Specifications:
Model |
XTL-CS30-CO2 |
Laser power |
10w/30w/50W/100w |
Working area |
0~300mm*300mm(100w: 0~600*600mm) |
Laser Wavelength |
10.64μm |
Response time |
0.5ms |
Frequency of pulse |
20KHz |
Max marking depth |
0-6mm |
Marking speed |
0-7000mm/s |
Minimum line width |
0.1mm |
Minimum character |
0.3mm*0.3mm |
Repeatability accuracy |
±0.005mm |
Resolution ratio |
0.1mm |
Graphic format supported |
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
Unit power |
≤1.2KW |
power |
220V/50Hz/10A |
Cooling method |
Air cooling (100w: Water Cooling) |
Net weight |
150kg |
Dimension |
1470*1300*1000mm |
Sample Picture:
p1:
COMPANY PROFILE
Jinan Xintian Technology Co.,Ltd is professional manufacturer of laser equipment, established in 2004.
It is a professional manufacturer engaged in the research,development, production and service of
Diode pumped Laser marking machine, Fiber laser marking machine,CO2 laser marking machine,Pneumatic marking machine,Laser engraving machine,Laser welding machine, Laser cutting machine and Laser trimming machine.
CERTIFICATE
30 watt low price laser marking machines has passed the CE certificate and ISO9001:2008.
NAMECARD
OTHER PRODUCTS:
Except 30 watt low price laser marking machines we have other models for your check:
Fiber laser marking machine,pneumatic marking machine,semi-conductor side pumped laser marking machine
