mobile phone cases laser engraving machine/fiber laser marking machine 10W
General introduction of Portable laser marking machine
- What is laser marking?
"Laser marking" stands for marking or labeling of workpieces and materials with a laser beam. In this regard, different processes are distinguished, such as engraving, removing, staining, annealing and foaming. Depending on the material and the quality requirement, each of these procedures has its own advantages and disadvantages.
- Laser engraving
During laser engraving, the workpiece surface is melted and evaporated with the laser. Consequently, the laser beam removes the material. The thus produced impression in the surface is the engraving.
- Removing
During removing, the laser beam removes the top coats applied to the substrate. A contrast is produced as a result of the different colors of top coat and substrate. Common materials that are laser marked by way of removing of material include anodized aluminum, coated metals, foils and films, or laminates.
- Staining
In the staining method, the heat effect generated by the laser beam causes a chemical reaction in the material. Depending on the material composition, this will result in different color shades. For example, if a light plastic material is discolored during laser etching, soot particles may be produced that will result in a dark marking.
- Annealing marking
Annealing marking is a special type of laser etching for metals. The heat effect of the laser beam causes an oxidation process underneath the material surface, resulting in a color change on the metal surface.
- Foaming
During foaming, the laser beam melts a material. During this process, gas bubbles are produced in the material, which reflect the light diffusely. The marking will thus turn out lighter than the areas that have not been etched. This type of laser marking is used mainly for dark plastics.
- Benefits of laser marking
High-precision marking at constant quality
Thanks to the high precision of laser marking, even very delicate graphics, 1-point fonts and very small geometries will turn out clearly legible. At the same time, marking with the laser ensures constant high-quality results.
Durable marking
Laser etching is permanent and at the same time resistant to abrasion, heat and acids. Depending on the laser parameter settings, certain materials can also be marked without damaging the surface.
High marking speed
Laser marking is one of the fastest marking processes available in the market. This results in high productivity and cost benefits during manufacture. Depending on the material structure and size, different laser sources (e. g. fiber lasers) or laser machines (e. g. galvo lasers) can be used to further increase the speed.
What Specifications of Portable laser marking machine
| Model | XTL-F10 | XTL-F20 | XTL-F30 |
| Laser power | 10W | 20W | 30W |
| Laser source |
German IPG fiber laser China Raycus fiber laser China Max fiber laser |
||
| Light wave length | 1064nm | ||
| Laser modulation mode | Coupling amplification | ||
| Marking area | 110×110mm, 200×200mm, 300*300mm other size needs to be comfirmed | ||
| Work table size | 150×210 mm | ||
| Max marking speed | 7000mm/s | ||
| Marking depth | 0.01~5mm(acc. to material) | ||
| Min linewidth | 0.01mm | ||
| Min marking character | 0.2mm | ||
| Impulse frequency | 20~250kHz | ||
| Cooling way | Air cooling | ||
| Power supply | 220V/50Hz/500w | ||
| Min focus facula diameter | 20μm | ||
| Re-position accuracy | 0.0025mm | ||
| Laser indicator | Red dot pointer | ||
What Applications of Portable laser marking machine
Applications:
Laser Light Technologies can laser mark or laser engrave any shape or illustration, identification, and a variety of automatic ID codes, including but not limited to Data Matrix, Dot Matrix, Code 3 of 9, Interleaved 2 of 5, and many others. We have character recognition systems and 2D readers to verify and grade marks to ANSI Standards. Areas of applications include medical, semiconductor, MEMS, aerospace and automotive industries.
Materials:
Laser Light specializes in laser marking and laser engraving anodized aluminum, stainless steel, titanium, gold, silver, nickel, silicon, wood, glass, acrylic, delrin, and a variety of polymers. We also have the capability of putting a permanent laser mark on the inner surface of rings. We can mark any font or custom logo you specify.
Capabilities:
With an unlimited font selection, Laser Light has capabilities of marking alphanumeric characters as small as 20-microns in height with our smallest stroke width being 6 microns at an engraved depth of 0.1″ or deeper. Our typical working area is up to 18”X24″, which can be extended to fit your needs. We employ X/Y/Z micropositioning stages and rotary indexers integrated to hold positional tolerances of greater than +/- .001″. Logos and text can be machined on flat, cylindrical, and/or curved surfaces.
ITEM: Laser Engraving Application and Fiber Laser Laser Type Laser Engraving Cutting Marking Machines
|

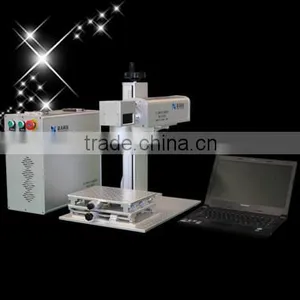

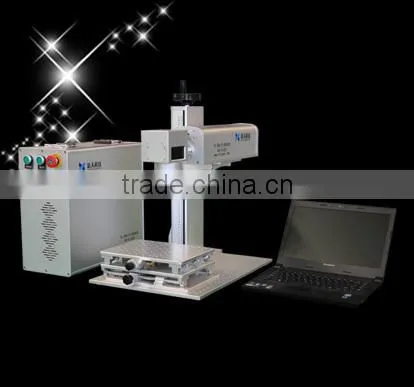

Model 1, Desktop fiber laser marking machine This mdoel you can put your leg in there,and you can control with your foot.Hot Sale Small portable laser engraving machine
|
Machine Size: 85x70x138cm Package Size: 90*85*158cm Net Weight: 120kg Gross Weight: 170kgs Delivery Time: 5 days Transportation: BY AIR or EXPRESS |

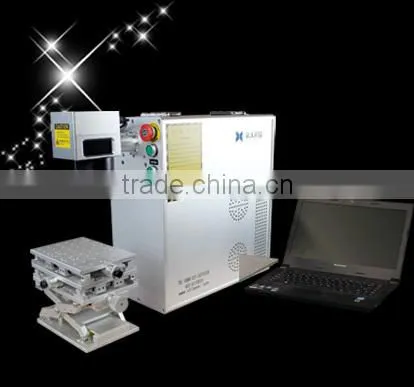

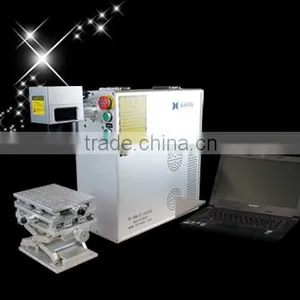

| Model 2 , Portable fiber laser marking machine very easy and it is convient to cary and take your samller room Hot Sale Small portable laser engraving machine
|
Machine Size: 70x20x50cm Package Size: 80*35*65cm Net Weight: 35kg Gross Weight: 55kgs Delivery Time: 5 days Transportation: BY AIR or EXPRESS |
| Model 3 , Mini fiber laser marking machine Many customers like this model for working.And don't take up more room.Hot Sale Small portable laser engraving machine
|
Machine Size: 72x53x68cm Package Size: 90*58*75cm Net Weight: 58kg Gross Weight: 70kgs Delivery Time: 5 days Transportation: BY AIR or EXPRESS |

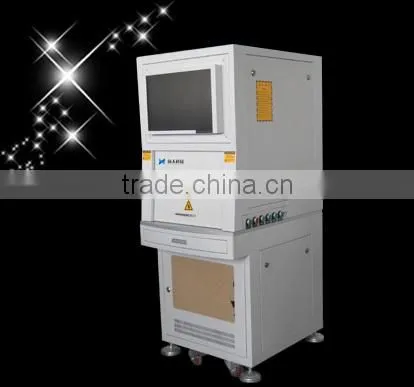

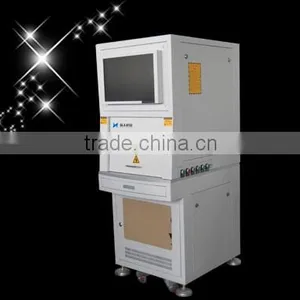

| Model 4 ,Fiber laser marking machine with cover Many customers from Eru.and the America more choose this one,because it is important for environment.Hot Sale Small portable laser engraving machine
|
Machine Size: 72x53x68cm Package Size: 91*71*169cm Net Weight: 170kg Gross Weight: 200kgs Delivery Time: 7 days Transportation: BY AIR or EXPRESS |
| Model 5 , Handheld fiber laser marking machine Many customers choose this one,because you can use your hand to take it.Hot Sale Small portable laser engraving machine
|
Machine Size: 60x22x52cm Package Size: 80*35*75cm Net Weight: 30kg Gross Weight: 50kgs Delivery Time:5 days Transportation: BY AIR or EXPRESS |
| Model 6 ,Mini 3D fiber laser marking machine with cover Many customers choose this one,because you can use your hand to take it.Hot Sale Small portable laser engraving machine
|
Machine Size:70x35x65cm Package Size: 90*50*80cm Net Weight: 30kg Gross Weight: 50kgs Delivery Time:5 days Transportation: BY AIR or EXPRESS |

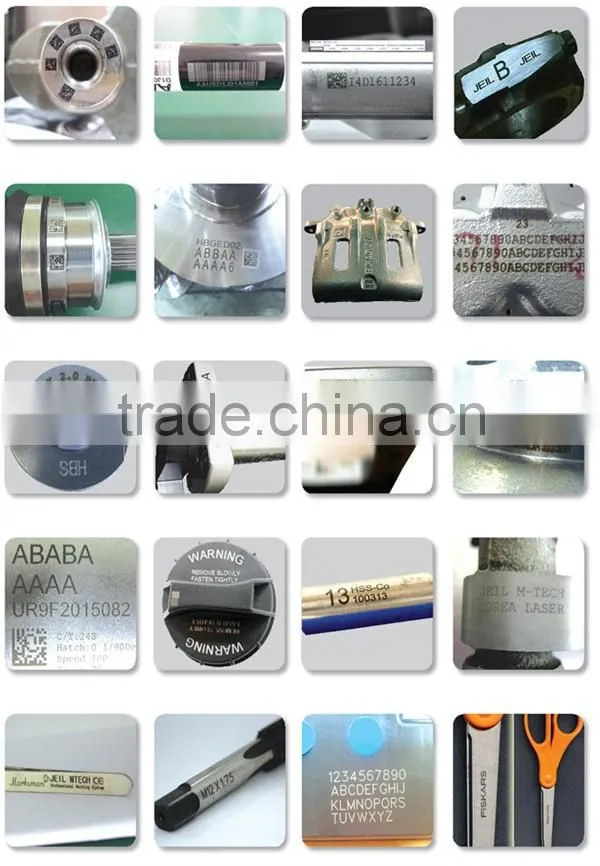

Sample Photos of Portable laser marking machine
Packing & Shipping of Portable laser marking machine
Our Certifications
About US
Jinan XinTian Technology Co., Ltd was established in 2004. It is a professional manufacturer engaged in the research, development, production and service of Diode pumped Laser marking machine, Fiber laser marking machine, CO2 laser marking machine, Pneumatic marking machine, Laser engraving machine, Laser welding machine, Laser cutting machine and Laser trimming machine.
Company View
Our Service
1. 24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. One-year warranty is provided. (The detailed reference will be written into the final contract.)
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
Trade Terms:
- Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before deliverying.
- Delivery Time: 3-5 days after payment will send fiber laser marking machine
- MOQ: 1set Factory price fiber laser marking machine
- Package Informations: normally use wooden box to pack fiber laser marking machine
How to Contact Us?
1) You can send inquiry via Alibaba
2) Email us at lasermachine01(at)
3) Online chat via TradeManager or Skype (id: xtlaser102)
4) Call us 86-15820019181 to get Ms. cherry
Please do not hestitate to send us inquiry to know more details.
For more query, please feel free to send us inquiry, thank you for visiting our mobile phone cases laser engraving machine/fiber laser marking machine 10W
