Specifications
arch roofing roll forming machine in Chinathickness 0.-0.8mm
trapezoid/corrougated wave panel
competitive price
better
Automatic hydraulic uncoiler with car is also avaliable.But the manual machine price is much lower than
antomatic ones.
Max width:1250mm

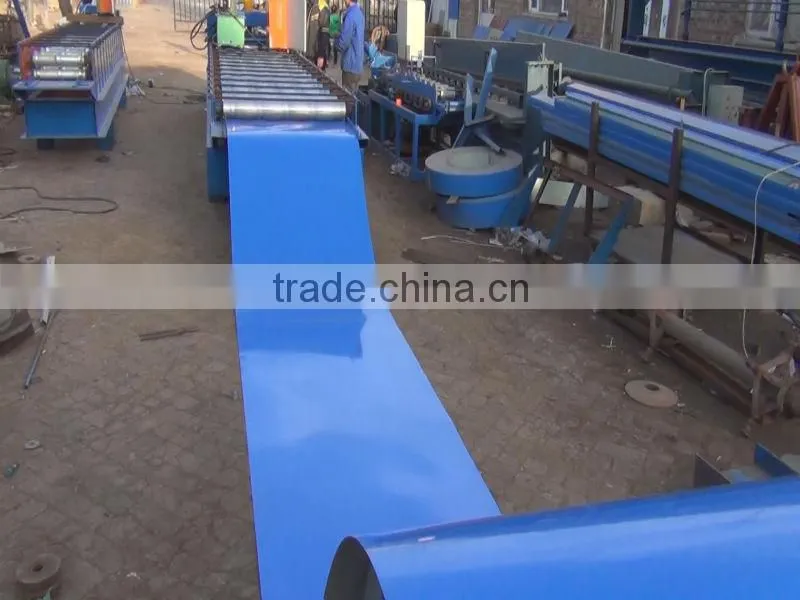

DX manual uncoiler.(roll forming machine price includs it)
1050-210-24 roll forming machine.1050-210-23 roll forming machine is the same item.
DIXIN roll forming machines are real things.We choose better raw materials and few of factories can make it.
For example the main frame,the thickness,the whole machine,the material and diameter of roller of shaft.
With 20-year professional engineers, QC system and profession of sprits,roll forming machine will be
more better.
Dark blue trapezoid color steel panel 1050-210-24.Small 840-210-24 size is available.

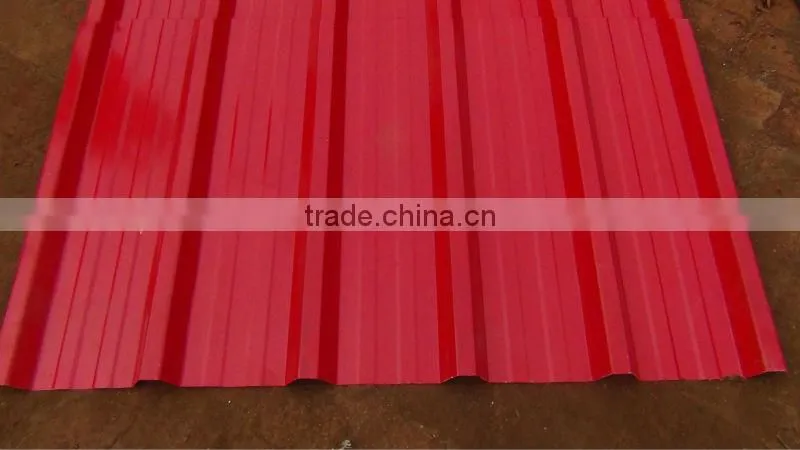

Red trapezoid color steel panel 1050-210-24.Small 840-210-24 size is available.

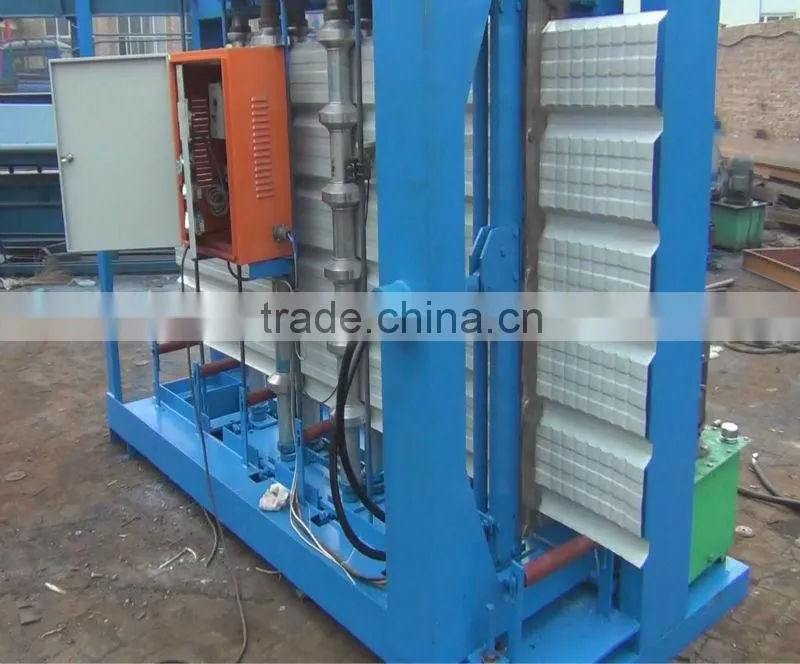

DIXIN ARCHING MACHINE
(the arching machine can be designed according to roll forming machine and
its panel shape)

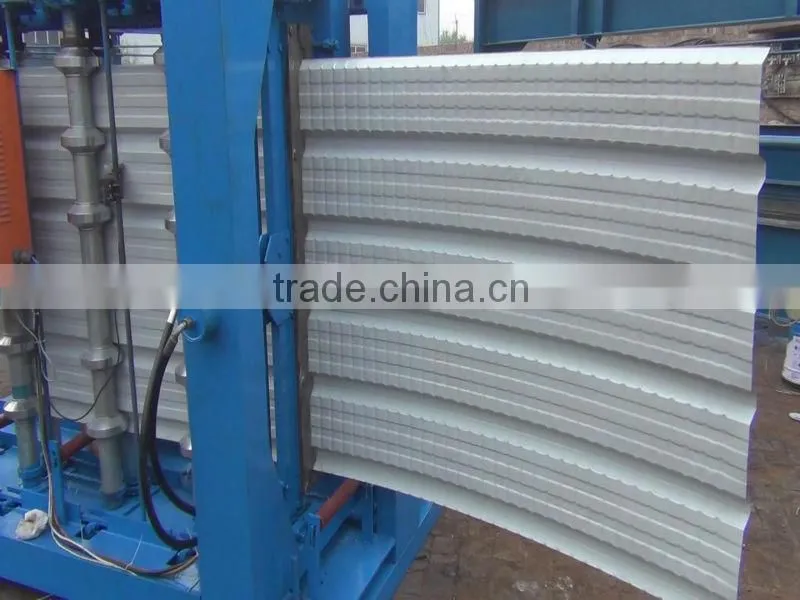

Arching sheet making machine is arching 1050-510-24 metal sheet

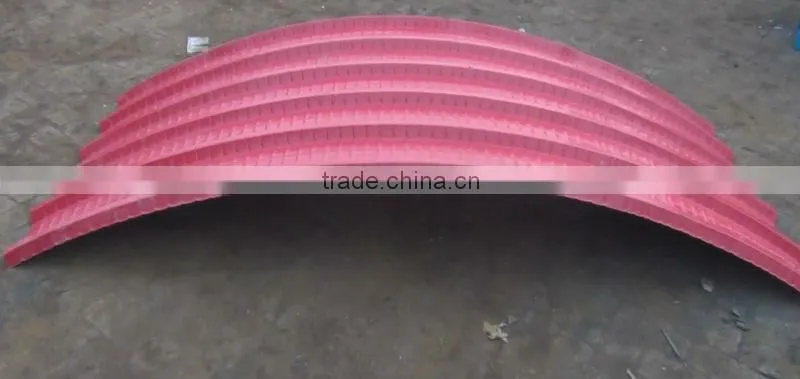

The finial product arch sheet

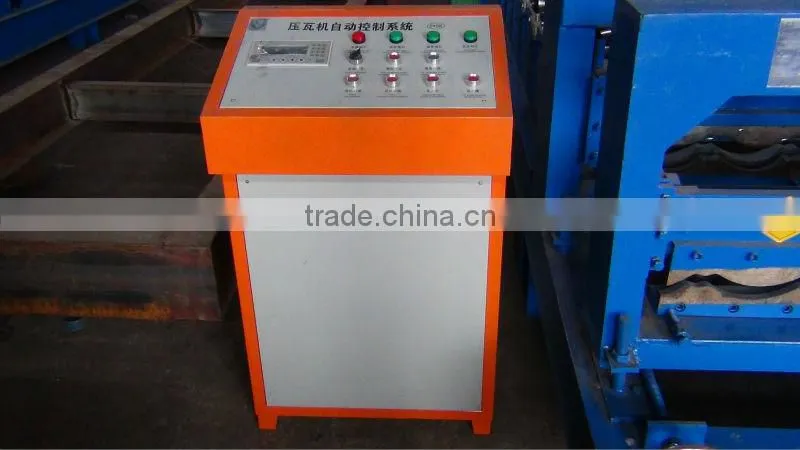

Durable,easy,exact PLC computer control system of arch sheet making machine.
Gurantee for one year for free,and lifelong technical support for its whole life.

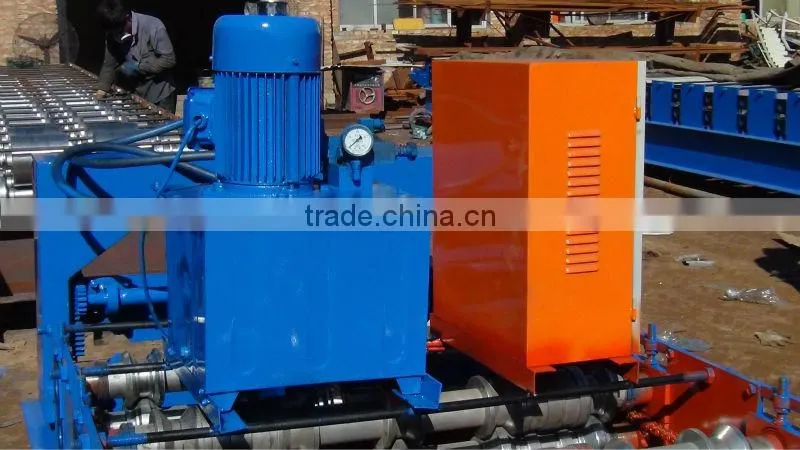

Safe and durable electric motor of arch sheet making machine.
3 KW or according to your and natural requirements.
Gurantee for one year for free,and lifelong technical support for its whole life.
other corrugated roll forming machine
and crimping machine
the rollers and feeding plate of corrugated wave sheet roll forming machine

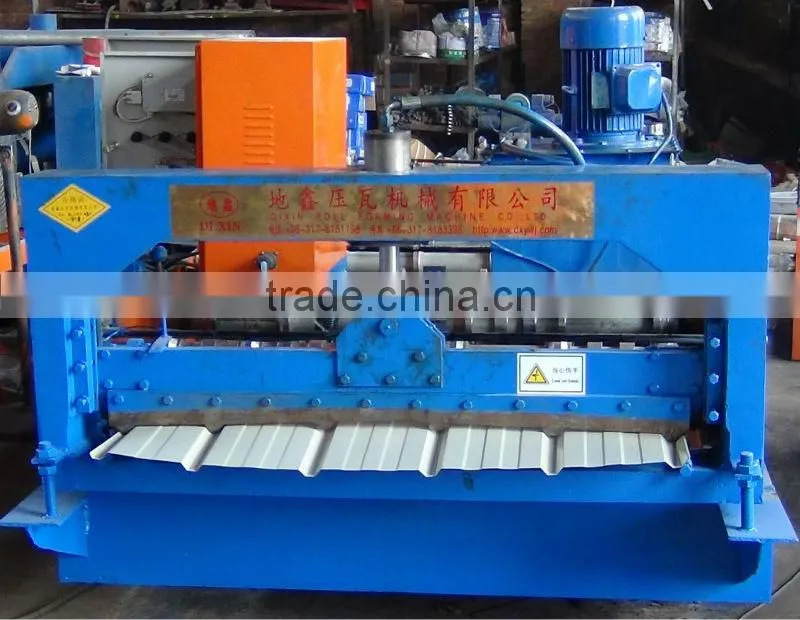

DIXIN 1050-210-24 arch roofing roll forming machine
Arch roofing roll forming machine is used for producing metal or colored steel arch sheet.
This kind of sheet panels looks beautiful,old-timely and noble.
They are widely used as the roof of garden like factory,hotel,exhibition center,villa,civil construction,ect.
consist of
1 uncoiler and its base,
2 coil sheet guiding equipment,
3 roll forming system,
4 hydraulic pressing equipment,
5 post cutting equipment,
6 hydraulic station,
7 controlling system,
8 supporter table.
9 If needed,a arching machine ia available for another fee.
Technical parameters:
(1) material: color steel sheet, galvanized sheet, aluminium sheet
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1200mm
(4) Effective width of the plate :1050mm
(5) Productivity :8-12m/min
(6) Roller steps :11 rows
(7) Roller material: 45# steel
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine: 12mm steel plate
(10)Main forming machine body : 300mmH steel
(11) Transmission chain:1050-210-24
(12) Cutting hydraulic systerm :the motor power is 3kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:5900mm*1300mm*1100mm
Processes:
Uncoiler—Roll forming machine—PLC system—Hydraulic system—Mold pressing machine-Post cut-arching
available if necessary
Equipment maintenance
Maintenance of arch sheet roll forming machine is easy.We recommend that you regularly feed lubricant
to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines
are properly connected before starting the machine, and at regular intervals, change the gear oil
and hydraulic oil.
Packaging
Our arch roofing roll forming machine is wrapped in a waterproof package
Service
We provide a one year warranty and lifelong technical support will be provided.
We can send our technicians to you to give you onsite training. The training period would be for no more than
one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of US50
Advantage
1 More than 20 years' professional engineer and designer
2 Direct factory price/cheap price
3 Good quality and quality gurantee for one year,lifelong technical support
4 Various kinds can be designed according to your requirements,including related
equipment,bending,cutting,roll forming,sandwich panel prooduction line machine.
5 Easy to ship and install.On-site training and guiding is available.
6 Kind and smile service
7.Trustworthy roll forming machine,trustworthy direct factory,trustworthy team work and business work.
Contact.
the arch sheet making machine you are interested in.
Please feel free to contact. A better quotation will be offered for comparision within 12 hours
