Specifications
1 DX durable used roofing equipment for sale in China2 attractive and smooth roof panel
3 good quality gurantee
4 cheap.
1.DIXIN 1050-25-210 roll panel size produced by
DIXIN 1050-25-210 durable used roofing equipment for sale in China
Detailed information:mm
| cover width | coil width | wave length | wave height |
| 1050 | 1200 | 210 | 25 |
Some of other panels' shape you may be interested in,
we can produce many kinds of panel shape.Just contact free.
2.DIXIN 1050-25-210 roll forming machine
Detailed information of 1050 durable used roofing equipment for sale in China
| material spec | colored steel sheet,galvanized steel sheet,aluminium sheet |
| thickness of coil sheet | 0.3-0.8 mm |
| material expand width | 1000mm 1200mm 1250mm |
| roller material | high grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | high grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm or as your requirement,the largest diameter is 95 mm |
| medium plate | 14 mm or as your requirement |
| main frame | 300 H/U steel |
| form,ing steps | 11 rows |
| productivity | 10-12m/min |
| main motor power | 3 KW |
| hydraulic station power | 3 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 5.8*1.3*1.0m |
| leak frame load bearing | 2.6 tons |
| hydraulic oil | 36# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |

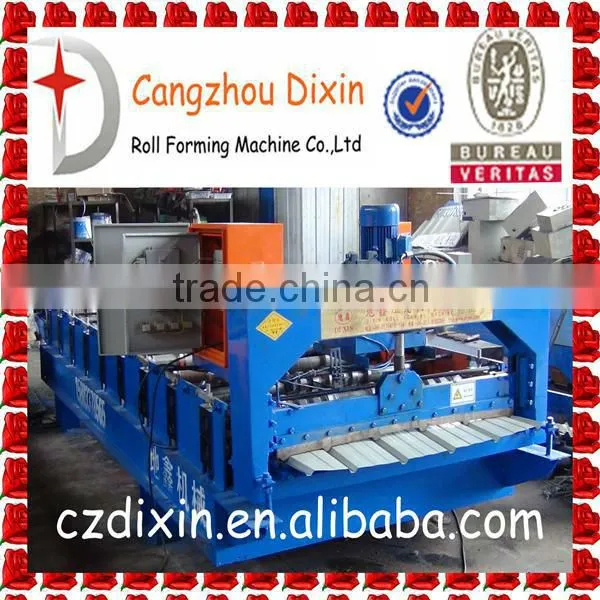

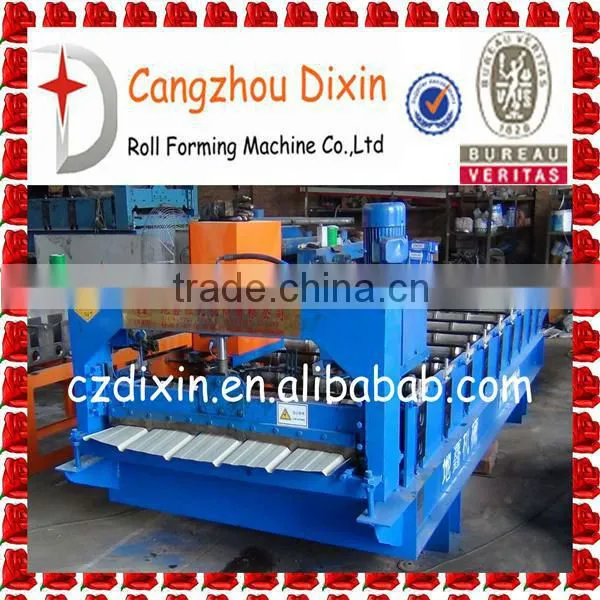

Several overview pictures of 1050 roll forming machine
3.Production line
A Manual decoiler
Manual decoiler
used to load coil
1 easy to operate
2 economical solution
3 max weighth 5 tons
4 max width 1250 mm
5 automatic uncoiler/decoiler available.
The pictures of automatic decoiler with a car of 10 tons.
B Guiding device
used to leveling the coil
C Rollers, used to form the plain sheet to corrugated roof sheet.
1 roller material :high grade NO.45 forged steel, with hard chrome plating on the surface of roller with thickness 0.05mm
2 diameter of roll:70mm or as your requirement
D Hydraulic cutting parts,used to cut the finish panel
E Output tables,used to receive finishing panels
F PLC computer control cabinet,used to set length,precision and
control producing.
4 Many types roof sheets for choosen.
Many kinds of machines available,just send a inquiry.
5 Packing and loading
detailed information:
1 Main forming machine and un-coiler is naked.
2 Tighten to container with steel wirerope and welded machine with container by angel iron.
3 PLC system and motor can be packed in waterproof plastic coverage if needed and necessary.
Loading and transport
6 maintance of equipment
1 |
Roll forming machine can be installed and work at a workshop for a long time use and low maintenance cost against rust from rain or water.Also keep the air flow to make it dry |
2 |
Lubricant should be feeded regularly to the machine gear,chain and moving parts to reduce friction. |
3 |
Check the power lines connected right before starting roll forming machine by clicking t he button |
4 |
Any inquiry about panel roll forming machine,just call us or e-mail us. A instant response and better advice will be available in 12 hours. If necessary,sevearl related technicans of forming machine will offer on-site service. TEL:0086-0317-8185598/086-151032779800 |
7 After -sale service
Sale ends ,not service (service system)
after-sale service |
one year warrantly and lifelong technical suport will be kind and effective provided. |
on-site service |
we can send our technicians to you to give you onsite training. The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD 50. |
8 Why us
| ADVANTAGE of company | direct factory in China,hebei,botou good color steel sheet better steel roll forming machine warm-hearted service quatity gurantee |
| PROFILE of company | Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping. |
| CONTACT |
ADD: Fuzhuang Development Zone,Botou City,Hebei Province,Chima. TEL:0086-0317-8185598/086-15132779800 FAX:0086-0317-8183398 |
9 Trade terms.
| PORT | FOB Tianjin port |
| PACKING | waterproof package |
| PAYMENT | 30%TT in advance and the balance will be payed after receiving the copy of B/L |
Your interested durable used roofing equipment for sale item,
contact us free.
