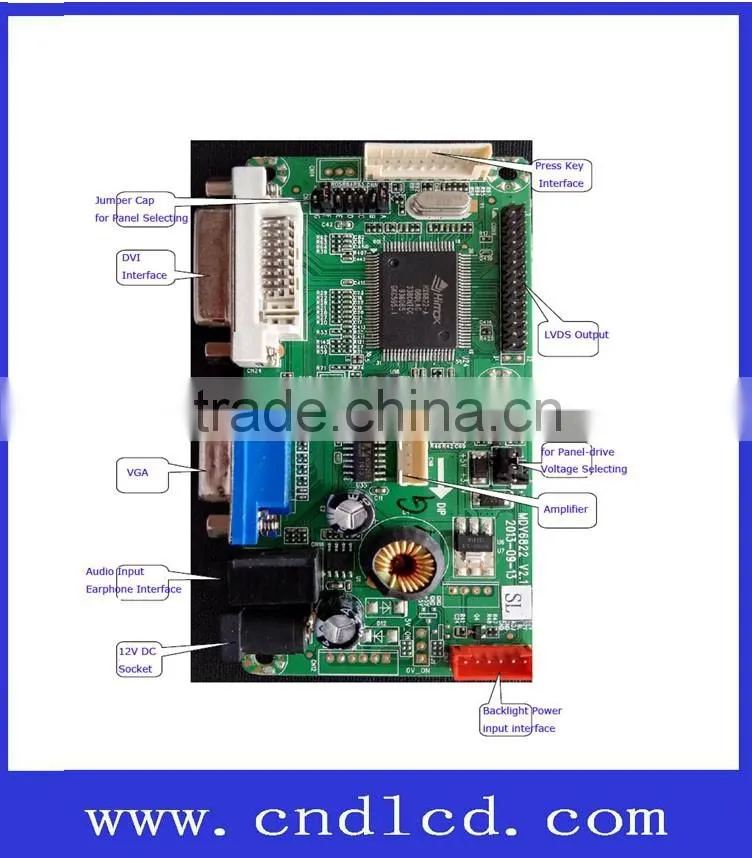

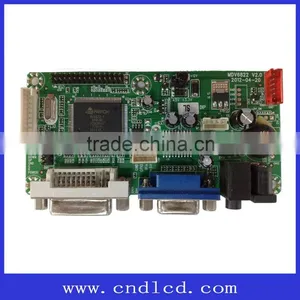

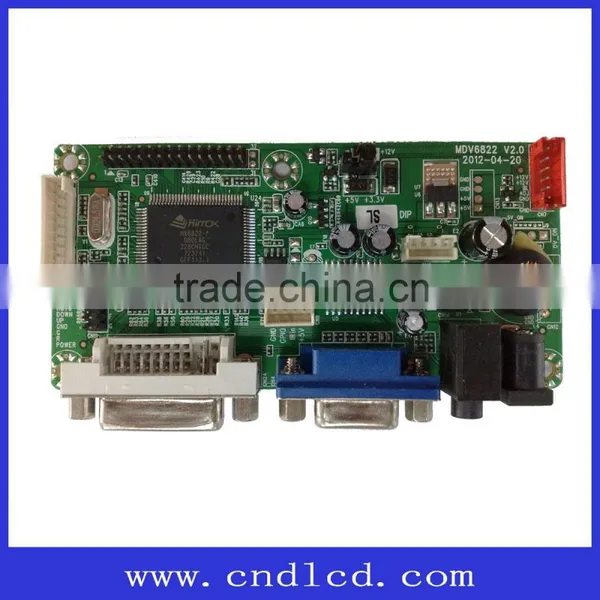

Product Name: OME 12V lcd/led monitor vga dvi controller board
Model No.: MDV6822 with Amplifier
General Description
This Board is mainly used for TFD LCD Panel for LCD Monitor, Advertising Machine or Digital Photo Frame. Max support Resolution WUXGA 1920x1200 point to point display. LVDS outputs max Full HD 1920x1200; Input Signal VGA R/G/B, and DVI, color reappearance 24 BIT. horizontal frequency is between 20 and 94.5HZ, field frequency is between 56 and 75HZ, with Synchronous automatic detection; the Synchronous way requires the Synchronous singal of separation of Horizontal & Field
Its Also with Audio power amplifier function, output power 2Wx2. Volume can be controled by press key.
Product Specification
| Feature | Specification |
| input signal | Analogy RGB(0.7Vp-p), Horizontal and vertical sync |
DVI:TMDS | |
| Support model : | DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, |
| Color : | 24bit |
Horizontal sync |
30-94.5KHz |
Vertical sync |
56-75Hz |
| Output signal: | Dual LVDS standard |
| Control keypress: | POWER,BRI+,BRI-,AUTO,NENU,LED_R, |
| OSD menu: | Brightness, contrast, auto-correction, phase, clock, horizontal |
Power supply |
12 V(+/-0.6V)(DC) Without the amplifier can be changed |
Power supply |
Normal operating mode |
| Size: | 107mm(L)×52mm(W)×16mm(H) |
power supply |
standby power consumption<1W |
A. Who we are? what's our Brand?
We are CND Electronic Technology (ShenZhen) Co., Ltd.
is our registered Brand.
B. What's our core product and services?
AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions
C. What are our product applied in, and who is our Customer?
D. What are our capability and advantages?
6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
CND RD Team
Quality Assurance
Workshop and equipments
CND Partners
CND Certificates: ISO, Patent, Hi-Tech
is the best choice for LCD/LED main board solutions, with over 10 years professional experiences both in hardware and software design, she has gained very good reputation during cooperation with biggest clients from financial , rail transit, and industrial etc. Quality is our culture, Time is gold, Service is our soul, to be with us your business is safe, your money is safe choose CND, choose a mutual win-win partner.
