DWM Copeland Piston Air Compressor D4DF-100 X,D4DF-1000 DC
US$ 1,000 - 10,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Copeland
Model Number:
D4DF-100 X
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Refrigeration Compressor D4DA-100XUS$ 1,000 - 10,000MOQ: 1 Unit -
20hp Dwm Copeland Compressor D4DA-2000US$ 1,000 - 10,000MOQ: 1 Unit
-
20hp Dwm Copeland Compressor D4DA-200 XUS$ 1,000 - 10,000MOQ: 1 Unit
-
15hp Copeland Compressor,copeland R134a Compressor D4DL-1500 DC,D4DL-150 XUS$ 1,000 - 10,000MOQ: 1 Unit
-
R407C DWM Copeland Compressor,copeland R407c Compressor D4DH-2500,D4DH-250XUS$ 1,000 - 10,000MOQ: 1 Unit
Place of Origin
Germany
Brand Name
Copeland
Model Number
D4DF-100 X
Type
Other, Refrigeration Compressor, Semi-hermetic piston compressors
Application
Refrigeration Parts
Certification
Other, RoHS
Semi-hermetic DWM Copeland Compressor all models
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
1,R-22,R134A,R407C,R404A/R507
2,from 5HP to 80HP
3,low price & high quality
Type: Semi-hermetic piston compressors
Producer: Copeland
Series: DISCUS
Model: D4DF-100 X
Technical data
| Cylinder count: | 4 | |
| Displacement [m³/h]: | 56 | |
| Weight [kg]: | 195 | |
| Oil charge [dm³]: | 4,5 | |
| Max. operating current [A]: | 21 | |
| Locked rotor current [A]: | 104 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| milimeters | inches | ||
| Suction line: | 1 5/8" | ||
| Discharge line: | 1 1/8" |
Standard equipment
- oil pump
- oil sight glass
- Rotalock valves
- thermal protections
Optional equipment
- additional header cooling
- oil pressure switch
- crankcase heater
- unload starting
- capacity control

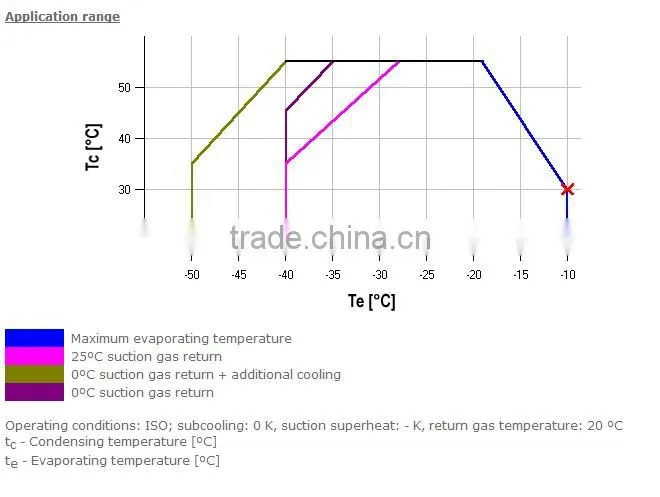

Application
-
high, medium and low temperatures
(R22 from 12,5 ºC to -50 ºC)
(R404A/R507 from 7 ºC to -50 ºC)
(R134a from 12,5 ºC to -20 ºC)
(R407A from 7 ºC to -45 ºC)
Capacity : R404A/R507
Dimensions:
| L | 680 | mm |
| B | 535 | mm |
| H | 605 | mm |
Pictures:
