Copeland Compressor ZRT Series in Tandem ZRT96K3E-TFD
US$ 500 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Copeland
Model Number:
ZRT96K3E-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copeland Compressor ZRT Series in Tandem ZRT122KCE-TFDUS$ 500 - 2,000MOQ: 1 Unit -
Copeland Compressor ZRT Tandem Series ZRT144KCE-TFDUS$ 500 - 2,000MOQ: 1 Unit
-
Copeland Compressor ZRT Tandem Series ZRT162KCE-TFDUS$ 500 - 2,000MOQ: 1 Unit
-
Tandem Type Copeland Compressor ZRT250KCE-TFDUS$ 1,000 - 4,000MOQ: 1 Unit
-
Copeland Tandem Compressor ZRT288KCE-TFDUS$ 1,000 - 4,000MOQ: 1 Unit
Place of Origin
United States
Brand Name
Copeland
Model Number
ZRT96K3E-TFD
Type
Other, Refrigeration Compressor, Hermetic scroll compressors - tandem
Application
Refrigeration Parts
Certification
Other, RoHS
Copeland Compressor ZRT series in Tandem
1,Tandem type
2,R134a, R407C,R404A/R507
3,All models with low price & high quality
1,Tandem type
2,R134a, R407C,R404A/R507
3,All models with low price & high quality
Type: Hermetic scroll compressors - tandem
Producer: Copeland
Series: ZRT
Model: ZRT96K3E-TFD
Technical data
| Compressors: | 2 x ZR48K3E-TFD | |
| Displacement [m³/h]: | 23 | |
| Net weight [kg]: | 62 | |
| Oil charge [dm³]: | 2,8 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 1 1/8" | ||
| Discharge connection with supplied sleeve: | 3/4" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- external crankcase heater (70W)
Application
- medium temperatures (from 7 ºC to -30 ºC)
- refrigerants R134a, R407C and R404A/R507

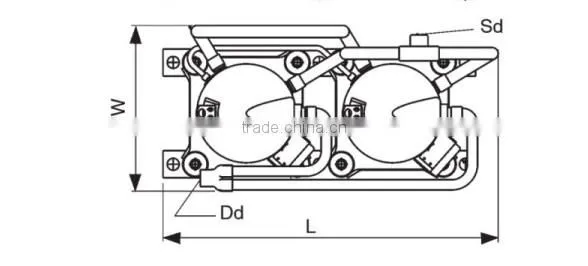

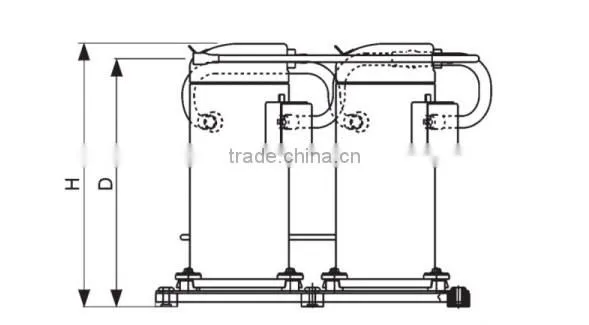

Drawing:
| H | 464 | mm |
| D | 440 | mm |
| L | 626 | mm |
| W | 297 | mm |
Pictures:
