R404A/R507 Copeland Scroll Compressor ZF48K4E-TWD
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Copeland
Model Number:
ZF48K4E-TWD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R410a Copeland Scroll Compressor ZP16KSE-PFZUS$ 200 - 2,000MOQ: 1 Unit -
R410a Copeland Compressor ZP24KSE-PFZUS$ 200 - 2,000MOQ: 1 Unit
-
Copeland Compressor ZP Series ZP24KSE-TFMUS$ 200 - 2,000MOQ: 1 Unit
-
ZP29KSE-PFZ Copeland Compressor ZP SeriesUS$ 200 - 2,000MOQ: 1 Unit
-
ZP29KSE-TFM Copeland Scroll Compressor ZP SeriesUS$ 200 - 2,000MOQ: 1 Unit
Place of Origin
United States
Brand Name
Copeland
Model Number
ZF48K4E-TWD
Type
Other, Refrigeration Compressor, Hermetic Scroll Compressor
Application
Refrigeration Parts
Certification
Other, RoHS
Copeland Hermetic Scroll Compressor ZF Series
1,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4E
2,R404A/R507
3,Low price & Original
1,ZF18K4E,ZF24K4E,ZF33K4E,ZF40K4E,ZF48K4E
2,R404A/R507
3,Low price & Original
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZF
Model: ZF48K4E-TWD
Technical data
| Displacement [m³/h]: | 42,8 | |
| Sound power [dBA]: | 83 | |
| Sound power with sound shell [dBA]: | 73 | |
| Sound pressure level [dB]: | 72 | |
| Net Weight [kg]: | 112 | |
| Gross Weight [kg]: | 119 | |
| Oil charge [dm³]: | 4,1 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 22,6 | |
| Minimal lowside temperature [°C]: | -35 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 2 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 198 | |
| Max. operating current [A]: | 30,6 | |
| Winding resistance [Ω]: | 0,7 |
Connections
| inches | |||
| Suction Rotolock valve connection: | 2 1/4" | ||
| Discharge Rotolock valve connection: | 1 3/4" | ||
| Suction connection with supplied sleeve: | 1 5/8" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- Economizer - plate heat exchanger
- current relay
- external crankcase heater (70W)

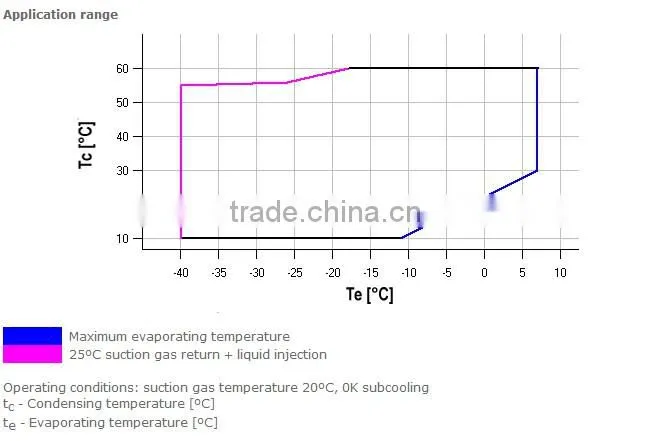

Application
- medium and low temperatures (from 7 ºC to -45 ºC)
- refrigerants R404A/R507

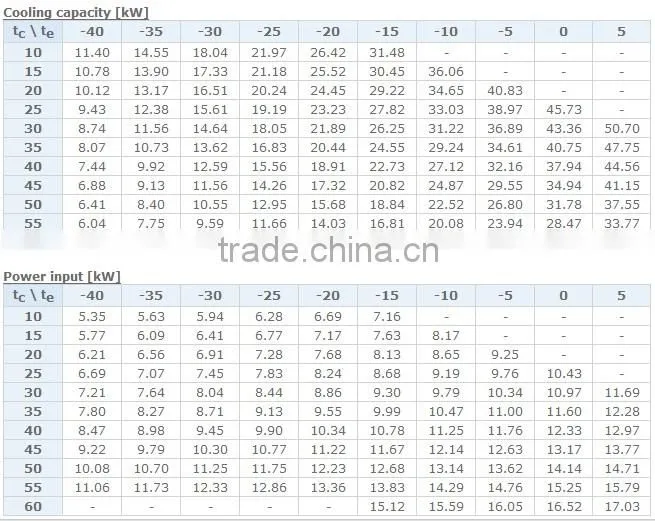

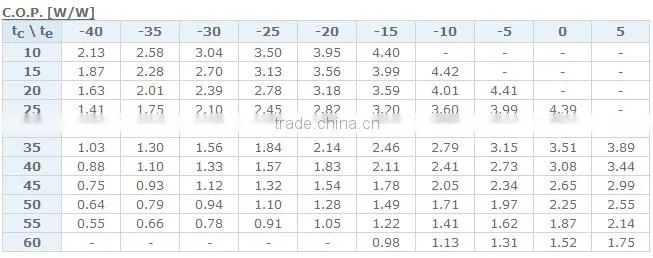

Capacity : R404A/R507

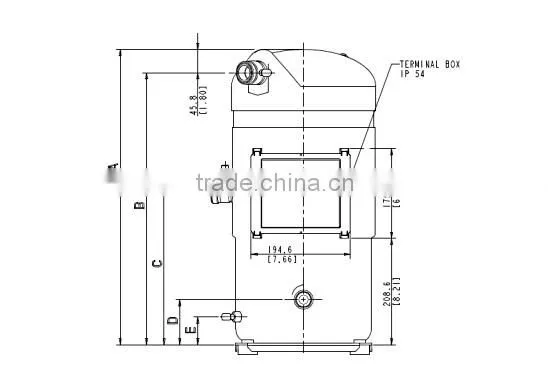

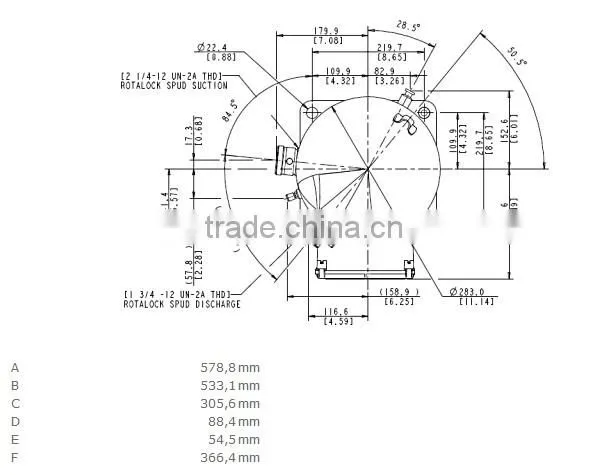

Drawing:
Pictures:
