Copeland Scroll Compressor ZP Series ZP31KSE-PFZ
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
United States
Brand Name:
Copeland
Model Number:
ZP31KSE-PFZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ZP42KSE-PFZ Hermetic Scroll Copeland CompressorUS$ 300 - 2,000MOQ: 1 Unit -
ZP Copeland Scroll Compressor ZP42KSE-TFMUS$ 300 - 2,000MOQ: 1 Unit
-
ZP Series Copeland Compressor All Models ZP54KSE-PFZUS$ 300 - 2,000MOQ: 1 Unit
-
ZP Series Copeland Compressor All Models ZP54KSE-TFMUS$ 400 - 2,000MOQ: 1 Unit
-
ZP Series Copeland Compressor For Sale ZP72KCE-TFDUS$ 400 - 2,000MOQ: 1 Unit
Place of Origin
United States
Brand Name
Copeland
Model Number
ZP31KSE-PFZ
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Hermetic Scroll Copeland Compressor ZP Series
1,ZP16KSE,ZP24KSE,ZP29KSE,ZP31KSE,ZP36KSE,
2,Use R410A
3,Low price & Original
1,ZP16KSE,ZP24KSE,ZP29KSE,ZP31KSE,ZP36KSE,
2,Use R410A
3,Low price & Original
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZP
Model: ZP31KSE-PFZ
Technical data
| Displacement [m³/h]: | 5,1 | |
| Sound power [dBA]: | 66 | |
| Sound pressure level [dB]: | 55 | |
| Net Weight [kg]: | 22,8 | |
| Oil charge [dm³]: | 0,7 | |
| Maximum high pressure [bar]: | 43 | |
| Maximum standstill pressure [bar]: | 28,0 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 1 |
Electrical data
| Power supply [V/~/Hz]: | 220-240V/1/50Hz | |
| Locked rotor current [A]: | 67,0 | |
| Max. operating current [A]: | 17,1 | |
| Winding resistance [Ω]: | 1,2 | |
| Start winding resistance [Ω]: | 1,2 |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 3/4" | ||
| Discharge connection with supplied sleeve: | 1/2" |
Standard equipment
- screwed sight glass
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- external crankcase heater (70W)
Application

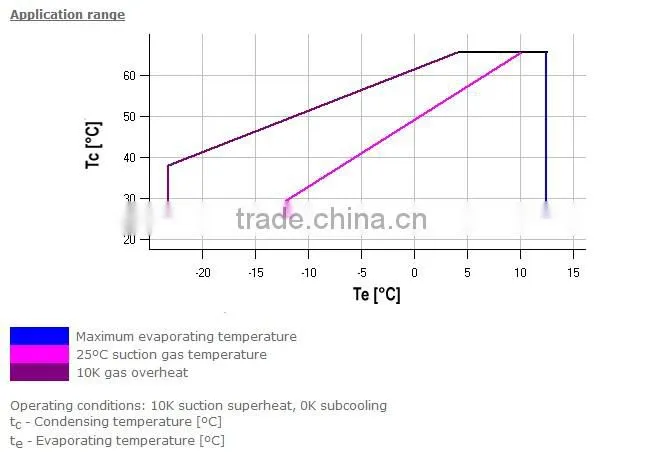

- medium temperatures (from 7 ºC to -30 ºC)
- refrigerant R410A

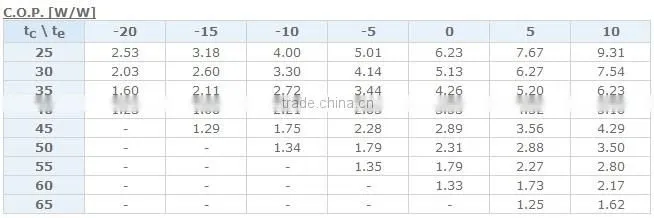

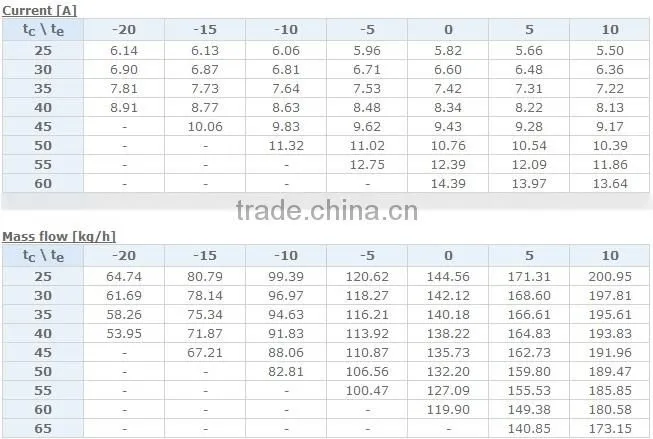

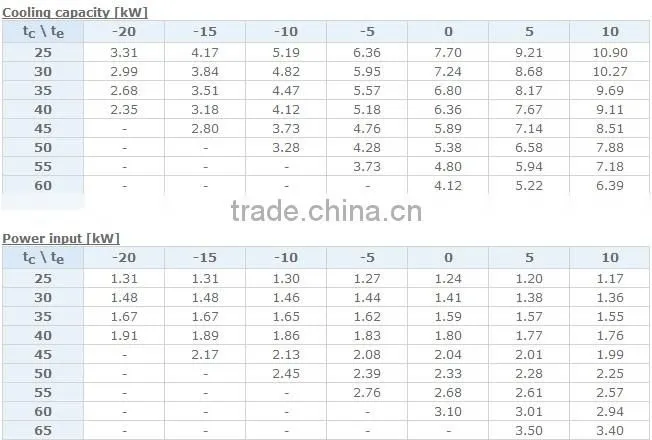

Capacity : R410A
Drawing:
Pictures:
