Copeland Compressor ZH Series ZH15K4E-TFD
US$ 200 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Belgium
Brand Name:
Copeland
Model Number:
ZH15K4E-TFD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
R134a Copeland Compressor ZH Series ZH15K4E-PFJUS$ 200 - 2,000MOQ: 1 Unit -
ZH Series Copeland Scroll Compressors ZH21K4E-TFDUS$ 300 - 2,000MOQ: 1 Unit
-
ZH Series Copeland Scroll Compressors ZH21K4E-PFJUS$ 300 - 2,000MOQ: 1 Unit
-
Piston ZR Series Copeland Compressor ZR11M3,ZR12M3,ZR16M3,ZR19M3US$ 845 - 1,085MOQ: 1 Unit
-
ZR Copeland Compressor Piston ZR11M3E,ZR12M3E,ZR16M3E,ZR19M3EUS$ 945 - 1,185MOQ: 1 Unit
Place of Origin
Belgium
Brand Name
Copeland
Model Number
ZH15K4E-TFD
Type
Refrigeration Compressor
Application
Refrigeration Parts
Certification
CE
Hermetic Scroll Copeland Compressor ZH Series
1,ZH15K4E,ZH19K4E,ZH21K4E,ZH26K4E,ZH30K4E
2,R134A,R407C
3,Low price &Original
Type: Hermetic scroll compressors
Producer: Copeland
Series: ZH
Model: ZH15K4E-TFD
Technical data
| Displacement [m³/h]: | 5,9 | |
| Sound power [dBA]: | 71 | |
| Sound pressure level [dB]: | 60 | |
| Net Weight [kg]: | 23 | |
| Gross Weight [kg]: | 26 | |
| Oil charge [dm³]: | 1,3 | |
| Maximum high pressure [bar]: | 32 | |
| Maximum standstill pressure [bar]: | 20 | |
| Maximum lowside temperature [°C]: | 50 | |
| PED category: | 1 |
Electrical data
| Power supply [V/~/Hz]: | 380-420V/3/50Hz | |
| Locked rotor current [A]: | 26 | |
| Max. operating current [A]: | 5 | |
| Winding resistance [Ω]: | 7,1 |
Connections
| inches | |||
| Suction connection with supplied sleeve: | 3/4" | ||
| Discharge connection with supplied sleeve: | 1/2" |
Standard equipment
- Rotalock connections
- Schraeder connection
- assembly washer
- discharge temperature control
Optional equipment
- external crankcase heater (70W)

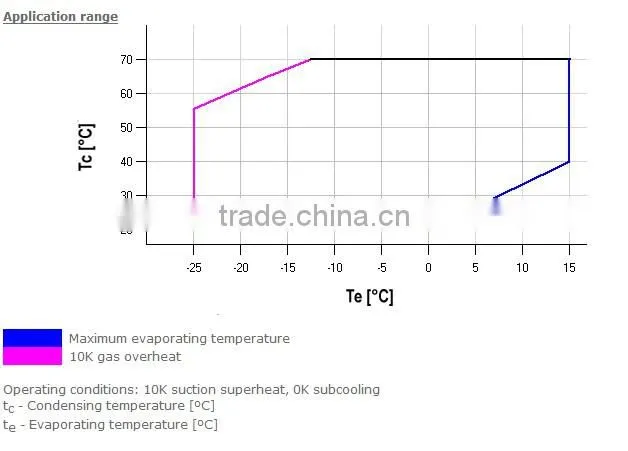

Application
- medium temperatures (from 7 ºC to -30 ºC)
- refrigerants R134a and R407C

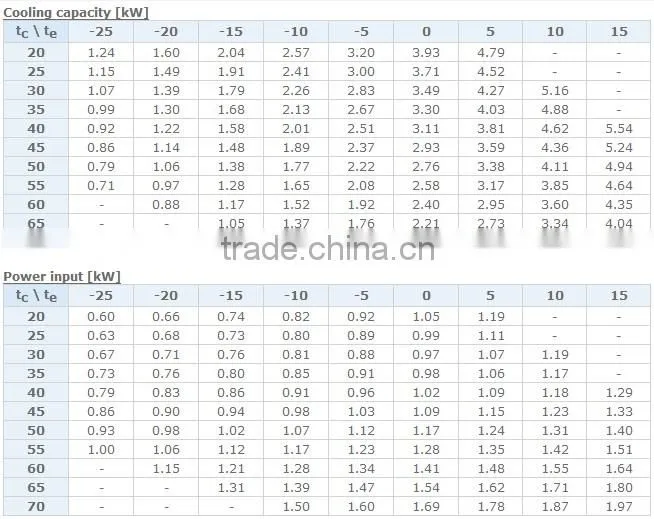

Capacity : R134a,R407C

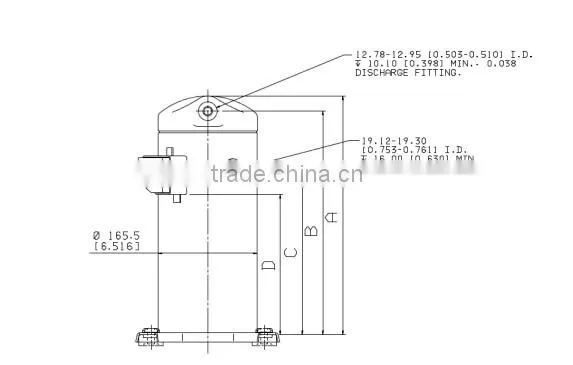

Drawing:

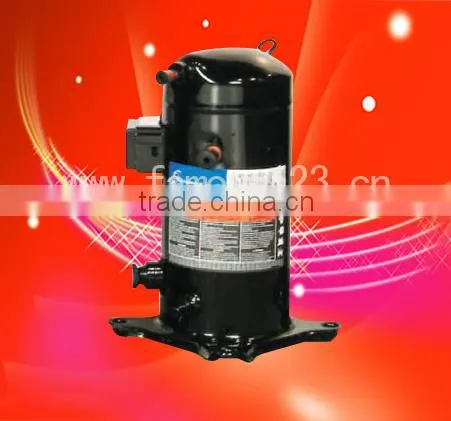

Pictures:
