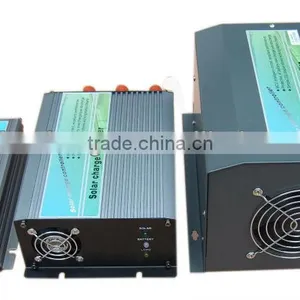

Help Center30A 12V/24V Auto Identification PV Charge Controller
Related Products
-
PWM Solar Controller Solar Charge Controller Solar Panel ControllerUS$ 45.2 - 48.5MOQ: 5 Pieces -
Digital Light Controller 30A PWM Working ModeUS$ 45.2 - 48.5MOQ: 5 Pieces
-
12V/24V Automatic Detection Waterproof Solar Charge Controller ExporterUS$ 45.2 - 48.5MOQ: 5 Pieces
-
30A/40A/60A/80A Solar Controller for Home System With Output 12V/24V/48VUS$ 45.2 - 48.5MOQ: 10 Pieces
-
Bulk Solar Charge Controller Solar Regurator Factory ManufacturerNegotiableMOQ: 10 Pieces
Specifications
1.30A solar power system controller2.12V/24V/ 48V Auto identification
3.PWM control model
4.Complete protection

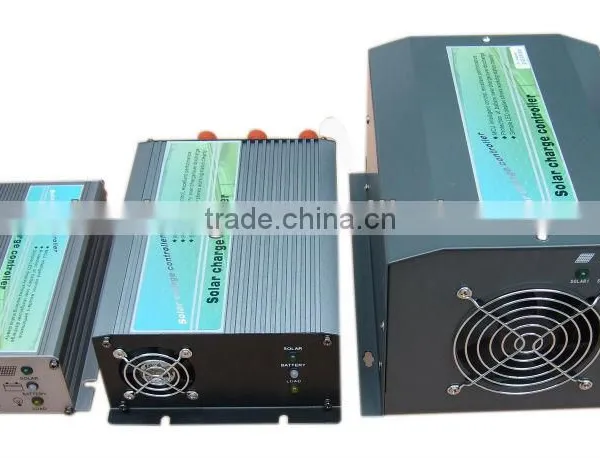

30A 12V/24V Auto Identification PV Charge Controller
1.Specification:
Total rated charge current 30A
Total rated load current 30A
System voltage 24V/12V AUTO
Overload, short circuit protection 1.25 times the rated current for 60 seconds, 1.5 times the rated current for 5 seconds overload protection actions
>3 times the rated current of short circuit protection
Empty load loss <6mA
Charging circuit voltage drop Not more than 0.26V
Discharge circuit voltage drop ≤0.15V
Overpressure protection 17V,X2/24V;
Operating Temperature Industrial:-35°Cto+55°C
Enhance the charging voltage 14.6V;X2/24V(Duration:10min)(Discharge only if there have been calls)
Enhance the charging voltage 14.4V; X2/24V;(Duration:10min)
Float voltage 13.6V; X2/24V;(Duration:Voltage down to return to action until the charge)
Charge return voltage 13.2V X2/24V
Temperature added -5mV/°C/2V(Upgrade, direct charge, float, charge return circuit compensation);
Voltage voltage 12.0V; X2/24V
Put voltage over 11.1V( The initial discharge rate compensation amendment put voltage (load voltage);X2/24V
Overdischarged back voltage 12.6V;X2/24V
Control Charging pulse width modulation to PWM
2.Accessories and application:
Convenient wiring, simple installation without Day-to-day maintenance, service life is up to 20 years
Warranty: 1 year, but has no obvious dismantling machine or high breakdown.
2 controller is of low-voltage, project installation shall comply with the principles of safety, avoiding personal safety accidents.
