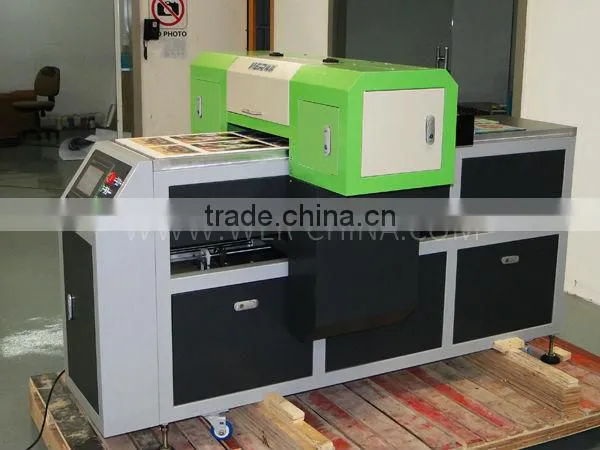

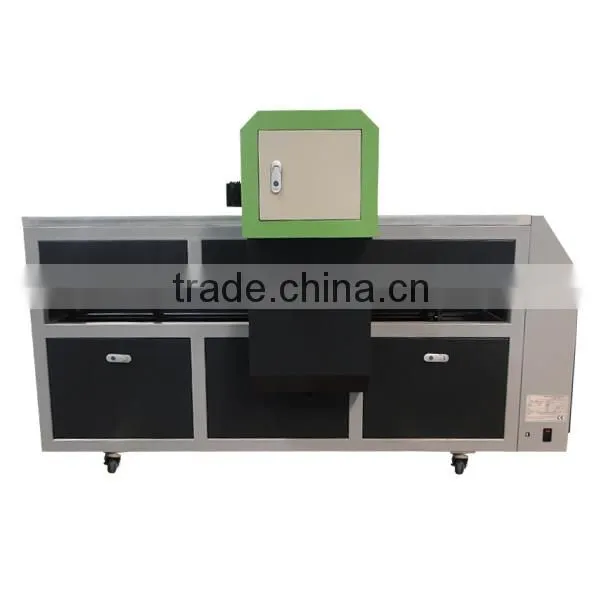

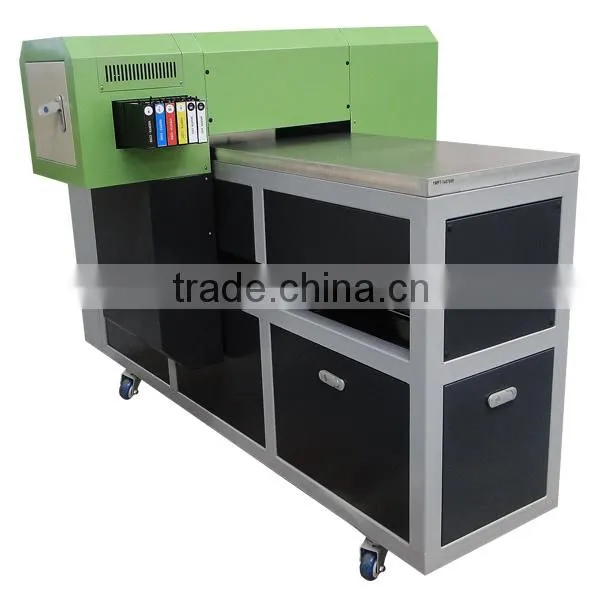

2016 hot selling WER dual heads cell phone case printer
16.5''*47''(42cm*120cm) ED4212UV A2 flatbed uv printer
| Printer Model | WER-ED4212UV |
| Max Printing size | 420*1200mm |
| No. of print heads | 2*DX5 |
| Material's Height | 15CM max. |
| Print resolution | 5760*2880dpi |
| Ink type | UV LED curing ink |
| Ink channel | 8 color (4-CMYK, 4 White) 180 nozzles/ color. Optional dual CMYK. |
| Moving method | Printhead moving |
| Printing interface | USB 2.0 high speed interface & 100 Base-T Ethernet interface |
| Printing direction | Smart Bi-directional Printing Mode |
| Printing speed | 4 pass 120 seconds/A4 size |
| 6 pass 160 seconds/A4 size | |
| 8 pass 200 seconds/A4 size | |
| 12pass 240 seconds/A4 size | |
| Lamp type | LED Lamp (saving energy and environmental friendly) |
| Languages | English, Chinese. |
| Applicable industry | Rigid PVC board, glass, plastic, organic board, leather, rubber, special paper, metal, wood, porcelain, PVC, ABS, acrylic, aluminum, iron sheet, |
| Printing method | Drop on Demand (non-contact micro piezoelectric ink-jet printing technology; micro piezoelectric printing technology; VSDT; intelligent nozz |
| Power consumption | 136 W/ Hour. |
| Ink consumption | 10 ML/SQM. |
| Auto adjustment function | Nozzle automatic detection; print head automatic aligning |
| Height adjustment | Auto Sensor |
| Normal working environment | Temperature 10-35Celsius Humidity 20-80RH |
| Power/ Voltage | About 75W / 110V/220V 50-60HZ |
| Operational software | Compatible |
| Machine configuration | USB line; driving software; power line; instruction book; washing and ink-joiner tool |
| Operation system | Windows 2000 / XP / WIN7/ Vista, etc. |
| Media feeding system | Auto or Manual |
| Packing & Delivery: | |
| Gross weight | 300KG |
| Packing | To be packed with Timber with fumigation certificate |
| Packing Size | 206*130*150cm |
| MOQ | One set per order |
| Delivery | 7 working days after receiving the deposit |
| Payment Terms | T/T; 40% first, the balance against B/L's copy; L/C, Escrow, Paypal etc. |
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
DX5 Printhead
Instruction: DX5, Resolution: 1440DPI
Color: 4 colors
Print mode: 4, 6, 8, 12 Pass
A: Operators need to make antistatic treatment, please wear the Anti-static devices if permission, to prevent the high static load from burning the circuit board inside printhead
B: During installation, try not to directly touch the surface of printhead
Mainboard
Instruction: The mainboard and adapter board for controlling the printing of dual DX5 print heads
Notes:
A: Please connect the Ground Circuitry when installation
B: Please turn off power first, then plug or pull out connector of wire
Screen panel
Introduction: Contain some control button, like control the movement of X axis, Y axis and Z axis
Notes: A. Do not touch the surface with sharp items
B. Please take care of the screen when operating
Cartridges
Introduction: 440ml single color cartridge
Notice: Turn on the air hole when printing
Please do not mix different color ink for printing
LED UV Lamp
Introduction: air cooling system LED UV LAMP
Tips: Please turn off the power if any problem happened on the fan Clear the ink or dust on surface of the lamp and the entrance of the fan
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
1.One year warranty
You can discuss operation and maintenance with our technician online support service by Skype, MSN etc. Remote control will be provided upon request.
2. Free exchange of new components
Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.
3. Free online consultation
The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.
4. Free onsite installation and training
If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it
Please feel free to contact Tom for prices and pics.
Viber/mobile/whatsapp/wechat: +8618302108267; skype wer_sales04
