Specifications

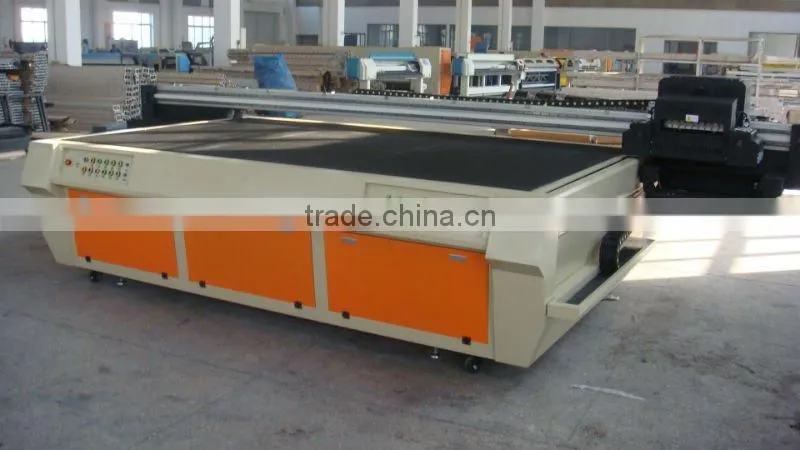

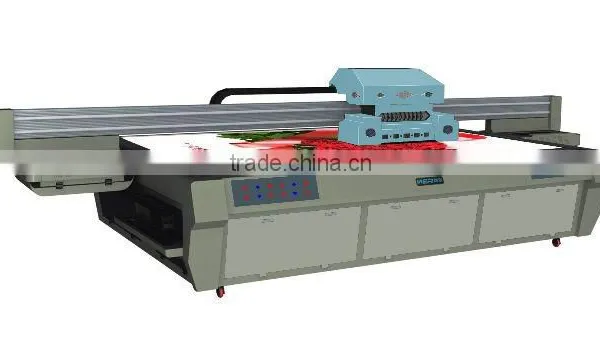

UV LED Flatbed Printer Epson head or Seiko/Spt255-12pl,print on rigid PVC board, ceramic tiles, glass with 5 & 7 colour
UV LED Flatbed Printer ,UV flatbed printer with white color ,quality plate or label making on rigid materials.
UV flatbed printer WER-S3821UV enhance productivity at shortest time by directly digital printing with minimum human labor. Realistic photo color provide all the needs for campaigns including
POP, banners, house decoration, arts etc.
- Offer versatile function for professional market like custom made gifts or decoration
- Provide fast and cost effective sample making on cardboard or corrugated paper.
- A huge breakthrough of digital printing, both soft roll material and rigid material are acceptable
- UV curing ink features more stable printing, more vivid color ,strong adherence and environmental protection, no odor
Print Technology |
UV Curing Drop-on-demand Piezoelectric |

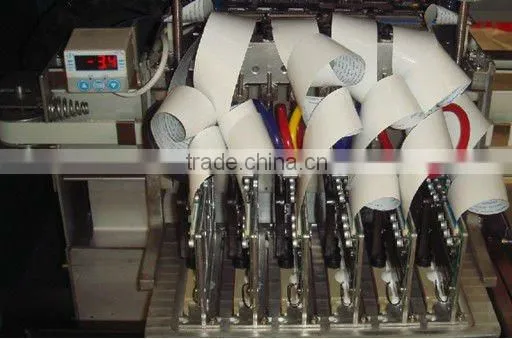

No. of Print Head |
5/7 heads Seiko Spt255-12pl (10, 14 heads are also available) |
Color |
CMYK+W & CMYK LC LM +W |
Ink characteristics |
UV Curing ink |
Ink reservoir |
Refillable on the fly while printing |
Resolution Options |
360*360dpi, 360*540dpi, 360*720dpi, 720*720dpi & 720*1440dpi |
Printing speed |
5 / 7 Pieces |
Standard quality: 30m2/H | |
High quality: 20m2/H | |
Ultra quality: 10m2/H | |
Max media size |
3.8m*2.1 m |
Drying system |
UV lamp (LED lamp is for option) |
Locating Mode |
Servo Driver/Servo Motor |
Height of Print-head |
1mm-10mm above media, Adjustable |
Print head controls |
Print head temperature and voltage are software adjustable |
Ink delivery system |
Negative pressure ink supply system , Main ink case 1L/color |
Media Handle |
Sheet to Sheet handling |
Media type |
Rigid PVC board, ceramic tiles, glass, marble, granite, wood, sheet metal; Roll to roll includes paper, PVC vinyl, fabrics and tarpaulin Etc |
Linear Rail |
THK / HLWIN |
Print head maintenance facility |
Totally anti-light, daily maintenance and print heads over night |
Color management |
ICC based color, adjustment curves, density adjustment |
Interface |
USB 2.0 |
Print Mode |
Bidirectional Printing |
File format |
TIFF, JPEG, Postscript 3, EPS, PDF Etc. |
Rip software |
Photoprint 6th (Window 2000, Window XP Pro SP2) or Photoprint 10 |
Power Supply |
50HZ/60HZ, 220V(±10%)>15A |
Operation Environment |
Ambient temperature: 20-30, Relative humidity: 40-70% |

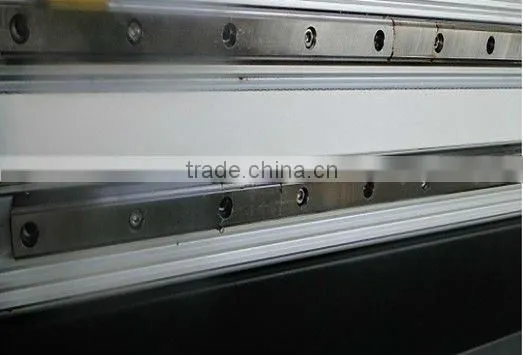

Double liner guider system guarantee the reliable and precise running of carriage.

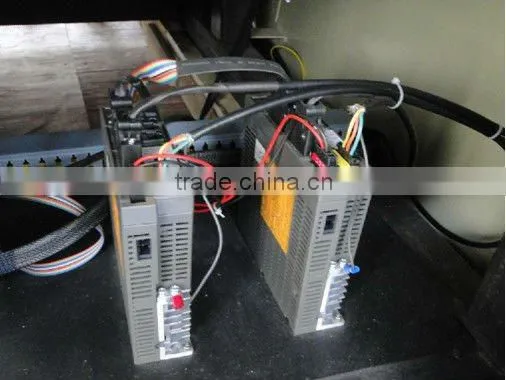

Adopt imported Japan AC servo motor system for X Y axis to ensure stable performance,
durable working and high anti-resistance performance.

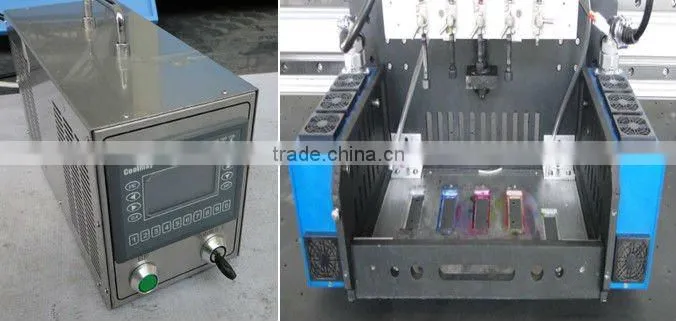

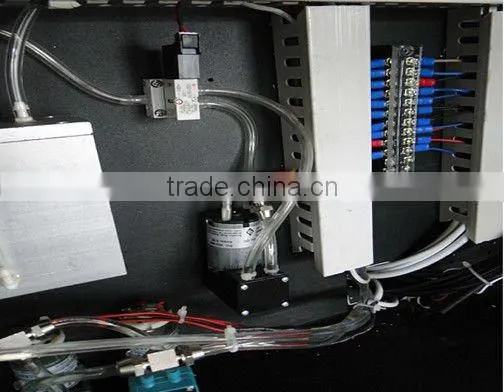

Imported quality negative pressure air pump and 4-way valve system guarantee 24 hours no-stop working
Independent white ink inner cycling system solve the problem to easily generate sedimented.
Intelligent LCD negative pressure system is easy to be adjusted by valve .
Distance between working platform and print-heads can be adjusted from 1mm minimum to 8cm maximum.
LED UV lamp for optional, individual LED UV lamp power supplying system features
Long lasting useful life, less power ,fast drying and energy saving ,more the individual
Equipment may avoid disturbance with printer system.
Line & wave printing system can be chose in software.
