Name: DVI and KVM/Video extension and switching equipment
Video /Audio/Data signal to fiber media converter
SDI fiber optic transmission equipment
Features
« 16-ch unidirectional HD-SDI video with embedded audio over one fiber
« Range from 19.4Mb/s to 1.485Gb/s
« SMPTE 292M (1.485Gb/s) clock recovery
« Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
« Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI (270Mb/s) standard
« Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
« 150m automatic cable equalization, allthe1.485 Gb/sratebelow(Belden 1694A)
« Optional network management system
« LED status indicators monitor the critical parameters
« Optional network system
« Support hot swap
« Support stand-alone, 1U rack mount and 4U rack mount
Applications
« Remote OB Van/Truck Video Feeds
« Broadcast Studio Camera Feeds
« Long-haul Signal Transport
« TV station/video conference
« Lecture Hall Projector Connectivity
« Medical/Surgical Room Broadcast
« Building to Building video conference calling
« Small corporate campus video links
Ordering Information

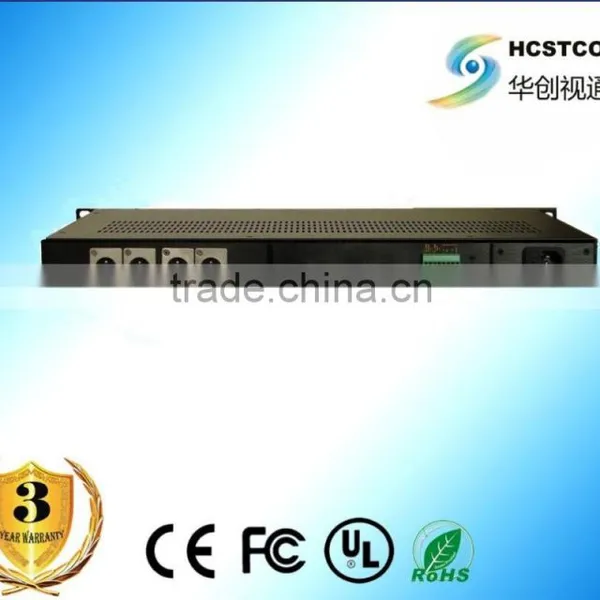

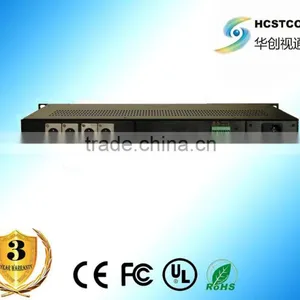

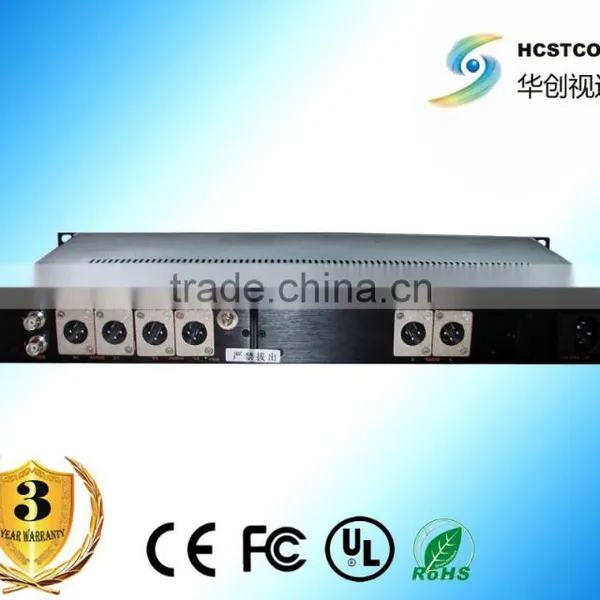

HD-SDI Unidirectional Fiber Optic Transmitter/Receiver
HC3016-T
16-Ch HD-SDI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
HC3016-R
16-Ch HD-SDI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
-family:"Arial","sans-serif";mso-font-kerning: 0pt'>TV station/video conference
« Lecture Hall Projector Connectivity
« Medical/Surgical Room Broadcast
« Building to Building video conference calling
« Small corporate campus video links
ABOUT HCSTOM
Beijing Hcstcom Co., Ltd located in Beijing is one of the leading company in the area of video transmission in China. As a large manufacturer, we have mature and creative R&D team and QC department with more than 3000 square meters factory. We could meet any demands of OEM & ODM cooperation.Fast delivery, quality goods and timely services are our guarantee to our customers. Moving towards the world and being the best will always be our marketing philosophy.
Main products: 1-128 channel digital video fiber optic transmission for surveillance; 1-8 channel broadcast-quality video/audio fiber optic transmission; HD digital video fiber optic transmission: 3G/HD/SD-SDI digital video fiber optic transmission, HD/SD-SDI digital video fiber optic transmission, SD-SDI/ASI digital video fiber optic transmission, DVB-ASI/TS stream Optical transmission, VGA/DVI fiber optic transmission, VGA/RGBHV fiber optic transmission, DVI fiber optic transmission, HDMI fiber optic transmission, AES/EBU digital audio fiber optic transmission; Industrial Ethernet Series: industrial fiber optic transceiver, industrial Ethernet fiber optic switch, industrial data optical; Networks and communications series: 10/100/1000M fiber optic transceiver, Gigabit Fiber Transceiver, PDH/SDH Optical Multiplexer, Protocol converter; ASI to IP bidirectional Adapter, DS3 to ASI bidirectional Adapter, 4E1 to IP bidirectional Adapter, 4/8 channel Multiplexer, MPEG-2/4 IP Encoder, DVR digital video recorder, etc…
