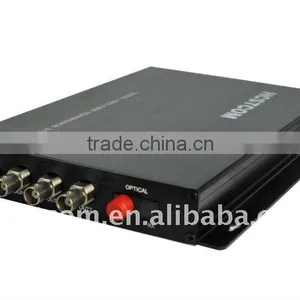

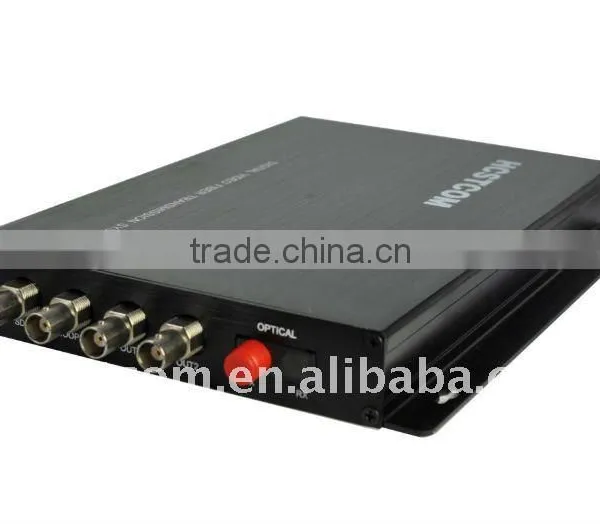

Product name: HD-SDI bidirectional video transmitter
Product category: Digital video fiber optic transmission system
Product introduction
1. Overview
The 3011 HD-SDI is serial digital fiber optic transmission equipment of high performance and high reliability for TV industry. Signal format from 19.4Mbps to 1.485Gbps, system supports PTE292, SMPTE259M, SMPTE297M, SMPTE305M,SMPTE310M, DVB-ASI(EN50083-9) and so on, which meets requirements of industrial products
2. Features
« 1-ch bidirectional HD-SDI with embedded audio over one fiber
« The rage from 19.4Mbps to 1.485Gbps
« Clock recovery of SMPTE 292M (1.485Gbps)
« Support all SMPTE 259 standards,143Mb/s - 360Mb/s
« SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M (540Mb/s),M2S and DVB-ASI(270Mb/s)
« 1310nm,1550nm and 16 kinds of CWDM wavelength (ITU-T G.694.2 compatible)
« 150m automatic cable equalization, applicable to be under 1.485Gbps rate (Belden 1694A)
« LED status indicators monitor the critical parameters
« Optional network system
« Hot-swap
« Stand-alone,1U or 4U rack mount
3. Specifications
a) Serial TV BNC input
TV signal standard: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate (19.4Mb/s - 1.485Gb/s)
Input channel: 1
Reflection loss: >15DB
Equilibrium: 0-150m @ 1.485Gb/s
Connector: 75Ω BNC
b) Optics
Channel: 1
Type: SM or MM
Wavelength: 1310nm/1550nm
Reflection loss: >15dB
Dithering: <0.2UI
Connector: FC/PC (SC/PC)
c) Serial TV BNC output (EO/OE)
Channel: 2-channel receiver
Signal level: 800mV nominal
Rise/ fall time: 200Ps nominal
Overshoot: 10% amplitude
Reflection loss: >15dB
Dithering: <0.2UI
Connector: 75Ω BNC
Electrical indication: 0°C~+50°C
Pressure: 1A@12VDC
Power: 12w
EMI / RFI line with FCC Part 15 Class A, EU EMC indication
Average time: >100000h
4. Applications
Remote OB Van/Truck Video Feeds;
Broadcast Studio Camera Feeds;
Long-haul Signal Transport;
TV station/video conference;
Lecture Hall Projector Connectivity;
Medical/Surgical Room Broadcast;
Small corporate campus video links
5. Ordering information
HD-SDI Bidirectional Fiber Optic Transmitter/Receiver
HC 3011-T
1-channel HD-SDI with embedded audio input/output over one fiber, single mode, single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or IU rack mount
HC 3011-R
1-channel HD-SDI with embedded audio output/input over one fiber, single mode, single fiber, FC/PC fiber connector, 0-120km, stand-alone or IU rack mount
