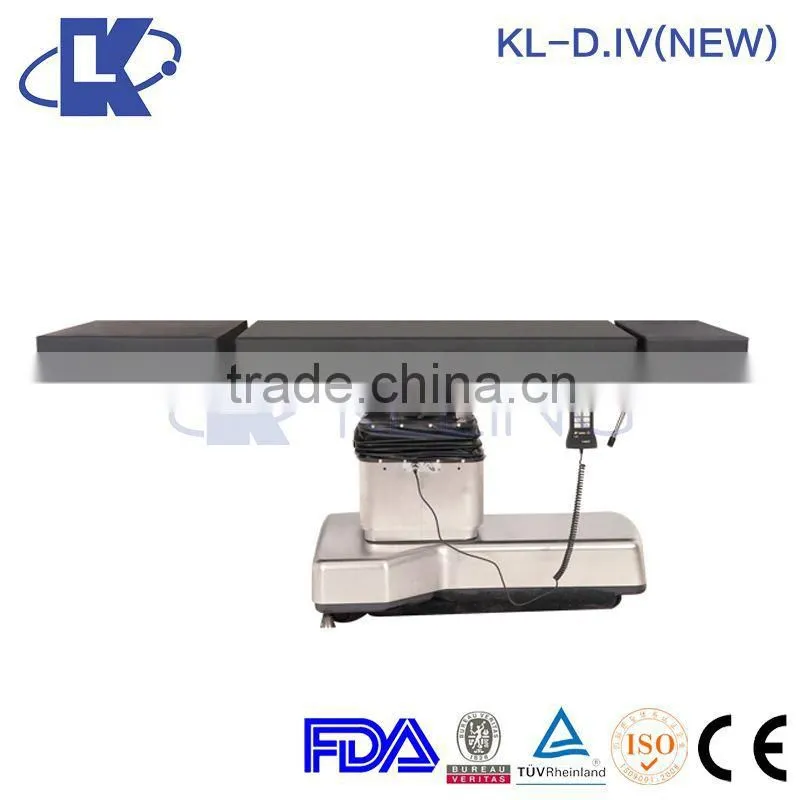

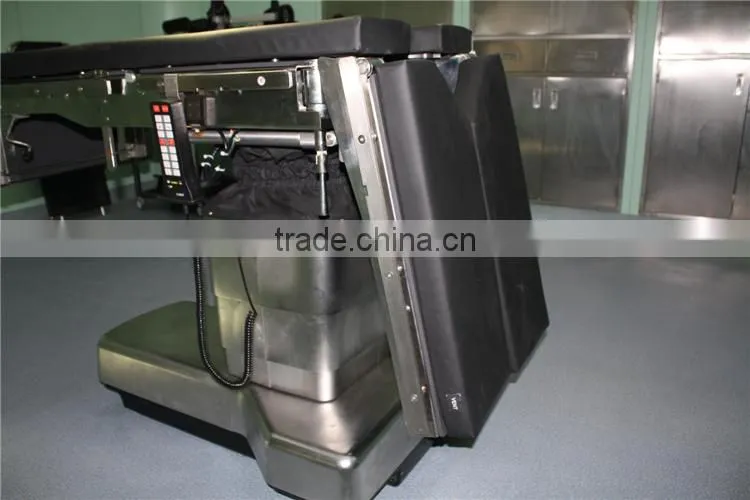

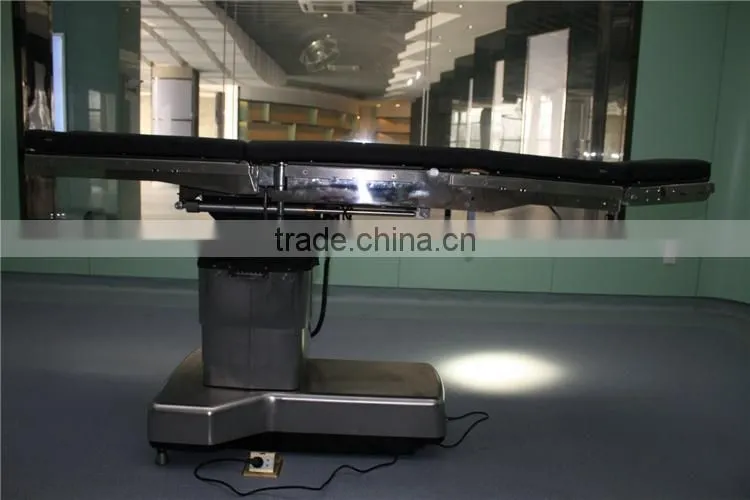

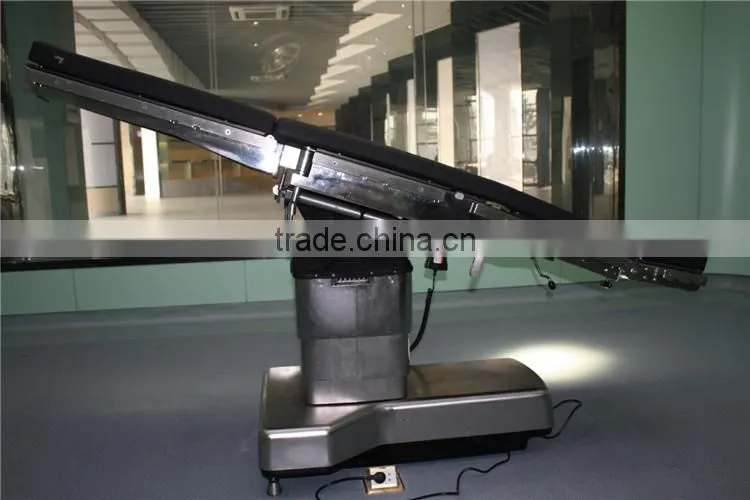

KL-D.IV electric coperating theatre table hydraulic surgical operation table
KL-D·IV has a top-panel composed of five movable boards including head board, back board, hip board, thigh board and crus board. This top-panel supports 6 kinds of body positions by electric hydraulic control which controls the lifting and lowering, forward and backward tilts and leftward and rightward tilts of the top panel, the upward and downward folding of the hip board, the upward and downward folding of the leg boards, and the locking and unlocking of the base. The changes of the angles of the head board and crus board are adjusted manually through pneumatic spring
Specifications:
|
Mode
|
KL-D·IV |
|
Table Length mm
|
2050±20
|
Table Width mm |
520±20 |
|
Height Adjustment mm
|
(720~1120)±20
|
|
Loading capacity kg
|
400
|
|
Tilt(Left) / Tilt(Right)
|
18° |
|
Trendelenburg / Rev-Trend
|
25° |
|
Head board fold upward
|
40° |
|
Head board fold downward
|
55° |
|
Backboard Upwards
|
25 |
|
Backboard Downwards
|
0-100° |
|
Waist board lifting mm
|
0~100±10
|
|
Lumbar upper corner “∧”
|
150°
|
Lumbar lower corner “∨” |
150° |
|
Main Voltage AC
|
220 50Hz
|
Input power |
500VA
|
Keling company introduce:
1. This offer is valid with 30 days.
2. Delivery time: In 10 days after receive the payment
3. Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery
4. plywood case
