(DFX-23C.III) Mobile Vacuum Medical Suction Pump

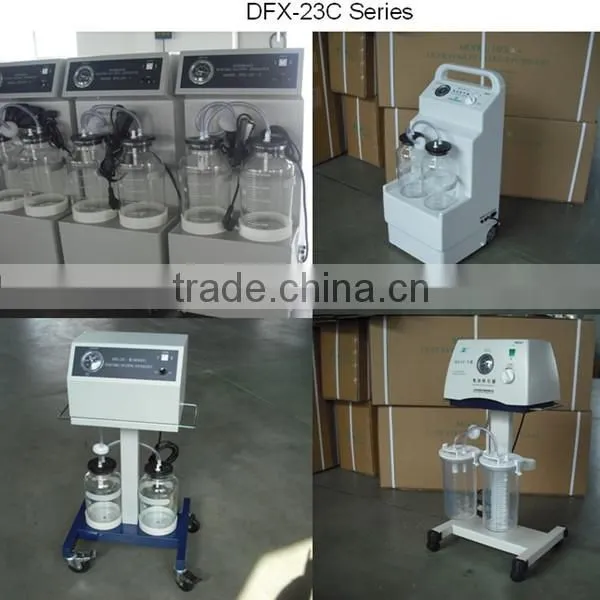

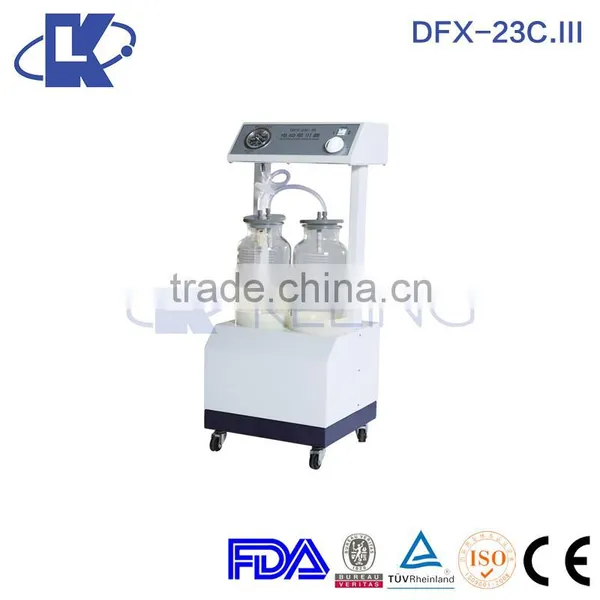

DFX-23C·III ELECTRICAL SUCTION DEVICE (MOBILE SETUP)

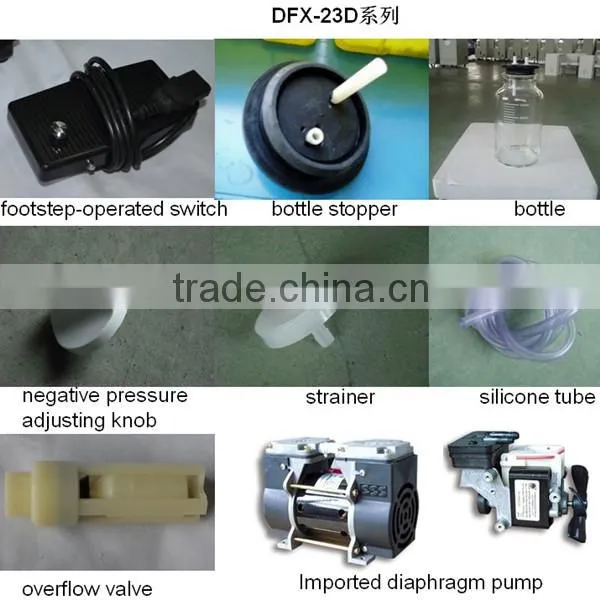

DFX-23C·IIIelectrical suction device is a new style suction device for medical use. It can meet most of the negative pressure requirements in operating rooms, wards and other departments in hospitals. It is used for taking out pus, blood, sputum and other thick liquid in human body. the machine adopts imported diaphragm pump, and the pump requires no daily maintenance and servicing. The liquid vessel placed directly on the mobile setup makes it easy to observe the liquid level in the vessel. Overflow protection device can prevent the liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works reliably, produces low level of noise. It is long in service life and reliable and safe in use(All-plastic cases are adopted for 23C·V)
Features:
This device is of vehicle frame design, allowing for easy movement.
The device is equipped with a imported membrane pump available with long service life.
This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
This device has low noise and is maintenance-free.
TECHNICAL SPECIFICATION:
| Power voltage: | AC220V±10% 50Hz |
| Negative pressure: | ≥0.09MPa(680mmHg) |
| Suction rate: | ≥25L/min |
| Range of negative pressure: | 0.013MPa~0.09Mpa(680mmHg) |

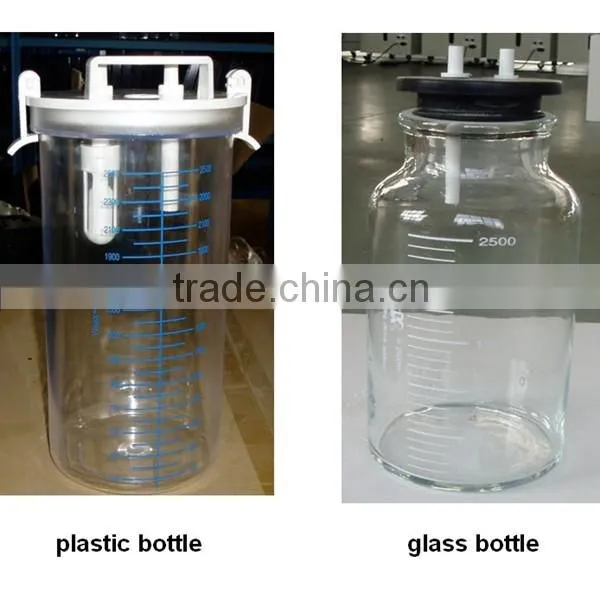

| Suction bottle: | 2500ml x 2 |
| Noise: | ≤55dB |
| Input power: | 150VA |
| Pump structure: | Diaphragm type |
| Working type: | intermittent loading,continuous operation |
PRODUCT ADVANTAGE:
| 1.vehicle frame design,easy movement |
| 2.imported diaphragm pump |
| 3.long service life time |
| 4.plastic bottle for cleaning & disinfection |
| 5.oil-free pump is maintenance-free |
| 6.low noise |
| 7.with an overflow protection |
