Specifications
Aluminium Roofing SheetsMax width:1600mm
thickness:0.02-0.80mm
used for roofing ceiling
with PE paint coating
Aluminium Roofing Sheets with PE coating A1100H18with diamond pattern used for roofing tile cladding corrugated roof sheets
Aluminium Roofing Sheets
We are the biggest manufacturer of color coated aluminum coil and stucco-embossed aluminum coil in the North of China .established in 2002. now we have five production line .mainly produce

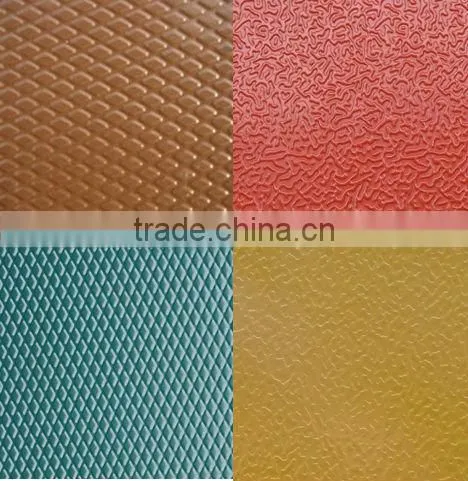

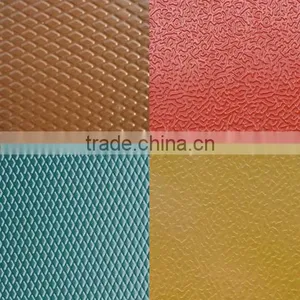

aluminum thickness is from 0.02mm-1.00mm with PVDF , PE AND ACRYLIC coating ,and the max width is 1600mm .stucco-embossed aluminum coil include Gridirion pattern , Diamond pattern ,Indication pattern etc.
Here is our products specification for your reference :
Specifications:
01) Alloy: A3003 A1100 A8011 A1050etc
02) Aluminum thickness: 0.02mm~1.00mm
03) Aluminum max width:1600mm
Standard width: 1240mm
Special width such as 1300mm, 1520mm, 1570mm, 1595mm are also available
04) Coil's standard diameter: 1200mm
Interior diameter:150mm,405mm or 505mm
05) weight: 2.5T/coil 3.0 T/coil
06) Coating finish: PVDF, POLYESTER, ACRYLIC
07) Gloss: meet the customer requirement
08) Total coating thickness:
PVDF coating: more than 25 micron
Polyester coating: more than 18 micron
09) Coating hardness (pencil hardness) more than 2H
10) coating adhesive : no lower than first grade
11) Impact resistance: No cracking and peeling (50kg/cm ,ASTMD-2794:1993)
12) Flexibility (T-bend): 2T
13) MEK resistance: more than 100
14) Bottom side aluminum sheet is coated with protective polyester material, thickness more than 6 micron

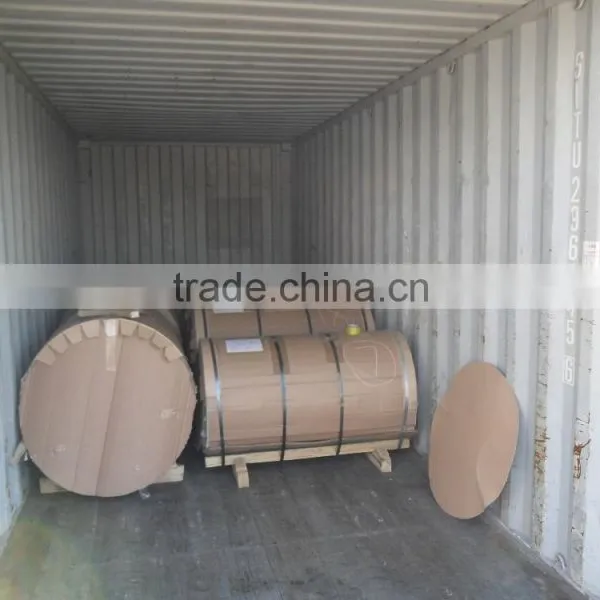

15) outer packing ;export standard , wooden pallet
