Specifications
1.multi-function for box bag,Shopping Bag,Flat Bag,D-cut Bag2.High Speed 120 pcs/mins
3.Have Stock
4.quality good enough
Specifications
1. touch screen control
2. quality good enough
3. good factory price supply
4. good & fast after sales service
Multi-function Nonwoven Bag Making Machine specification:
This machine applies for non-woven materials.It can make many kinds of bags such as vest bags, loop handle bags, flat bags, box bags and ribbon-through bags for shoes and purse etc.
It is equipped with computer touch screen, step motor and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting
Used
This machine is electro-mechanical integrative, once through fully automatic forming, touch screen operation is applied,photoelectric trace, computerized deviation rectifying function,hence accuracy and smooth. Such automatic devices as slotting device , punching device and metering device are
equipped. Finished products are produced at fast speed, in high efficiency, and in firm appearance
after welding .this machinery is an optical choice for the nonwoven bag making enterprise and
businessmen devoted to the production of nonwoven environment-friendly bags.
1, local touch-screen computer configured to operate;
2, arbitrarily set a long-step electric track, a smooth, lost support from the standard parking
3, feed off automatic shutdown, auto-punch;
4, while at the end of the roll-ultrasonic welding, in particular, solid, smooth;
5, automatic temperature and automatically correcting leaks;
6, while cutting edge automatic closure, automatic nesting.
SKYPE: ritayuan99
Main technical parameter:
Model |
CS-600 |
CS-700 |
CS-800 |
Bag width |
Vest bags: 200-550mm, Flat/box bags: 280-800mm |
Vest bags:200-650mm, Flat/box bags: 280-800mm |
Vest bags:200-750mm, Flat/box bags: 280-800mm |
Bag length |
Vest bags: 280-800mm, Flat/box bags: 200-550mm |
Vest bags: 280-800mm Flat/ box bags: 200-650mm, |
Vest bags:280-800mm Flat/box bags:200-750mm, |
power |
According to the machine making kind of bag |
||
Air compressor |
0.5—0.6Mpa |
0.5—0.6Mpa |
0.5—0.6Mpa |
Total power |
10kw |
11kw |
13kw |
Production speed |
25—110 pcs/ minute |
25—110 pcs/ minute |
25—110 pcs/ minute |
|
Overall Dimension (L×W×H) |
6.85 x 1.74 x 2.17 (m) |
6.85 x 1.84 x 2.17 (m) |
6.85 x 1.94 x 2.17 (m) |

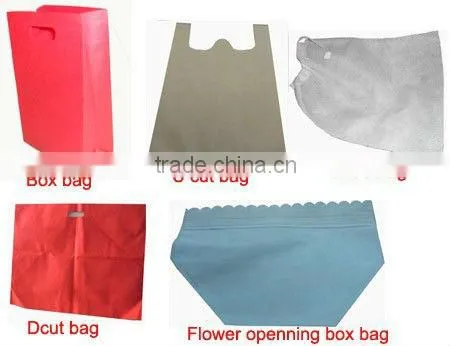

Noneoven Bag Samples:
D-cut bag:
OPTIONAL DEVICE:The soft loop Handle Punchine Machine

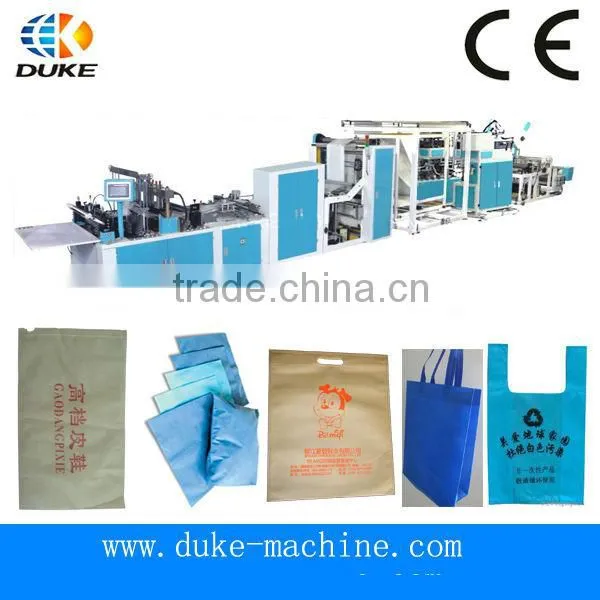

Real Machine Pic:
