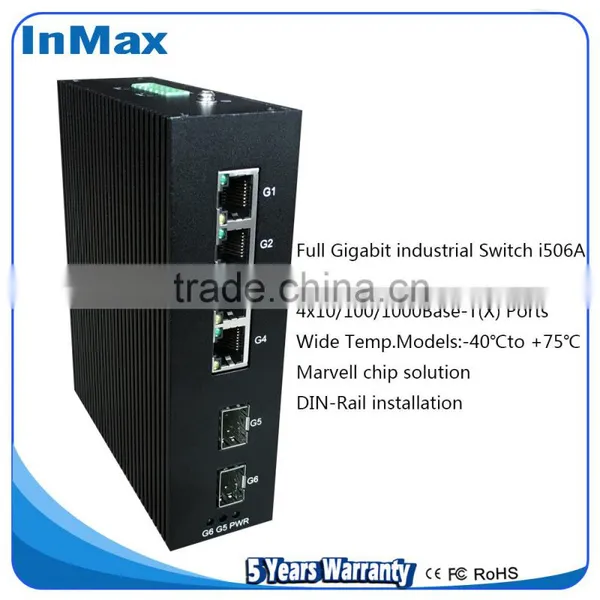

Full Gigabit Unmanaged Industrial Ethernet Switch --- i506A
Features and Benefits
1.With 4x10/100/1000BaseT(X) ports, and 2x1000BaseX SFP slots
2. Redundant dual 12/24/48 VDC power inputs, Built-in over-current protection and Reverse connection protection
3. -40 to 75℃ operating temperature range (WT models)
4. No fan, low power consumption, Industrial design standard, Industrial grade electronic components, environmental protection & lead-free production
5. Hard aluminum alloy case (not sheet metal),DIN-rail and wall mounting
6. IP Rating up to IP40
7. No packet lost in 72 hours full load traffic testing
Introduction
i506A Full Gigabit Unmanaged Industrial Ethernet Switches are equipped with 6 Gigabit Ethernet ports, and up to 2 fiber optic ports, making them ideal for applications that demand high bandwidth.
No Fan, Low power Consumption design, Working function more steady, and no packet lost in 72 hours full load traffic testing.
It accords with FCC, CE standard and industrial design requirement. It can work in -40 to 75℃ working temperature steadily, and provide reliable and quick solution for your Ethernet device.
Specs
Technology
Standards: IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.3az for Energy-Efficient Ethernet
Flow Control: IEEE 802.3x Flow Control, Back Pressure Flow Control
Switch Properties
packet forwarding rate: 8.928Mpps
Processing Type: Store and Forward
MAC Table Size: 1 K
Jumbo Frame Size: 10KByte
Backplane: 12G
Packet Buffer Size: 1Mbit
Interface
Fiber Ports: 1000BaseX SFP slot
RJ45 Ports: 10/100/1000BaseT(X) auto negotiation speed
Full/Half duplex mode
MDI/MDI-X connection
LED: RJ45 Ports: Link G1~G4, Act G1~G4
Fiber Ports: Link/Act G5,G6
Power: PWR
Power Requirements
Connection: 1 removable 6-contact terminal block
Input Voltage: 12/24/48VDC (9.6 to 60VDC), Redundant Dual Inputs
No-load Power: 5W @ 24VDC
Full-load Power: 8W @ 24VDC
Redundant Dual Inputs: Present
Reverse Polarity Protection: Present
Over current protection: Present
Physical Characteristics
Housing: Hard aluminum alloy case
IP Rating: IP40
Dimensions (W x H x D): 41 x 153.5 x 128 mm
Weight: 570g
Installation: DIN-rail mounting, wall mounting
Environmental Limits
Operating Temperature: Standard Models: -10 to 60℃ (14 to 140℉)
Wide Temp. Models: -40 to 75℃ (-40 to 167℉)
Storage Temperature: -40 to 85℃(-40 to 185℉)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
EMI: FCC Part 15,CISPR (EN55022) class A
EMS: EN61000-4-2 (ESD),Level 4
EN61000-4-3 (RS),Level 3
EN61000-4-4 (EFT),Level 4
EN61000-4-5 (Surge),Level 4
EN61000-4-6 (CS),Level 3
EN61000-4-8,Level 5
Shock: IEC60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC60068-2-6
Warranty
Warranty Period: 5 years
Ordering
Product Model |
Description |
i506A |
With 4 10/100/1000BaseT(X) ports, and 2 100/1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -25 to 60℃ operating temperature |
i506A-WT |
With 4 10/100/1000BaseT(X) ports, and 2 100/1000BaseX SFP slots, without SFP Transceiver. 9.6 to 60VDC,Redundant Dual Inputs, -40 to 75℃ operating temperature |
Dimension Unit (mm)
