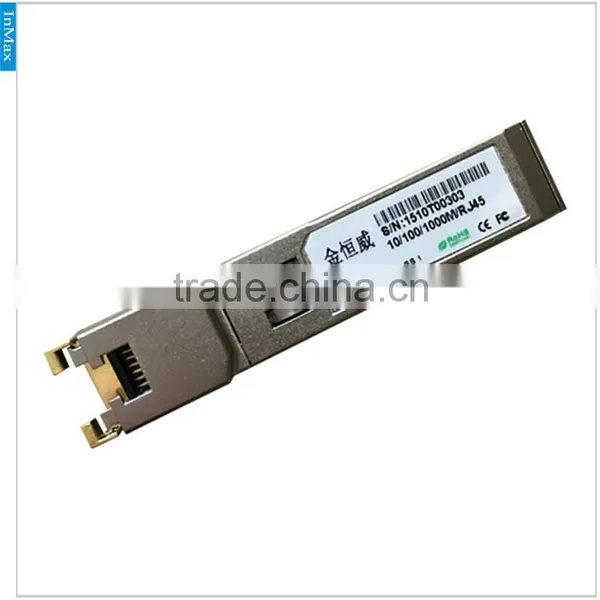

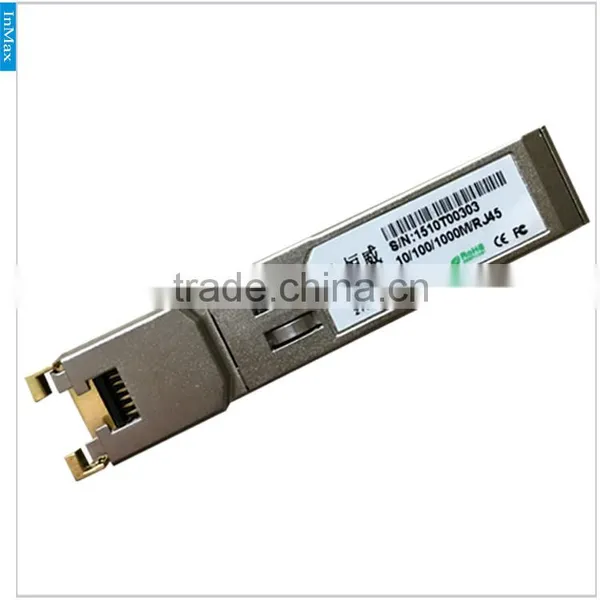

10/100/1000 BASE-T Copper SFP Transceiver
PRODUCT FEATURES
l Up to 1.25 Gb/s bi-directional data links
l Hot-pluggable SFP footprint
l Low power dissipation(1.05W typical)
l Compact RJ-45 connector assembly
l Fully metal enclosure, for lower EMI
l RoHS compliant and lead-free
l Single +3.3V power supply
l 10/100/1000 BASE-T operation in host systems with SGMII interface
l 1.25 Gigabit Ethernet over Cat 5 cable
l Case operating temperature:
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
PRODUCT DESCRIPTION
10/100/1000 BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the Gigabit Ethernet standards as specified in IEEE Std 802.3 .The 10/100/1000 BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
10/100/1000 BASE-T is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded).
- I. SFP to Host Connector Pin Out
Figure 1. Diagram of host board connector block pin numbers and names
Pin |
Symbol |
Name/Description |
Ref. |
1 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
2 |
TFAULT |
Transmitter Fault. Not supported. |
|
3 |
TDIS |
Transmitter Disable. Not supported. |
|
4 |
MOD_DEF(2) |
Module Definition 2. Data line for Serial ID. |
2 |
5 |
MOD_DEF(1) |
Module Definition 1. Clock line for Serial ID. |
2 |
6 |
MOD_DEF(0) |
Module Definition 0. Grounded within the module. |
2 |
7 |
Rate Select |
No connection required |
|
8 |
LOS |
Loss of Signal indication. Logic 0 indicates normal operation. |
3 |
9 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
10 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
11 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
12 |
RD- |
Receiver Inverted DATA out. AC Coupled |
|
13 |
RD+ |
Receiver Non-inverted DATA out. AC Coupled |
|
14 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
15 |
VCCR |
Receiver Power Supply |
|
16 |
VCCT |
Transmitter Power Supply |
|
17 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
18 |
TD+ |
Transmitter Non-Inverted DATA in. AC Coupled. |
|
19 |
TD- |
Transmitter Inverted DATA in. AC Coupled. |
|
20 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
Notes:
1. Circuit ground is connected to chassis ground
2. Should be pulled up with 4.7k - 10k Ohms on host board to a voltage between 2.0 V and 3.6 V. MOD_DEF(0) pulls line low to indicate module is plugged in.
3. LVTTL compatible with a maximum voltage of 2.5V. Not supported on XGSF-T12-02-2.
II. 3.3V Volt Electrical Power Interface
The 10/100/1000 BASE-T has an input voltage range of 3.3 V +/- 5%. The 4V maximum voltage is not allowed for continuous operation.
+3.3 Volt Electrical Power Interface | ||||||
Parameter |
Symbol |
Min |
Typ |
Max |
unit |
Notes/Conditions |
Supply Current |
Is |
|
320 |
375 |
mA |
1.2W max power over full range of voltage and temperature. See caution note below |
Input Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
Referenced to GND |
Maximum Voltage |
Vmax |
|
|
4 |
V |
|
Surge Current |
Isurge |
|
|
30 |
mA |
Hot plug above steady state current. See caution note below |
