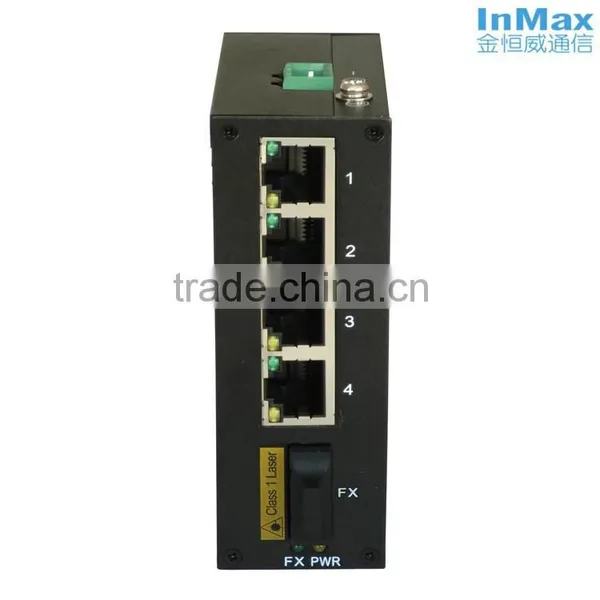

InMax i305C 4+1G Port Unmanaged Industrial Ethernet Switches
Main Features
- 1x1000BaseX optical fiber Ethernet port
- 4x10/100/1000BaseTX ports
- Ideal for non-stop industrial communications
- Industrial-grade design with -40 to +75°C operating temperature and redundant power inputs
- Metal, IP40 protection,DIN-Rail mounting, wall mounting
Specifications
Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
Interface:
1x1000BaseX port(SFP SLOT or 1X9 module) +4x10/100/1000BaseTX ports
RJ-45: 10/100/1000BaseTX
LED:
Port Led:Copper: Link1,2,3,4, Act1,2,3,4
Fiber:Link/Act 5
Power Led:PWR
Power Requirements:
Input Voltage: 24VDC (12 ~ 36VDC), redundant dual inputs
Input Current: MAX. <0.2A@24VDC,<5W
Overload Current Protection: Present
Reverse Polarity Protection: Present
Connector: 3-contact terminal blocks
Mechanical Properties:
Housing: Metal, IP40 protection
Dimensions: 32 x 108 x 78mm
Weight: 280g
Installation: DIN-Rail mounting, wall mounting
Environmental Limits:
Operating Temperature:
Standard Models: 0 to +60°C (32 ~ 140°F )
Wide Temp. Models:-40 to +75°C (-40 to 167°F)
Storage Temperature: -40 to +85°C (-40 to 185°F )
Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications:
Safety: UL 60950-1
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Level 3
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Warranty Period: 5 years

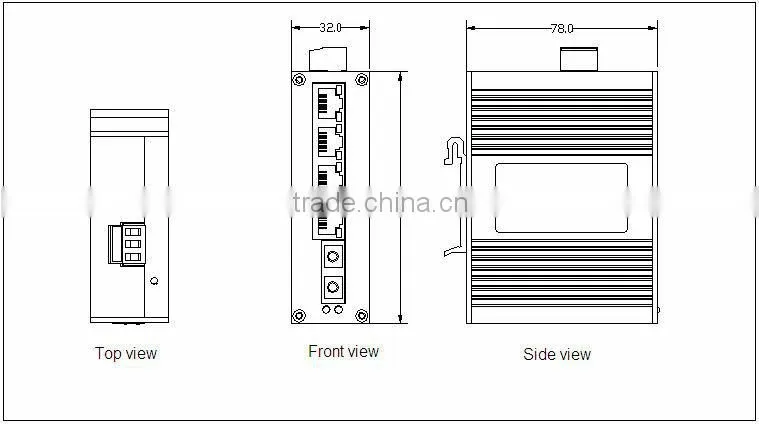

Dimensions
Unit(mm)
(W×H×D):32 mm×103mm×78mm
