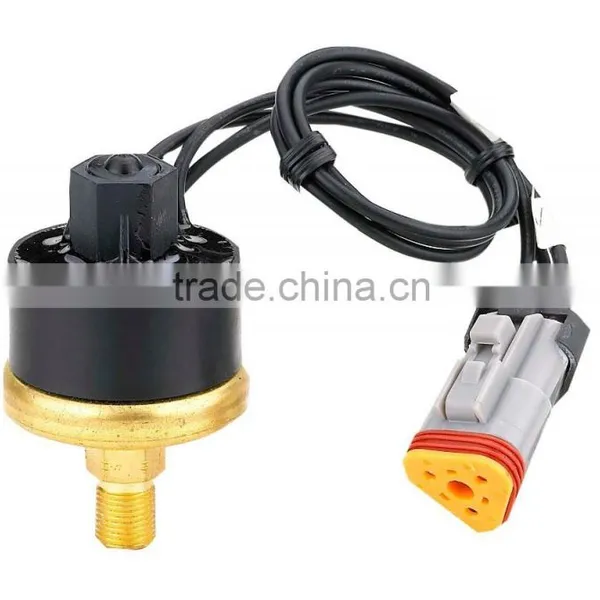

LF20 Ultra Duty Switch Adjustable Hydraulic Vacuum Pressure Switch for Car Retarder
US$ 4 - 7
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
LEFOO
Place of Origin:
China
Model Number:
LF20-V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days
Related Products
-
LF20 Car Vacuum Pump Metric-pack Connector Pressure SwitchUS$ 4.5 - 8MOQ: 50 Pieces -
LF20 Hydraulic Adjustable Vacuum Pressure Switch ,Pressure Switch For Truck/ CAR / Heavry Machine SystemUS$ 4 - 10MOQ: 50 Pieces
-
LF32 Sensitive (differential) Pressure Switch for AirUS$ 5 - 10MOQ: 1 Unit
-
Furnace Air Pressure SwitchNegotiableMOQ: 100 Pieces
-
LF702 Pressure SwitchNegotiableMOQ: 100 Units
Brand Name
LEFOO
Place of Origin
China
Model Number
LF20-V
Max. Voltage
240VAC
Max. Current
Consult the seller
Max. Working Pressure
500PSI
LF20-V vacuum switch is specifically designed to stand up to extended duty applications. This switch is factory set. It features a fluorosilicone rubber diaphragm for compatibility with a wide variety of fluids, and various terminations including a Metri-Pack connector that forms a tight seal when connected. Among the outstanding design benefits are its durable construction, compact size, and enhanced set point integrity. |
Series No. |
LF20-V |
Medium
|
Air, water, other variety of fluids that is suitable for fluorosilicone diaphragm |
Pressure Set Point |
Factory set from 1.1 to 22 Hg vacuum |
Max Operating Pressure |
30 Hg vacuum |
Burst Pressure |
150 psi |
Operating Temperature Range |
-40C to 120C |
Switch Type |
Direct action, blade contact |
Electric Rating |
Resistive: 15 AMP- 6 VDC
8 AMP- 12 VDC
4 AMP- 24 VDC
Inductive: 1 AMP- 120 VAC
0.5 AMP- 240 VAC
|
Contact Arrangement |
SPST-N.O., N.C., |
Terminals |
#8-32 screws, 1/4 blade |
| Connection | 1/8"NPT Male, 1/4"NPT Male, G1/8" Male, G1/4" Male |
Material |
Contact: Silver alloy, gold plated
Base: Brass
Cover: Glass reinforced polyester
Diaphragm: Fluorosilicone elastomer
|
| Options | Various base connector sizes, wire leads(potted & sealed). |
