Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > LC SM 12 Fibers Colored Pigtail

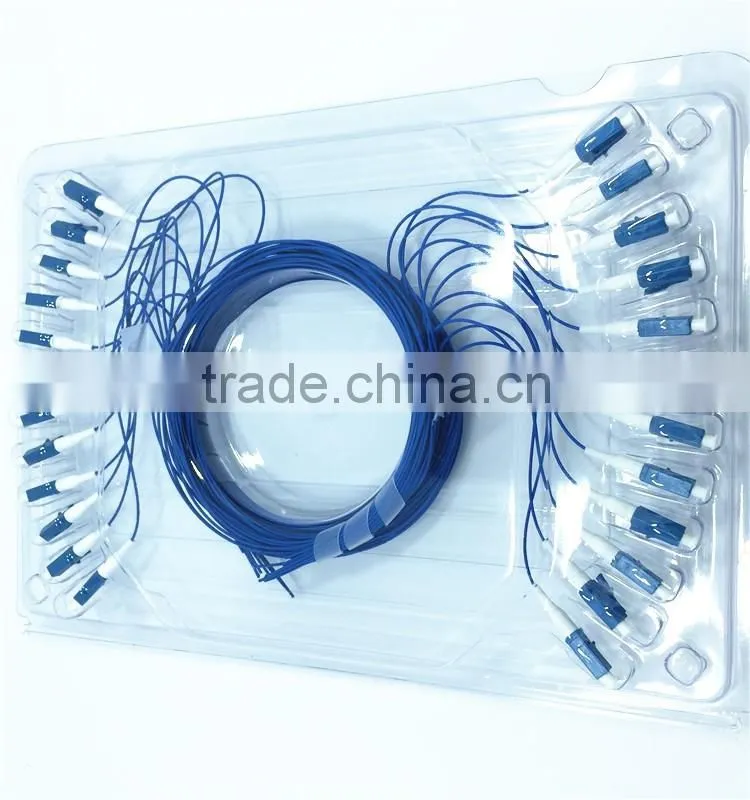

LC SM 12 Fibers Colored Pigtail

US$ 6 - 6.5 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OMC

Model Number:

SC, FC, LC, ST

Contact Supplier Request Quote Chat Now

Shenzhen Omc Optical Communication Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OMC

Model Number SC, FC, LC, ST

12 fibers/Colored pigtail

Product Description

It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.

1 The connector could be SC, FC, LC, ST, MU, and E2000etc.

2The cable could beG652D, G655, G657, OM1, OM2, OM3, OM4 etc.

3The cable size could be 0.25, 0.9,

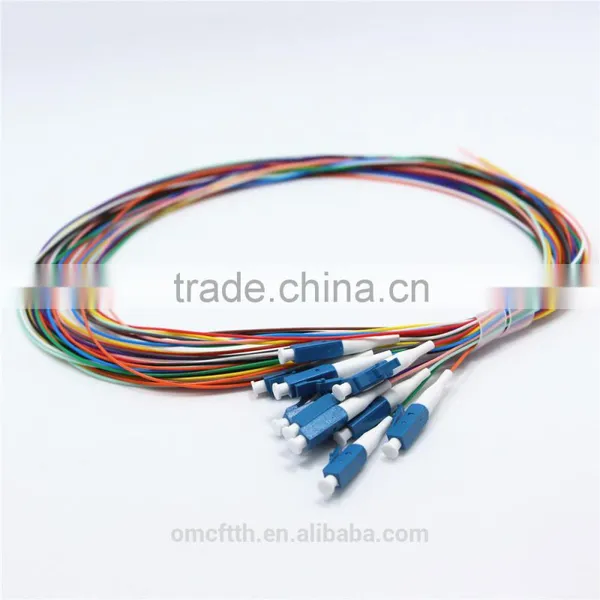

4There are 12 colors for your option.

5 Both 250um and 900um is same colored, easy to identify and make right splice.

6 Tight buffer, semi-tight buffer. Loose buffer are available

Optical Specification

Connector	SC,FC,LC,ST,MU,E2000
Polishing	SM/UPC	MM/PC	SM/APC
Insertion Loss(max)	≤0.30dB	≤0.30dB	≤0.30dB
Return Loss(min)	≥50 dB	≥35 dB	≥60 dB
Tensile Strength	>70N
Durability	<0.20 dB typical change, 1000 matings
Repeatability	≤0.1dB
Storage , Operating Temperature [°C]	-40~+85

Geometric Specification (only for 3D interferometer tested)

Connector		PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 50 nm
Angular Offset		------	8°± 0.2°

Ø Clean and Scratch-Free End Face
Ø Proportional geometric test is applied to the normal production.
Ø 100% interferometer check is available under special requirement.

Length tolerance:

0<L<1m, 0< *L<5cm

1<L<10m, 0< *L<10cm

10m<L, 0< *L< Lx1%(normal is 10cm)

L:cable total length.

*L:tolerance.

Packaging & Shipping

one or two pieces in a plastic box

hundreds piece in a cartoon of 54*35*39cm.

Shipped in 3 days after payment

Our Services

OEM service available

We also offer training, pre and post-sales support.
