Fiber Optic Splitter 1x8 -Block Less

Fiber Optic Splitter 1x8 -Block Less thumbnail-1
Fiber Optic Splitter 1x8 -Block Less thumbnail-2
Fiber Optic Splitter 1x8 -Block Less thumbnail-3

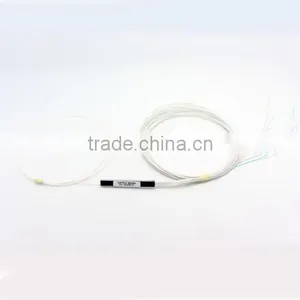

Fiber Optic Splitter 1x8 -Block Less thumbnail-4

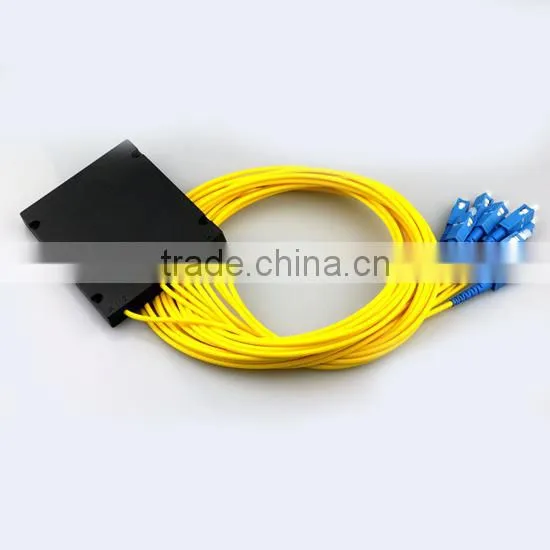

Fiber Optic Splitter 1x8 -Block Less photo-1

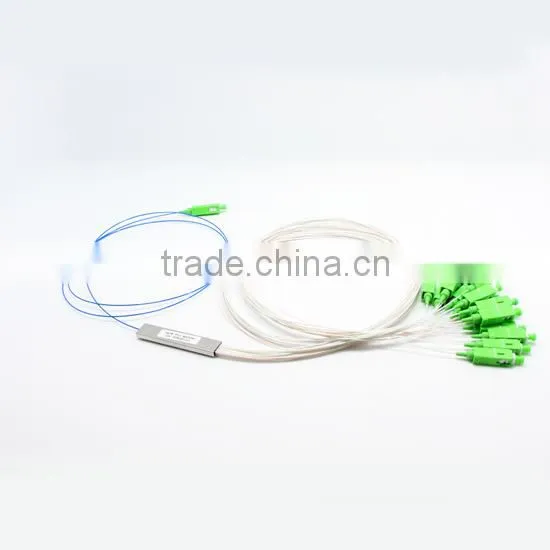

Fiber Optic Splitter 1x8 -Block Less photo-2

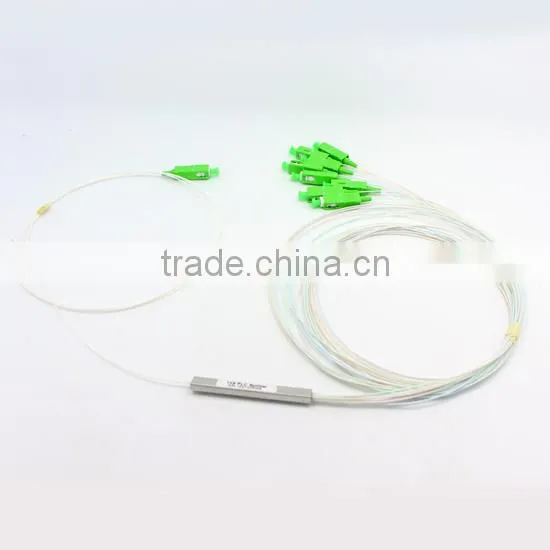

Fiber Optic Splitter 1x8 -Block Less photo-3

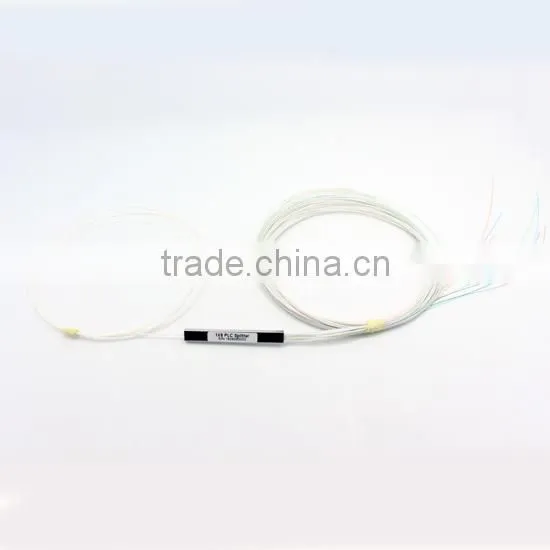

Fiber Optic Splitter 1x8 -Block Less photo-4
US$ 3 - 3 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OMC or OEM
Model Number:
1x8 PLC splitter
Contact Supplier Request Quote Chat Now
Shenzhen Omc Optical Communication Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OMC or OEM
Model Number 1x8 PLC splitter

Block less PLC Splitter



PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

OMC ‘s bare fiber PLC splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.



Specification (with no connector)

Parameter

Unit

Specification (P Grade)

Operation Wavelength

nm

1260~1650

Channel Number



1X2

1x3

1X4

1x6

1X8

1x12

1X16

1x24

1X32

1X64

1x128

Insertion Loss(Max)

dB

4.3

6.2

7.2

9.8

10.5

12.5

13.6

16.5

17.2

21.0

25.5

Uniformity (Max.)

dB

0.5

0.6

0. 6

0.8

1.0

1.0

1.4

1.5

1.6

2.0

2.5

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.3

0.5

0.8

Return Loss

dB

≥55

Directivity

dB

≥55



Parameter

Unit

Specification (P Grade)

Operation Wavelength

nm

1260~1650

Channel Number



2X2

2X4

2X8

2X16

2X32

2X64

2x128

Insertion Loss (Max.)

dB

4.5

7.5

11.2

14.6

17.5

21.5

25.8

Uniformity (Max.)

dB

0.8

1.0

1.2

1.5

1.8

2.5

3.0

Polarization Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

1.0

Return Loss

dB

≥55/50

Directivity

dB

≥55

Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.



Environmental Conditions:

Operating Temperature

℃

-40~+85

Storage Temperature

℃

-40~+85

Operating Humidity

%RH

≤93

Storage Humidity

%RH

≤93

Package Dimension (mm)

A1



40x4x4  steel tube

A12

55x7x4 steel tube

A2



45x4x4  steel tube

D

90x20x9.5 Plastic box

A3



45x4.5x4 steel tube

E

100x80x10 Plastic box

A4



50x7x4  steel tube

F

141x115x18 Plastic box

A5



60x7x4  steel tube

K

120x80x18 Plastic box

A6



60x12x4 steel tube

U

1/2/3/4 U 19” rack

A7



65x7x4  steel tube

G

1/2/3/4 G LGX’ Aluminum rack

A8



80x12x4 steel tube

C

4/8/16/32/64 CH Cassette

A9



80x20x6 steel tube

T

4/8/16/32/64 CH Pallet

A10



90x20x6   steel tube

R

Splice Tray (customized dimension)

A11



80x20x6 steel tube

X

Custom Specifies



Packaging Information

Product Type

1×2

2×2

1×3

1×4

2×4

1×6

1×8
(127)

1×8
(250)

2×8

Ribbon Fiber

A1

/

A1

A3

/

A1

A3

0.9 steel tube

A3

A5

0.9 plastic case

D

E

2.0 plastic case

D

E

3.0 plastic case

D

E

Rack Mount

1U/2U/3U/4U

Product Type

1×12

1×16

2×16

1×24

1×32

2×32

1×64

2×64

Ribbon Fiber

A3

A5

A4

A7

A6

0.9 steel tube

A6

A8

A9

A10

A11

0.9 plastic case

K

F

2.0 plastic case

K

F

3.0 plastic case

K

/

Rack Mount

1U/2U/3U/4U



Package Drawing (mm)

Fiber Optic Splitter 1x8 -Block lessFiber Optic Splitter 1x8 -Block less
