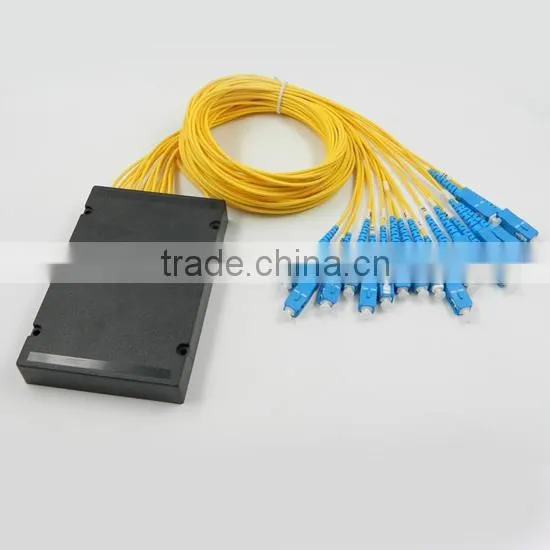

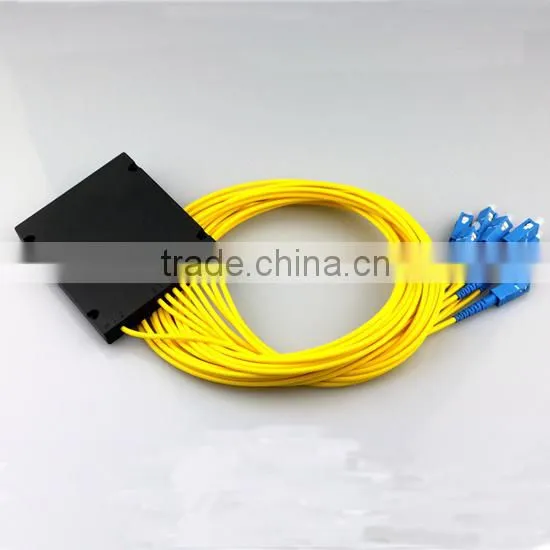

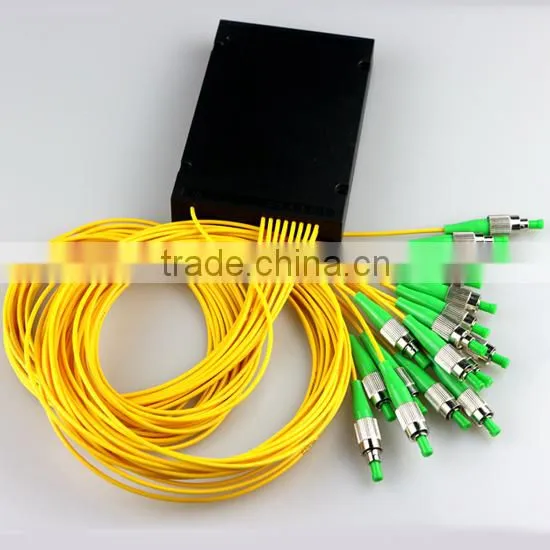

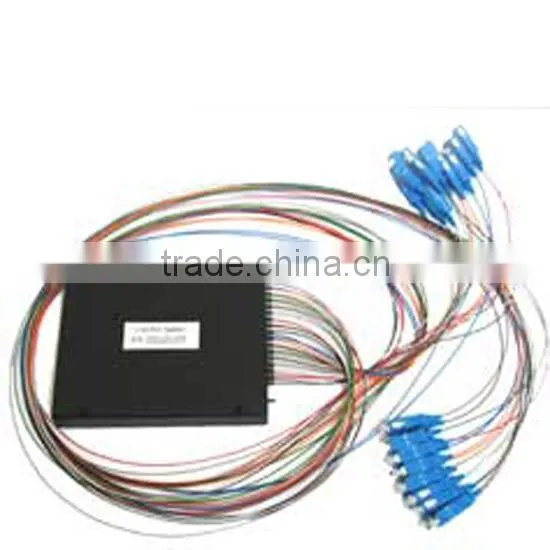

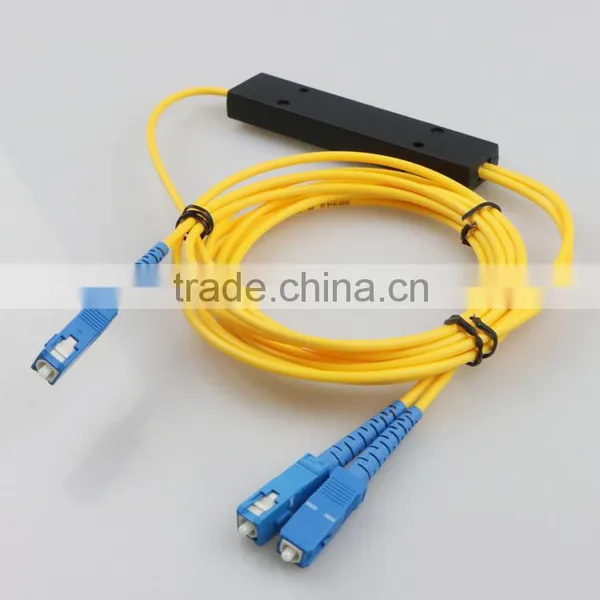

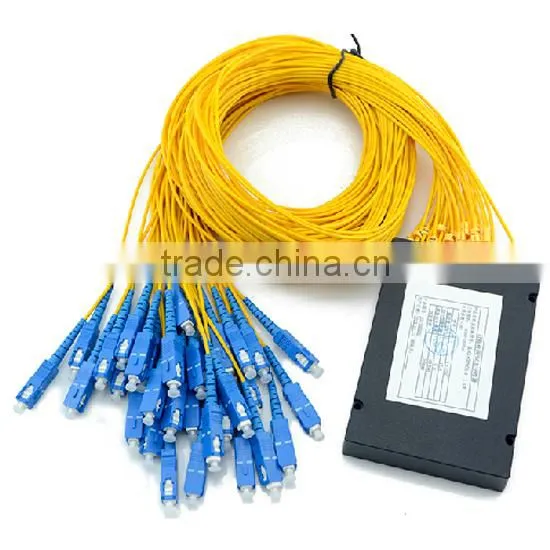

ABS Cassette PLC Splitter
PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s bare fiber PLC splitter family has 1x2, 1x4, 1x8, 1x16, 1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.
Specification (with no connector)
Parameter |
Unit |
Specification (P Grade) |
||||||||||
Operation Wavelength |
nm |
1260~1650 |
||||||||||
Channel Number |
1X2 |
1x3 |
1X4 |
1x6 |
1X8 |
1x12 |
1X16 |
1x24 |
1X32 |
1X64 |
1x128 |
|
Insertion Loss(Max) |
dB |
4.3 |
6.2 |
7.2 |
9.8 |
10.5 |
12.5 |
13.6 |
16.5 |
17.2 |
21.0 |
25.5 |
Uniformity (Max.) |
dB |
0.5 |
0.6 |
0. 6 |
0.8 |
1.0 |
1.0 |
1.4 |
1.5 |
1.6 |
2.0 |
2.5 |
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.8 |
Return Loss |
dB |
≥55 |
||||||||||
Directivity |
dB |
≥55 |
||||||||||
Parameter |
Unit |
Specification (P Grade) |
||||||
Operation Wavelength |
nm |
1260~1650 |
||||||
Channel Number |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
2x128 |
|
Insertion Loss (Max.) |
dB |
4.5 |
7.5 |
11.2 |
14.6 |
17.5 |
21.5 |
25.8 |
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.5 |
3.0 |
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
1.0 |
Return Loss |
dB |
≥55/50 |
||||||
Directivity |
dB |
≥55 |
||||||
Note: UPC Connectors: IL add 0.2 dB, APC Connectors: IL add 0.3 dB.
Environmental Conditions:
Operating Temperature |
℃ |
-40~+85 |
Storage Temperature |
℃ |
-40~+85 |
Operating Humidity |
%RH |
≤93 |
Storage Humidity |
%RH |
≤93 |
Package Dimension (mm)
A1 |
|
40x4x4 steel tube |
A12 |
55x7x4 steel tube |
A2 |
|
45x4x4 steel tube |
D |
90x20x9.5 Plastic box |
A3 |
|
45x4.5x4 steel tube |
E |
100x80x10 Plastic box |
A4 |
|
50x7x4 steel tube |
F |
141x115x18 Plastic box |
A5 |
|
60x7x4 steel tube |
K |
120x80x18 Plastic box |
A6 |
|
60x12x4 steel tube |
U |
1/2/3/4 U 19” rack |
A7 |
|
65x7x4 steel tube |
G |
1/2/3/4 G LGX’ Aluminum rack |
A8 |
|
80x12x4 steel tube |
C |
4/8/16/32/64 CH Cassette |
A9 |
|
80x20x6 steel tube |
T |
4/8/16/32/64 CH Pallet |
A10 |
|
90x20x6 steel tube |
R |
Splice Tray (customized dimension) |
A11 |
|
80x20x6 steel tube |
X |
Custom Specifies |

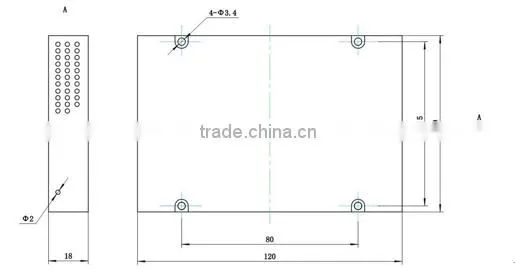

Package Drawing (mm)

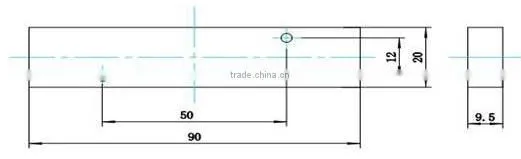

1) 90 X20 X9.5mm

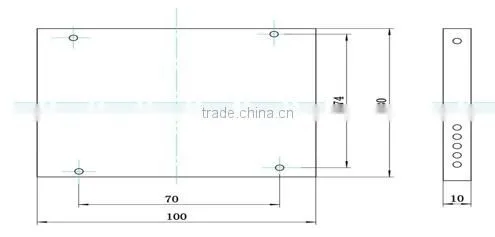

2) 100 X80 X10mm
3) 120 X80 X18mm

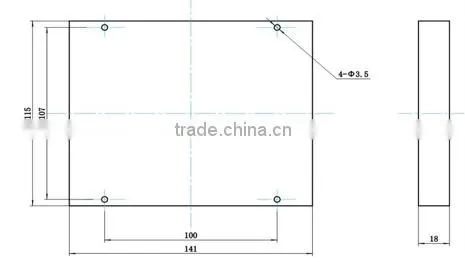

4) 141 X115 X18mm
Packaging
one piece in a platic bag.
Several bags in a carton of 54*39*35cm
Shipping
goods shipped by air or by land transporation.
1,Free samples can be provided.
2,OEM service
3,Nice payment terms.
4,high quality products
5,Competitive price,
6,fast delivery
7,New product priority sell
8,Optical Network Project Consultant.
9,New Products development for customer.
10,Cost-effective logistic solution can be chosen for you.
11,The specific sales person to serve our customers so that you can feel easy and efficient.

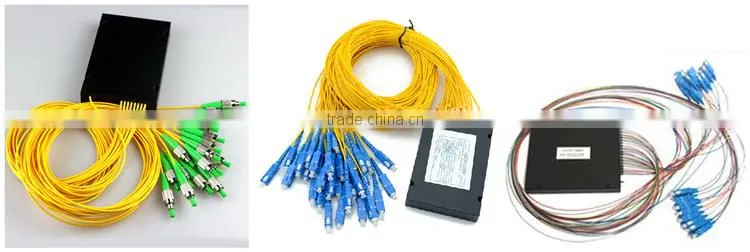

PLC splitters
Adapters
Patch cord
1,Can we get free samples?
Yes. Free samples can be offered for your test. You only need to pay the freight.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3,How will we do if we are not familiar with the optical products?
Don’t worry. We OMC has a team of experts who can offer professional suggestion for customer’s Optical network Project.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5,What is your quality control.
source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
optical test. Our products are strictly tested in accordance with IEC and ITU standard.
we have 30% spot test by Quality Assurance Department after the products finished.
