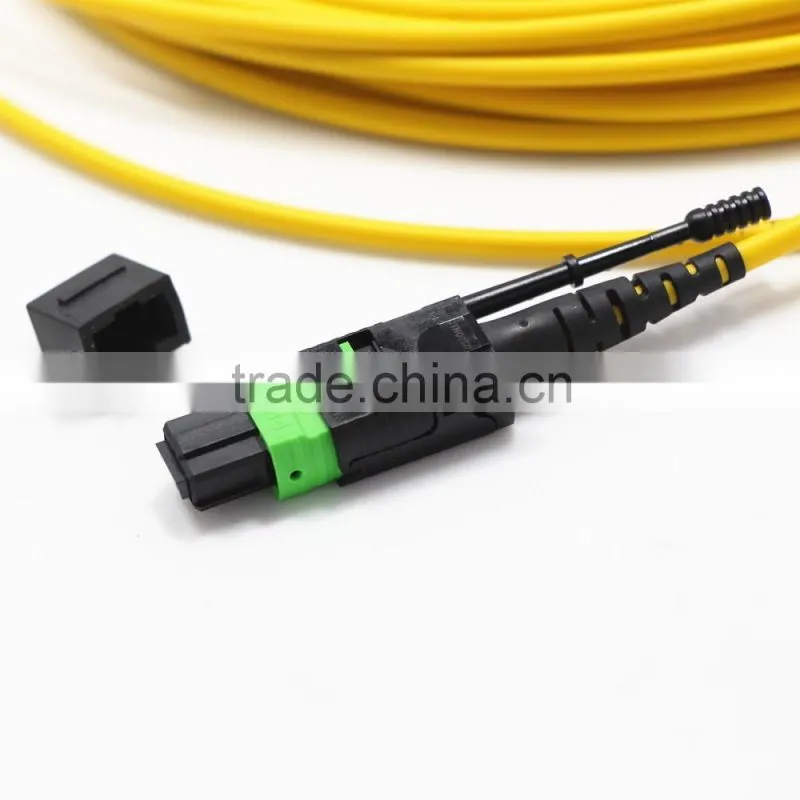

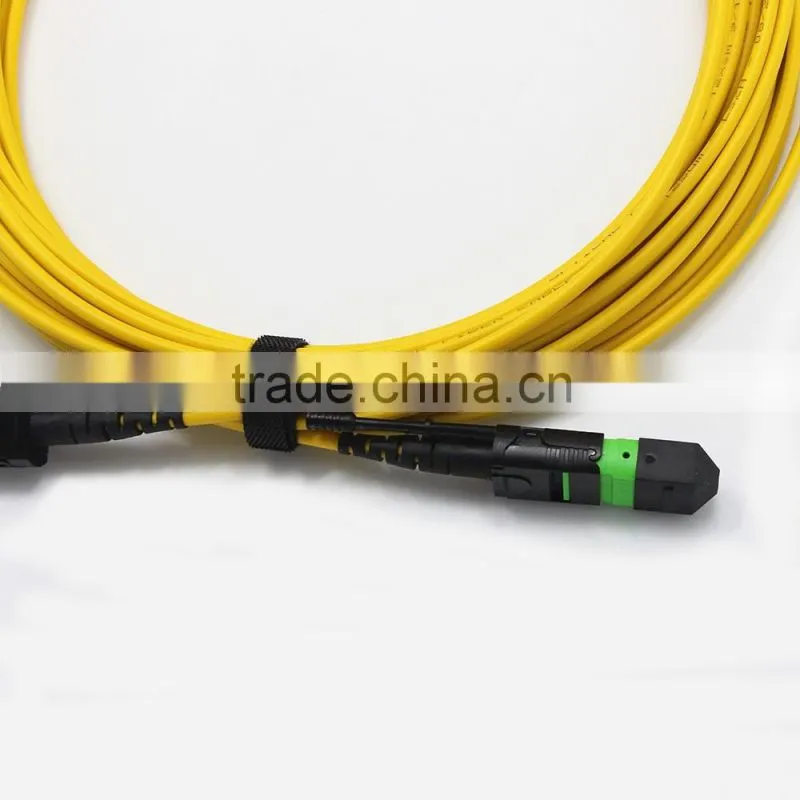

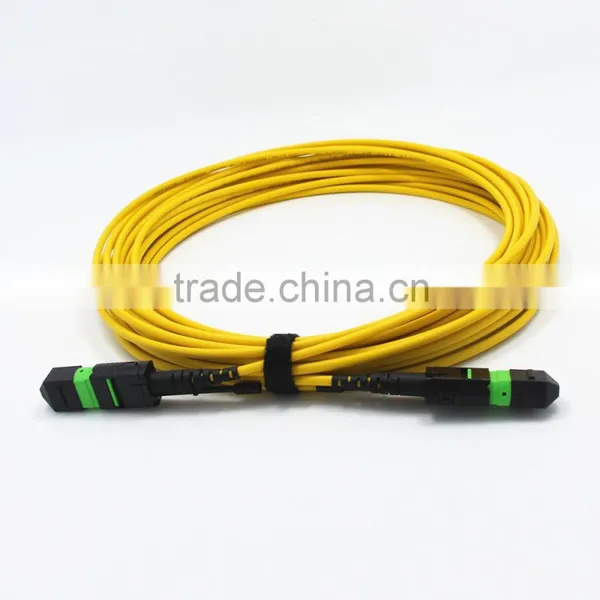

MTP patch cord
MTP Fiber Patch Cord are terminated with MTP connector on both end. All of OMC’s MTP Connectors are from US Conec. MTP patch cord is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment.
MTP products’ Standard:
-Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
-Structured cabling per TIA-568-C
-Parallel Optics
--Optical Internetworking Forum (OIF) Compliant
--InfiniBand Compliant
-InfiniBand
-- 10G Fiber Channel Compliant
-- 40G and 100G IEEE 802.3
-- QSFP
Features:
-Low insertion loss, high return loss
-MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
-Economical solution for mass-termination of fiber
-Designed for low loss and standard loss SM and MM applications
-Ruggedized round cable, oval cable and bare ribbon options available
-Color coded housings available to differentiate fiber type, polish type and/or connector grade
-Good in repeatability and exchangeability
AVAILABILITY:
-Ribbon and round cable available;
-Patch cord, pigtail cable assemblies available.
-MT-MT ribbon patch cord is available.
-MTP Loopback available
MTP patch cord’s Specification:
MPO/MTP’s spec items. |
Single mode (UPC Flat polish, APC 8 degree polish) |
Multimode (PC Flat polish) |
Insertion loss |
Standard loss≤0.7dB;Low loss≤0.35dB |
Standard loss≤0.5dB;Low loss≤0.35dB |
Return loss |
≥55dB |
≥35dB |
Durability |
<0.3dBtypical change, 200 matings |
|
Interchangeability |
≤0.2dB |
|
Tensile strength |
>70N |
|
Operating Temperature |
-40 to + 85°C |
|
Note: Maximum Bandwidths of Different Multimode Fibers
OM1 – 62.5 um Core – 10GBit up to 33 meters, gigabit up to 300m
OM2 – 50 um Core – 10GBit up to 82 meters, gigabit up to 500m
OM3 – 50 um Core, Laser Optimized – 10GBit up to 300 meters, gigabit up to 1000m
OM4 – 50 um Core, Laser Optimized – 10GBit up to 550 meters, gigabit up to 1000m
MTP Interference index
Connector type |
Testing items |
Min |
Max |
MTP APC |
ROC_X(abs)(mm) |
500 |
|
ROC_Y(abs)(mm) |
50 |
||
Angle_X(deg) |
-0.2 |
0.2 |
|
Angle_Y(deg) |
7.8 |
8.2 |
|
Max.DH.All Fiber(nm) |
-600 |
600 |
|
Max.DH.Ave(nm) |
-300 |
300 |
|
Max.DH.Adj(nm) |
-300 |
300 |
|
Fiberheight(nm) |
|
|

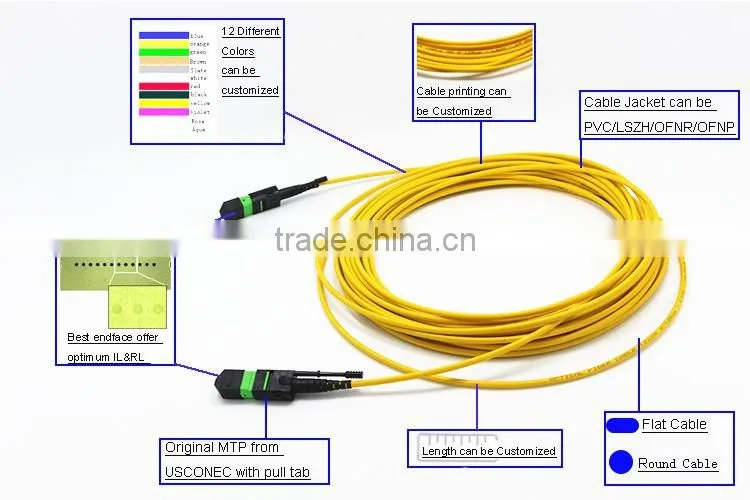

Cable Structure:

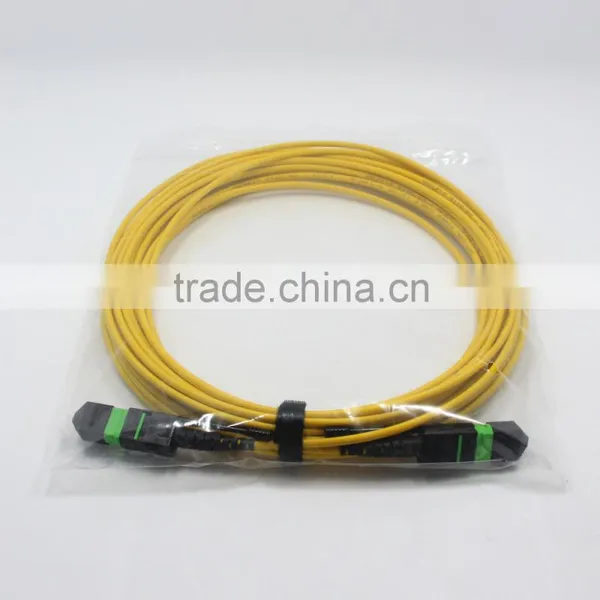

This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
1,Free samples--- we can supply free products for testing .
2,Brand---OEM service acceptable
3,Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4,Quality Level---High quality as per your requirements.
5,Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8,Optical Network Project Consultant---Professional experts help you.
9,New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network’s needs.
Quality is life of OMC. Our firm commitment is to deliver world class product to our customers and forever exceed their expectations. We also offer Solid after sales support i.e. 3 years product warranty under no conditions
OMC treat our customers, suppliers, and employees as our respectable partners. We very happy to share our success with them. Offering best products to our customers, Long-term/Loyal partnership to our supplier and good salary/welfare to our employees. OMC also spare no effort to care our society and environment. With a grateful heart, OMC will go firmly to the bright way that we are longing for.
We hereby gather in OMC, with plentiful passion and professional techniques to service customers all over the world.
1,Can we get free samples?
Yes. Free samples(Total value is below USD30.00) can be offered for your test. You only need to pay the freight. SPECIAL SAMPLES need to discuss for special.
2,What is the quality of the products?
All the products are of high quality. We promise 100% recall policy if they are unqualified.
3, What about payment terms?
We accept T/T (Telegraphic Transfer) in advance. Western Union.
Pay time could be monthly Credit, Net 30days, 100% in advance etc. We can discuss it offline.
4,We are confused that the freight is too high.
Cost-effective logistic solution can also be chosen for you.
5, How do you arrange the shipping?
Soulation Al: OMC take care of everything. Customers only need to collect cargos in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS).
Solution B: Customers assign a Shenzhen logistic company to do the shipping, OMC follow the company's instructions and finish the shipping.
6,What is your quality control.
(1)source guarantee. We have our own long-term suppliers. All the products are POHS certificated and satisfy exporting quality level demand.
(2)quality test. It runs through the whole process from the Material to finished products. Such as package, surface, physical test, optical test. They are 100% tested.
(3)optical test. Our products are strictly tested in accordance with IEC and ITU standard.
(4)we have 30% spot test by Quality Assurance Department after the products finished.
