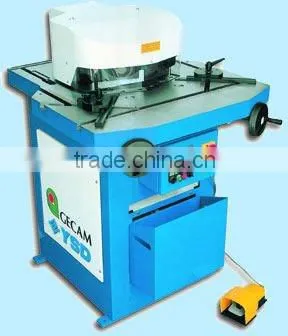

Variable Angle Notching Machine

Variable Angle Notching Machine thumbnail-1
Variable Angle Notching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
YSD
Model Number:
VN2004, VN2006
Contact Supplier Request Quote Chat Now
(YSD) Hubei Tri-Ring Metalforming Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name YSD
Model Number VN2004, VN2006

ADVANTAGES:

1. Strong and simple construction
2.NO maintenance
3.Fixed blades clearance for any thickness and material
4.Corrosion-resistant components
5.High quality components
6.Eco-friendly materials
7.Manufactured according to european safety rules, CE
8. Fast and easily adjustable angles by hand wheels.

STANDARD FEATURES:
1.Strip cutting device with scale with fast adjustment for Max strip size of 200 x 200 mm (optional)
2.Two selfocking stops with moveable and exchangeable stop bar 350 mm in length
3.One set upper blades14° 30′ and 29° 30′ and 1 set bottom blades for stamfes steel.
4.Triplex scales on the working table for fast adjustment of the stops
5.Plexiglass guard for easy vision
6.Moveable foot switch
7.Single and set up stroke
8. Slug box
9.Adjust able stroke
10.Two sheet holders, gas type (VN 2006 only)

Specifcation:

Description
VN2004P
VN2006P
Blade length
KN
200
200
Max. thickness of workpiece
mm
4
6
Shear angle
°
30°~140
30°~140
L=200mm Strokes per minute
min-1
30
30
L=50 Strokes per minute
min-1
45
45
Table dimension
mm
900 x 850
900 x 930
Machine dimension
mm
900 x 900 x 1180
900 x 980 x 1330
Machine weight
Kg
900
1050

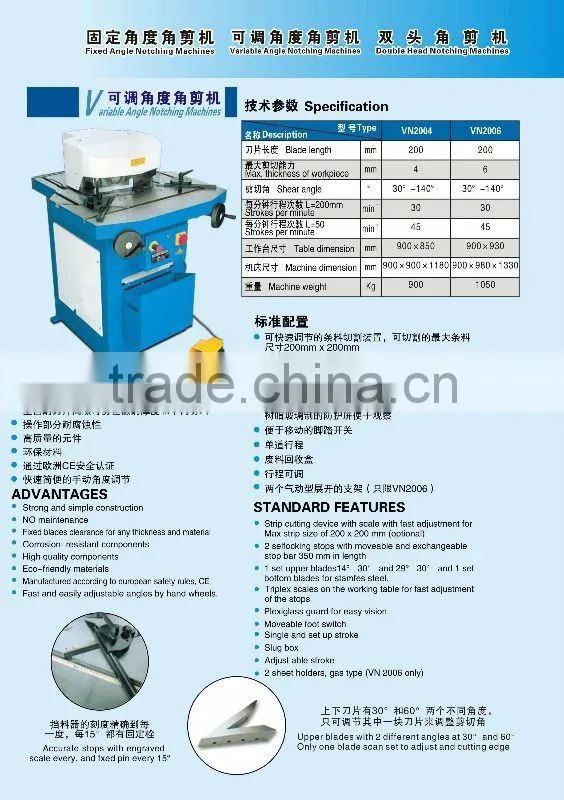

Variable angle notching machine
