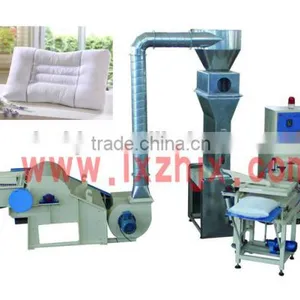

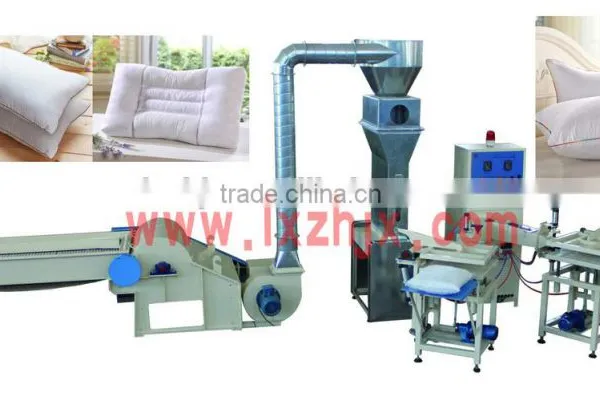

ZXJ-380 AUTOMATIC PILLOW FILLING MACHINE/pillow machine/fiber opening machine
Features:
1) the third generation Pillow Filling Machine produced in our company, and is developed firstly in China . It overcomes the disadvantage of low output and big error in fixing quantity.
2) Capacity: 120kg/h
3) Error in fixing quantity:±25g
4) Pressure: 380V
5) Total power: 13kw
6)Packing size: One machine in two boxes
(L×W×H)1590×2590×1600mm,G.W.: 1160kg N.W.: 1000kg
1590×2230×2050mm,G.W.: 800kg N.W.: 650kg
Working principle:
The raw material suitable for ZXJ-380 Automatic Pillow Filling Machine is polyster hollow fiber(either siliconized or non-siliconized) 7-15D×32-64mm.

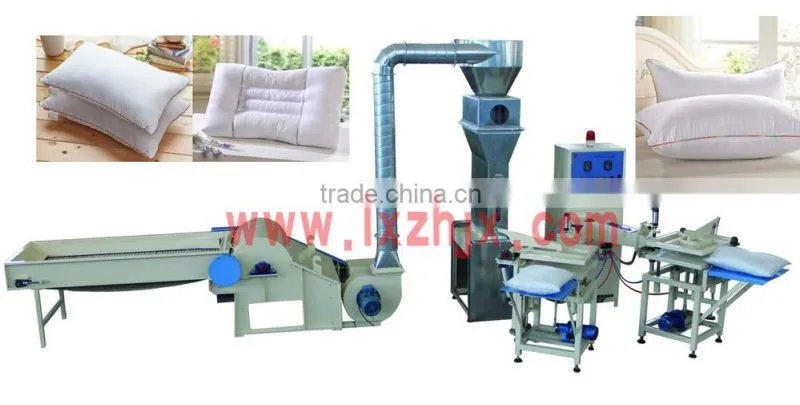

Feed the fiber evenly to opening machine (whose capacity is 120kg/h), the fiber is opened and blew through pipes to a silo by a fan. There’re photo-switches on the silo, when the fiber inside is full, the opening machine will stop automatically.
Then the fiber drops down from silo and blew again by a fan to filling nozzle, then be blew to pillow case. There’re two filling nozzles which work in turn. When one is working, you can cover pillow case on the other. The clamps on nozzles are controlled by foot switch.
There’re two worktables close to the nozzles, which can flap the pillow during filling in order to make filling even.
New Model 01:

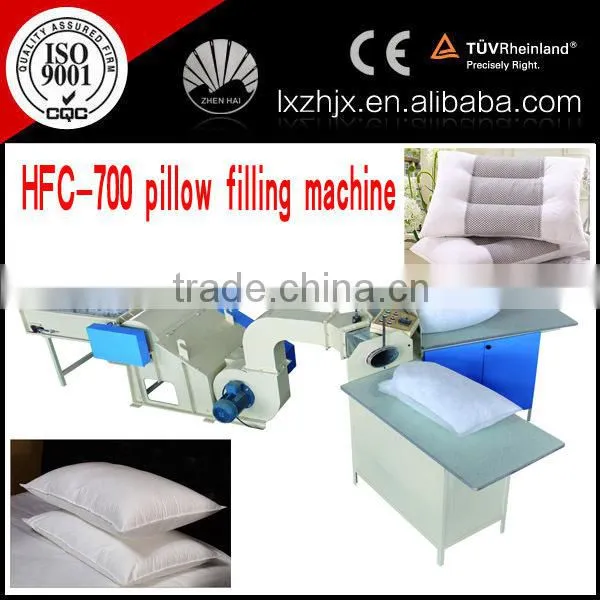

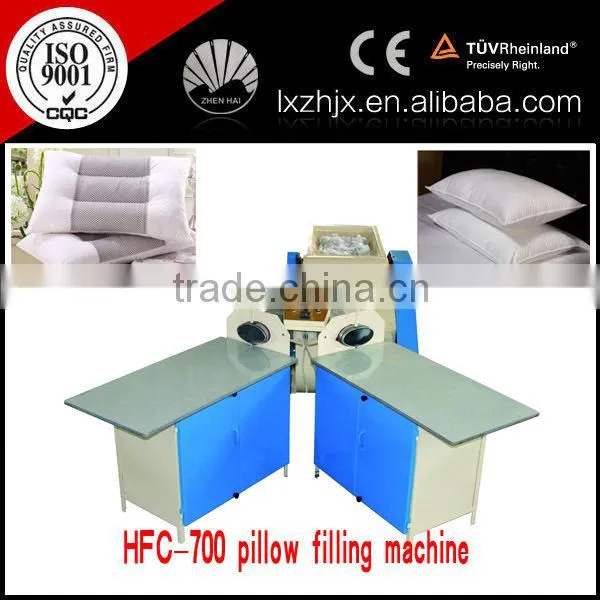

HFC-700 Pillow Filling Machine For Toys,Cushions etc
Usages:
Mainly used for opeing fiber material then fill pillow and cushion,etc. Characteristics: easy and safety use, even and plump filling, continuous work,filling quantity can be adjusted according to requests, with converter plant.
Specifications:
Power supplier: 380V,three phases, 6.5KW
Capacity: 50-60kg/h
Weight error: less than 100g for each pillow
M/C dimension: (L×W×H)5890×2850×900mm
Packing size: (L×W×H)2200×1300×2000mm
New Model 02:

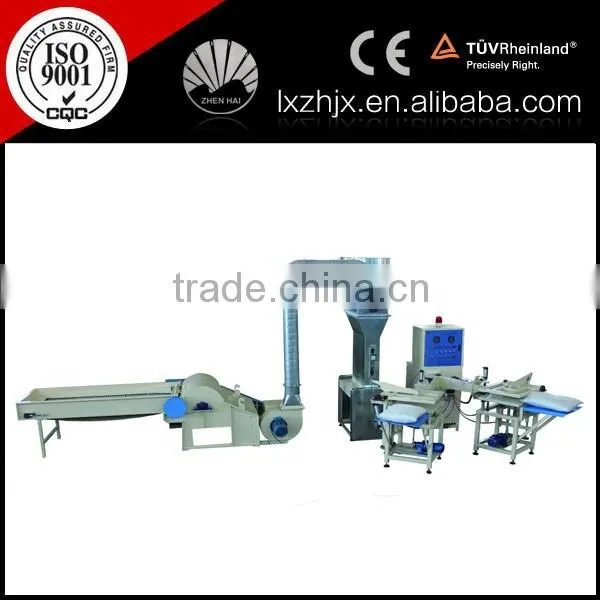

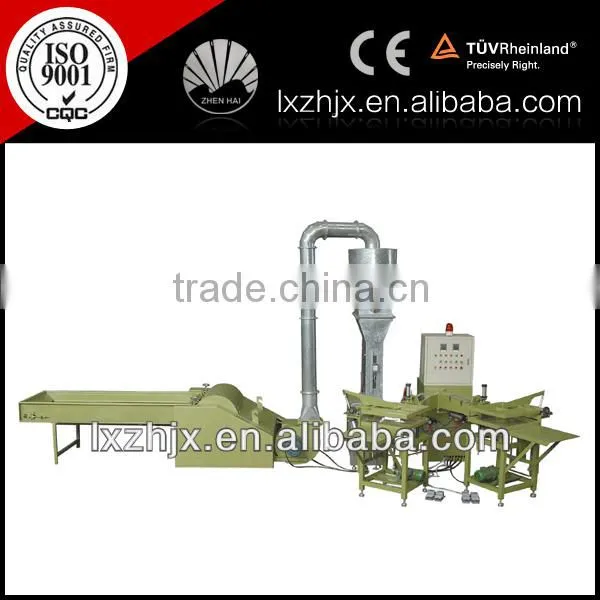

ZXJ-380+HFM-2000 AUTOMATIC PILLOW FILLING MACHINE
(CAN MAKE BOTH OPENED FIBER AND BALL FIBER)
1, wooden case/polywood case
2, plastic foam packing
3, nude packing
1, Engineers available for overseas service according to request.
2, Any machine from our factory has one year guarantee.
3, 24-hour technical support via email,telephone,skype,whatsapp,TM etc.
4, manual book in English version with details.
Langxi zhenhai machinery Co., Ltd., with a total area of 20,000 square meters, is a professional textile machinery manufacturer. Our currently available quilting machines, pillow filling machines, compress packing machine, ball fiber machine, nonwoven machines include needle-punched production line, geotextile line, asphalt mixing plant, stiff wadding line, glue-free wadding line, spray-bonded wadding line, quilt wadding line. We also provide technique supports and after-sale services.
Being a company with 20 years of experience in design and manufacturing, we have done a good job in researching and developing equipment and products. With advanced technology, we promise to customers that all machines delivered are qualified ones that have already been tested. Our over ten production lines can display the running condition of the machines and the most advanced technology.
We have a professional technical team that provides such supports as techniques, technology and equipment. In addition, we have a well-trained and experienced team providing good after-sale services. We also provide with installation, testing and training services according to customers’requirements.
Insisting on the principle of "Every customer is important to our brand and image", we are enjoying good reputations both at home and abroad. Our products have been sold to many countries and regions such as Japan, the Middle East, South and North America,and the Occident. Our brand has become a famous trademark in textile machinery like nonwoven industry field.
We warmly welcome you to contact us for more relative information about our quilting machines and nonwoven machines . We are sincerely looking forward to cooperating with all customers.
1,How to contact you?
You could contact us via TM,wechat, QQ, email or call us directly.
2,Are you factory or trading company?
We are factory with foreign trading property. That is to say,we produce machines and we export to customers by ourself.
3,How many countries have your products been exported to?
Until now our machines have been already exported to more than 100 countries.Welcome to visit us.
4,Which payment term is accepted?
30% in advanced payment by T.T and 70% paid before shipment by T.T.
Welcome for your inspection for the machines before shipment.
5,Can you make speicial voltage of the machines?
yes,usually the machines are made with 380v,50hz,3 phases or 220v,50hz,single phases.If you need special, please inform us and we customize.
