Help Center30kv High Voltage Power Silver Mica Capacitor
Related Products
-
30kv High Temperature Mica Paper Capacitor Big CurrentUS$ 11 - 100MOQ: 100 Pieces -
3kv Big Current Board Use Silver Mica CapacitorUS$ 11 - 100MOQ: 100 Pieces
-
3000v High Frequency Silver Mica CapacitorUS$ 10 - 100MOQ: 100 Pieces
-
Paper Mica Capacitor 2kv Used in Big Current BoardUS$ 11 - 100MOQ: 100 Pieces
-
8kv High Voltage Mica Capacitor Bank ManufacturersUS$ 10 - 100MOQ: 50 Pieces
Product: silver mica capacitor
Feature:
Using the best mica paper 511 as material,dipping high temperature epoxy resin.
High frequency,high voltage and big current.
Very stable at big current circuit.
General Characteristics:
Temperature Range: -40℃~+85℃
Capacitance Tolerance: ±5%,±10%,±20%
Relative Humidity: 80%, at +40℃ can be short time at 95~98%.
Atmospheric pressure: 6x104Pa~1.04x105Pa
Vibration: frequency 10~500Hz, acceleration: 10g
Working voltage: 2KV~30KV
Working current: 5A~50A
High voltage silver mica capacitor application:
|

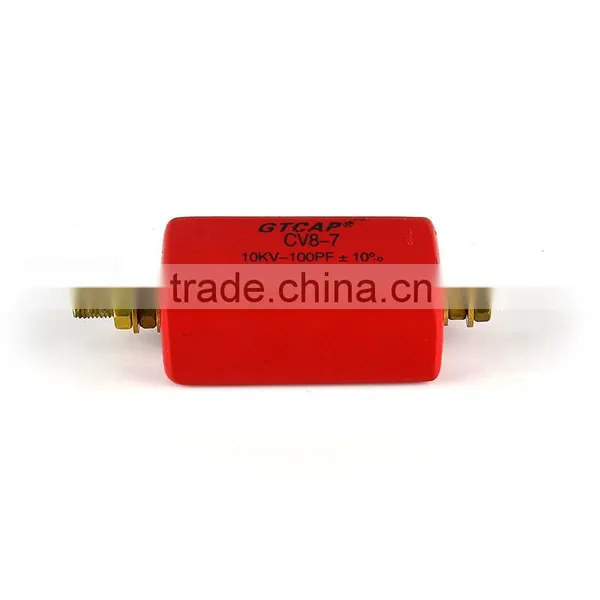

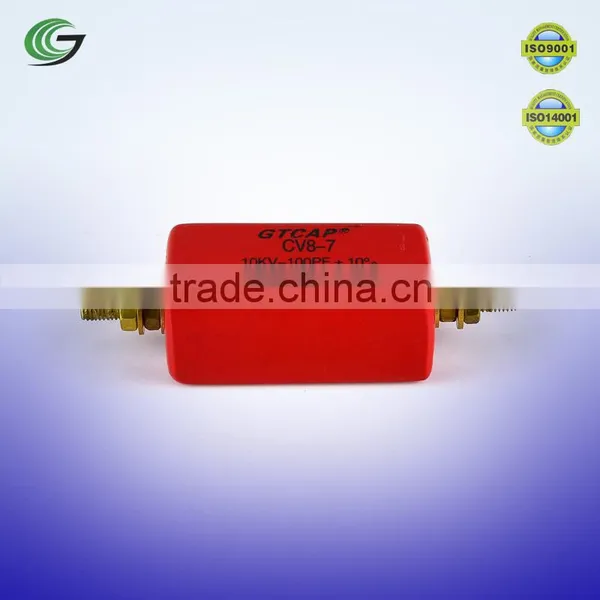

GT CV8 series mica capacitors are suitable to high frequency, high voltage, big current circuit.
Like high frequency feedback circuit,high frequency resonance circuit and pulsecircuit etc. Widely use in
|
|

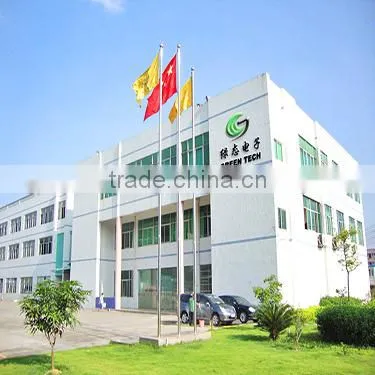

Shanghai Green Tech is high quality passive components supplier and energy storage system solutions provider. And has been providing various capacitors to electronic industry with GTCAP brand since 2005.
|
| |
| |
1) All of GREEN TECH silver mica capacitor quality guaranteed 1 year
2) Short lead time, Most cost-effective
3) Over 20 years experience in capacitor industry
4) Reply inquiries within 24 hours
