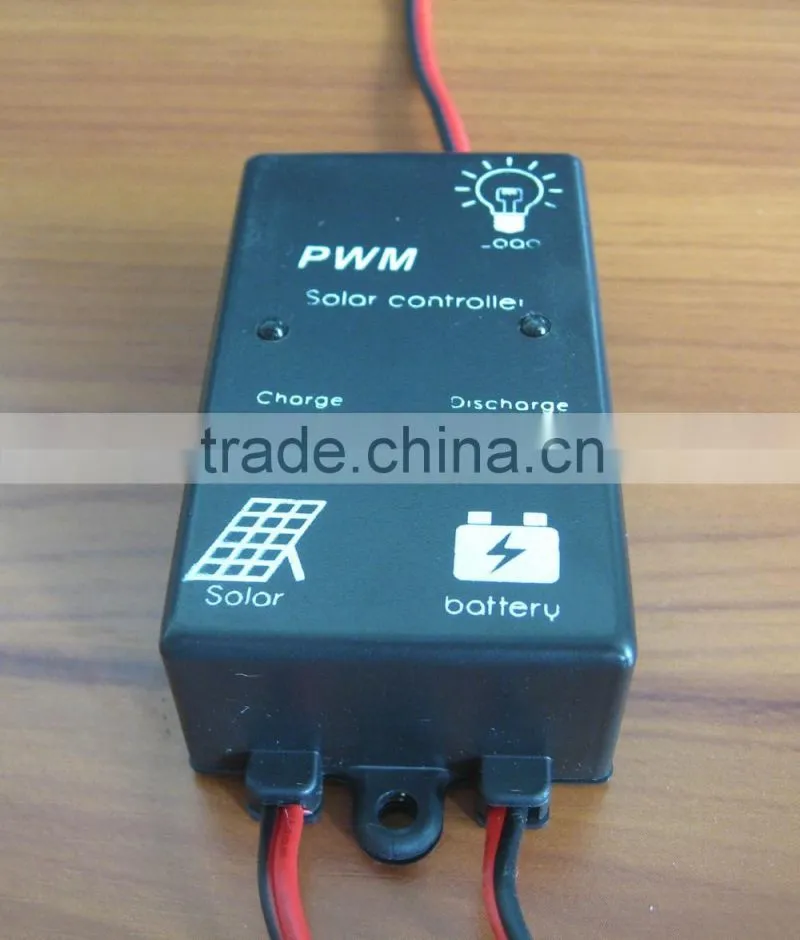

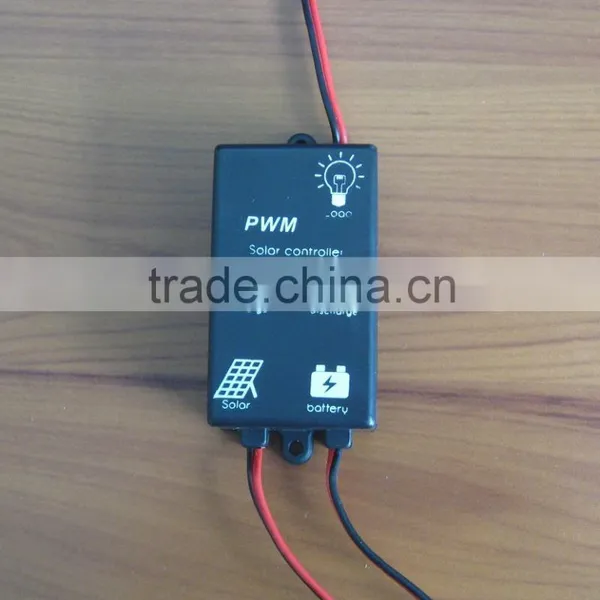

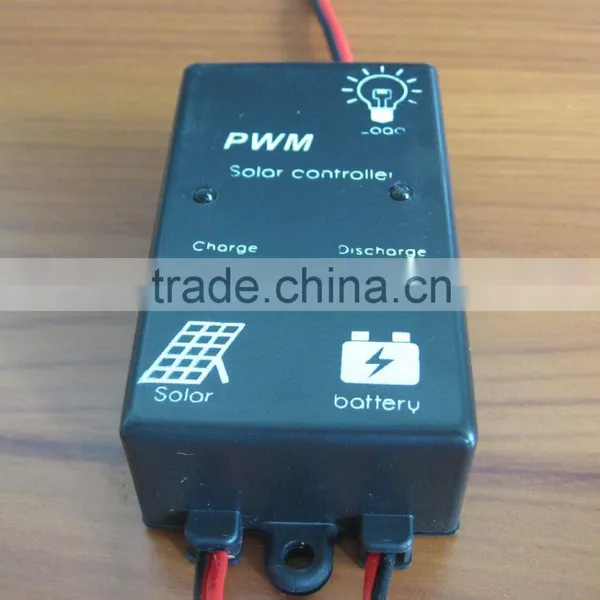

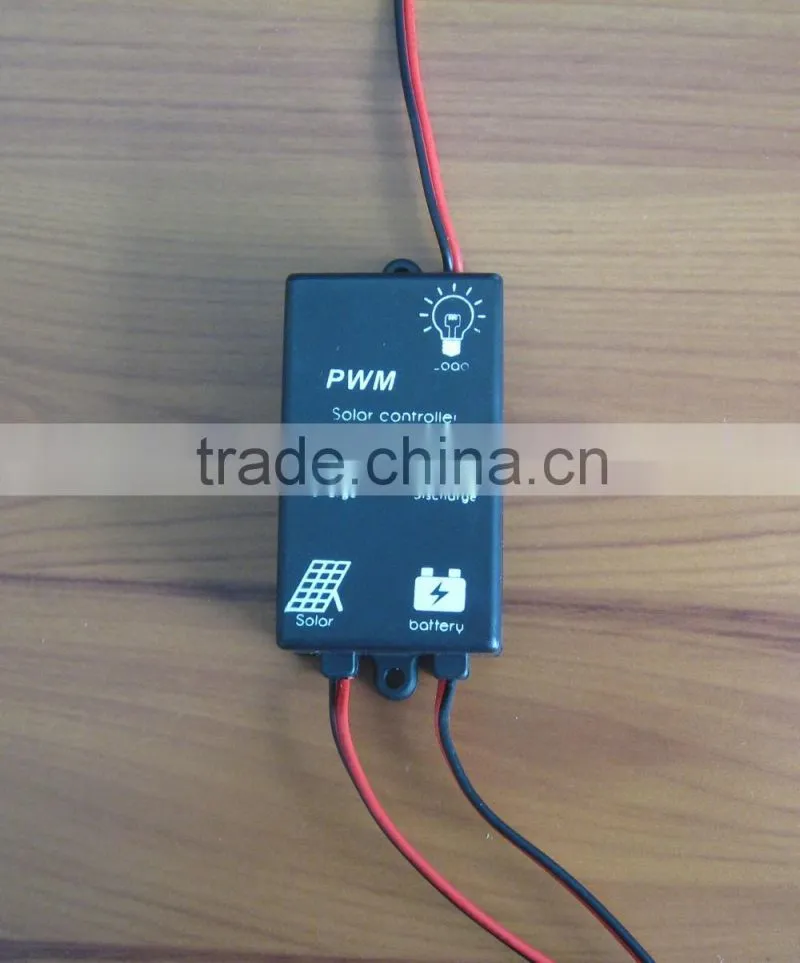

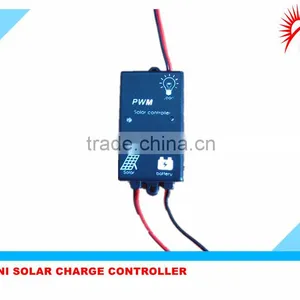

1A 12V Mini Solar Charge Controller

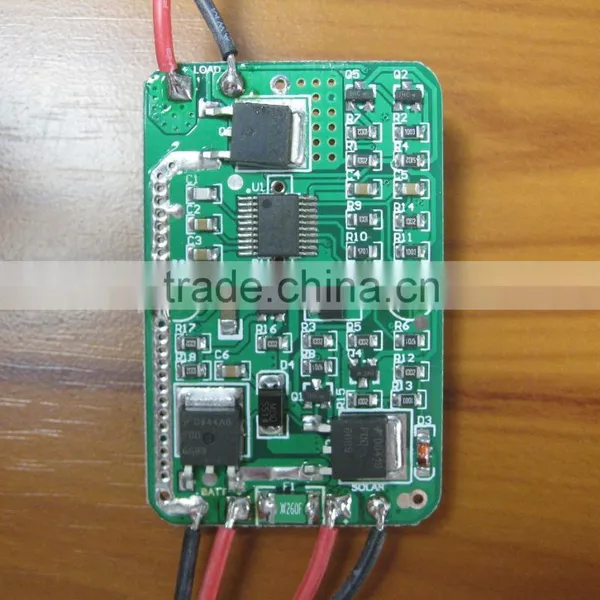

Introduction:The SC-Series solar charge controller applies a microchip for intelligent control.The charging efficiency can be highly increased by using dual-mos charging circuit ,compared to normal diode for reserve current protection. The controller can extend the battery life with build-in 4-stage PWM charging program.It is equipped with various of protection function such as over-charge protection,over discharge protection ,over-load protection,reverse current protection.
Model |
SC1201 |
SC1203 |
SC1205 |
Max charge current |
1A |
3A |
5A |
Max discharge current |
1A |
3A |
5A |
Over load |
About 2A |
About 4A |
About 6A |
Rated battery voltage |
12V(Only for Lead-acid battery) |
||
Max solar panel input voltage |
21V |
||
Equalize voltage |
14.8V |
||
Constant voltage |
14.2V |
||
Float voltage |
13.8V |
||
LVD |
11.2V |
||
Discharge return |
12.6V |
||
Charging control |
PWM 3 stage |
||
Standby lost |
2.8mA@12V |
||
Min start voltage |
4.5V |
||
wire |
20AWG*10cm |
||
Size/weight |
60x25x18mm/50g |
||
Paper box;Pallet
OEM Available;
System configuration service;
Technical support.
SUNSUN has its own technical team,including a number of experienced sotrware engineers,hardware engineers,they can customize various specs products and system for clients.
Q:I want to start solar business,but i don't know what product is hot sale!
A:Leave it to us,we will recommed the most fasion hot sale products to you!
Q:I want to use solar system for electical application,but i don't know what components i need!
A:Leave it to use,we will configuration the solar system base on your requirements!
Q:What is the solar charge controller warranty?
A:Solar charge controller 1 year.
