Specifications
6 Cavity Bottle Blowing Machine/Full Automatic1.Semi-auto or Full- auto
2.0.1-2L PET Bottle.
3.1000-8000BPH
4.CE

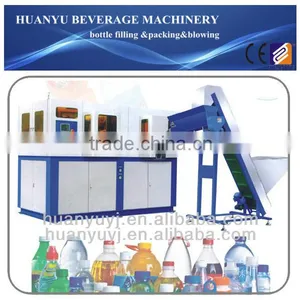

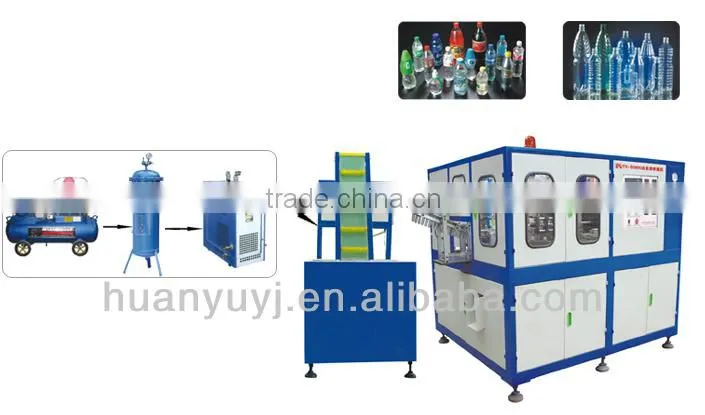

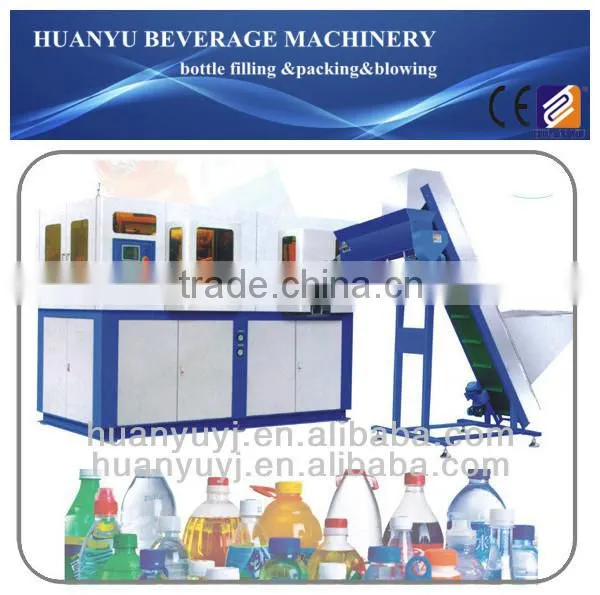

6 Cavity Bottle Blowing Machine/Full Automatic
Features
1.Stable performance with advanced PLC.
2.Conveying preforms automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater 5.with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
Full Automatic Bottle Blowing Machine Parameters:
ITEM |
HY-6A |
Theoretical output |
6000 |
ntainer volume |
2L |
Max.neck diameter |
38MM |
ntainer diameter |
120MM |
ntainer height |
250MM |
Number of cavity |
6 |
Number of lamp |
24 |
Max.heating power |
90KW |
Installation power |
100KW |
Actual power consumption |
50KW |
Operatating low pressure |
0.8-1.0Mpa |
Low pressure consuming |
2000L/min |
Blowing pressure |
2.5-3.5Mpa |
High pressure consuming |
2.8~3.5m3/min |
Operating pressure |
0.3-0.5Mpa |
Temperatuer |
-10°C~55°C |
Flow rater |
50L/min |
Machine dimension |
5.0×1.5×2.0m |
Machine weight |
5000Kg |
Full Automatic PET Bottle Blowing Machine: 6 Cavity:(5000-6000BPH):
Semi-Automatic Bottle Blowing Machine(800-1500BPH) :2 Cavity
ZhangJiaGang Huanyu Beverage Machinery Co.,Ltd is a professional Manufacturer of Beverage Filling Machine in China. Main Product:
bottled water filling machine,Juice/Tea drink filling machine,Carbonated drinks/Beer Filling machine,Pop can Filling machine,water treatment equipment, blow molding machine, Bottle Unscrambler , labeling/packing machine and so on.
More detailed information .Please feel free to contact us.
