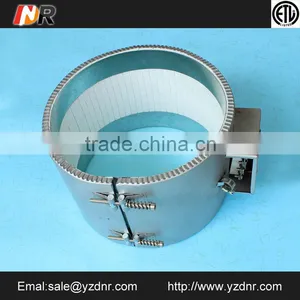

DNR High Watt Density Ceramic Band Heater

DNR High Watt Density Ceramic Band Heater thumbnail-1
DNR High Watt Density Ceramic Band Heater photo-1
US$ 2 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Heater
Power Source:
Electric
Contact Supplier Request Quote Chat Now
Yangzhong Dingnuoer Electric Appliance Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Air Heater
Power Source Electric
Place of Origin Jiangsu, China
Brand Name DNR
Dimension(L*W*H) Customized
Voltage 220v
Power(W) 1500w
Certification ETL; ISO9001;ISO14001
Warranty 1 year



Product Description

  • Sheath material: stainless steel ss304/316/321
• Heating resistance wire:Cr20Ni80
• Working temperature: max 700°C
• Diameter range (mm):2.6mm-30mm
• Length range (mm):15mm-3000mm
• Diameter tolerance: metric -0.02/-0.06mm
• Length tolerance: ±1mm
• Power tolerance: +5%,-10%
• Rated voltage (110-220):max1.27 times
• Insulation resistance: min5Ω
• With(and voltage:1500v/min)
• Designed life:3000 hours
• Power density:
1)  -heating in mold: 45w/cm2(max)
2) -heating in water: 67w/cm2(max)
3) -heating in static air: 10w/cm2(max)
4)  -heating in flowing air: 18w/cm2(max)
5) Wire lead: fiberglass









Our Services

Supply the best solution for your request,OEM, technical supporting



Packaging & Shipping

 Delivery by express,air or sea.

Outside packing with carton or wooden case,inside with plastic bags



Company Information

  YANGZHONG DINGNUOER ELECTRIC APPLIANCE CO., LTD.(short for DNR next), founded in 2005, is a high-tech industry integrated the production and operation.Mainly engaged in the research and development of non-standard electric heating elements.specialize on the high power density, high temperature environment, ultrahigh life-span products.
