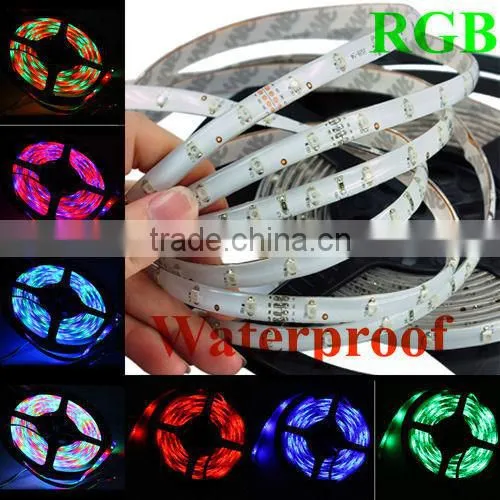

3528SMD Led Strip ,RGB Color

3528SMD Led Strip ,RGB Color thumbnail-1
3528SMD Led Strip ,RGB Color photo-1
US$ 10 - 11 MOQ: 1 Roll
Key Specifications
Get Latest Price
LED Light Source:
3528SMD
Type:
Flex LED Strips
Input Voltage(V):
12
Contact Supplier Request Quote Chat Now
Shenzhen Star Sources Lighting Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 3528SMD
Type Flex LED Strips
Input Voltage(V) 12
Lamp Power 60
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 30000
Lamp Body Material Other, Silicon
Certification CE
Emitting Color RGB
Place of Origin Guangdong, China
Brand Name Allledlight
Model Number SMD3528-300LED-5M-M

Specifications

3528SMD led light strip 1. High lumen LED strip light
2. PVC in high quality
3. Best price for all color
4. Easy installation

3528SMD led strip ,RGB Color - 16 Colors


LED Strip Light Specifications:

Model No

SMD3528-300LED-5M-M

Size

width: 10mm, Thickness: 2mm

LED Quantity

60led/Meter

Total SMD FOR 5M

300SMD/5Meter

Luminous Flux

270-300 Lumens/Meter

Color

RGB Color (Multi Color)

Output Power

48W /Roll



Input volts

DC 12V/24V,Or 110V/220V(Need 240v AC to 12V DC Power Supply )

Long life span

50,000hrs

Working Temperature

-25 - 60

Beam Angle

120degree

LED Strip Light Features:

- Superbright 3528 SMD top LED, high intensity and reliability.
- Long life span 50,000+ hours
- Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
- Flexible ribbon for curving around bends
- Low power consumption
- Color: RGB
- LED Type: 3528 PLCC-2 SMT SMD LED (Waterproof)
- LED Quantity: 300 leds/5 Meter or 60 leds/Meter
- Size: L500cm (5M) x W0.8cm x T0.25cm
- Package: 5 Meters / Reel
- View angle:120°
- Working Input Voltage: 12VDC
- Working Current/meter: 0.4A
- Output power: 48W /5 Meter
- Luminous Flux: 270-300 Lumens/Meter
- Working Tempreture:-20° to 50°
- Drive Mode:Contant Voltage

24 Key IR Remote Controller:
   Connection mode: Common Anode(+)
   Input: 12V
   Output: 12V
   Max load current:2A each color
   Working Temperature: -20°C-60°C
   Control box dimension: 50mm x34mm x22mm
   Remote controller dimension: 85mm x 52mm x 6mm
   Remote controller battery 3V: 1xCR2025(Excluding)
   On: Turn on Power.
   Off: Power off.
   R: change color to red.
   G: Switch to green color.
   B: change color to blue.
   FLASH: color changing automatically, quickly jump.
   STROBE: automatically change color, gentle jump.
   FADE: automatic color change, gradually move quickly.
   SMOOTH: automatic color change, gradually move smoothly.

LED Strip Applications:

- Widely used for home decoration use, Car,hotels, clubs, shopping malls
- Architectural decorative lighting, boutique atmosphere lighting
- Extensively applied in Backlighting, concealed lighting, channel letter lighting
- Emergency & security lighting, advertisement sign lighting
- Decorative lights for holiday, event, show exhibition
- Applicable for automobile and bicycle decoration, border or contour lighting



3528SMD led strip ,RGB Color



3528SMD led strip ,RGB Color

LED Strip Light IP65 standard :

Our SMD lights is up to the IP65 standard which will complete protect from entry of dust & protect from a low pressure jet of water in any direction. This will allow the lights work under water and convenient to clean. IP ratings International Protection ratings are covered in Australian Standard AS1939,IP65 is the most commonly used in the manufacture of electrical products.

3528SMD led strip ,RGB Color

PCB Color :white,yellow,black 3528SMD led strip ,RGB Color

About SMD 5050 LED Flex Strips:

They are called SMD 5050 because the dimensions of the chips are 50mm x 50mm. These LED chips have 3 LED chips in one housing (sometimes called tri-chips), and are a lot brighter than 3528 LED chips. They are used when you need high illumination for your project area. Theoretically, SMD 5050 LEDs can offer a light output 3 times that of the 3528 strips, and therefore the 5050 LED is well suited for lighting up areas that may be subject to high levels of ambient light. Though they produce more heat, it is still drastically lower than other lighting options. The 5050's are different from the 3528 LEDs in that 5050s can combine the three different chips to inside the housing to create millions of color variations. The 3528 SMD led strips come in one color only.

LED Strip Light Package include:

1 x 5 M 3528 SMD RGB Flash LED Strip
1 x 24 key Remote controller

LED Strip Light More Pohtos :

3528SMD led strip ,RGB Color

3528SMD led strip ,RGB Color
