Standard Voltage Sensor Module Test Electronic Bricks For Arduino Robot

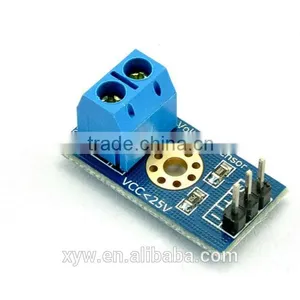

Standard Voltage Sensor Module Test Electronic Bricks For Arduino Robot thumbnail-1
Standard Voltage Sensor Module Test Electronic Bricks For Arduino Robot thumbnail-2

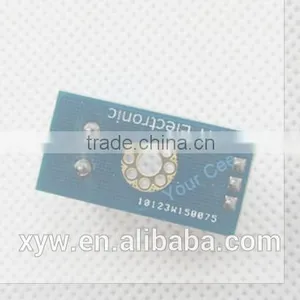

Standard Voltage Sensor Module Test Electronic Bricks For Arduino Robot photo-1

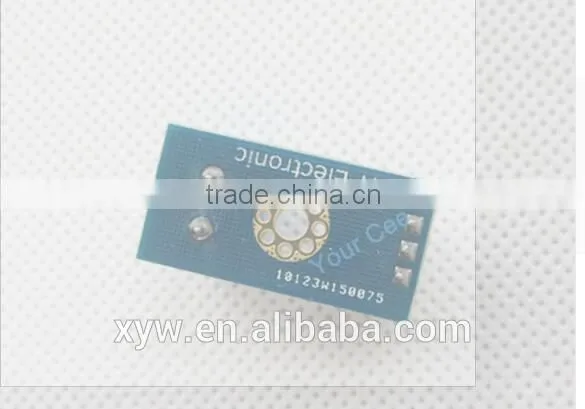

Standard Voltage Sensor Module Test Electronic Bricks For Arduino Robot photo-2
US$ 0.49 - 0.79 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Voltage Sensor Module
Model Number:
Voltage Sensor Module
Contact Supplier Request Quote Chat Now
Shenzhen Xiangyangwei Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Voltage Sensor Module
Model Number Voltage Sensor Module
1. Product Details
  1. This module is based on principle of resistive voltage divider design, can make the red terminal connector input voltage to 5 times smaller.
  2. This module analog input voltages up to 5 v, the voltage detection module input voltage not greater than 5Vx5=25V (if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V).
  3. This module AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V(5V/1023), so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V

2. Parameters
  1. Voltage input range : DC0-25 V
  2. Voltage detection range : DC0.02445 V-25 V
  3. Voltage analog resolution : 0.00489 V
  4. Output interface : "+ " connected 5/3.3V, "-" connected GND, "s" connected AD pins
  5. DC input interface : positive with VCC, negative with GND

3. Reference Code
#include <Wire.h>

int val11;
int val2;

void setup()
{
 pinMode(LED1,OUTPUT);
 Serial.begin(9600);
 Serial.println("Emartee.Com");
 Serial.println("Voltage: ");
 Serial.print("V");
}
void loop()
{
 float temp;
 val11=analogRead(1);
 temp=val11/4.092;
 val11=(int)temp;//
 val2=((val11%100)/10);
 Serial.println(val2);
 delay(1000);
}
