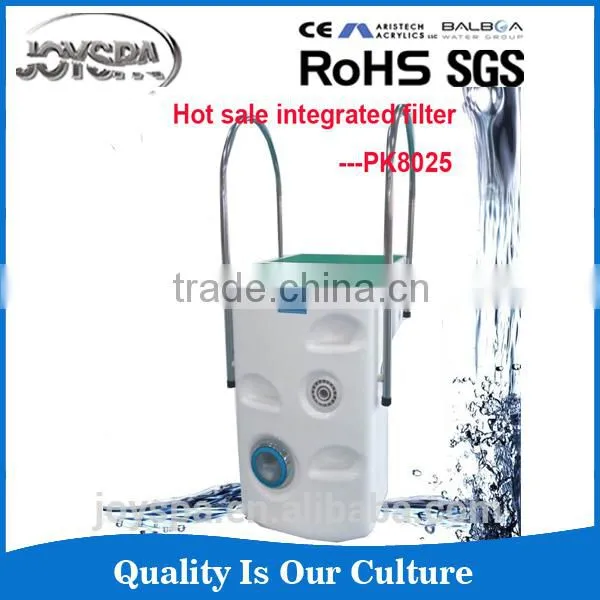

Wall mounted pool water filter/integrated pipeless swimming pool filter with light
Model |
Product parts |
Functions |
|
PK8025 Pipless integrative filter 220v filter |
2Hp pump(220V/50Hz): 1pcs |
1)Flow Rate:25m3/h, Energy saving filtration system. |
Automatic chlorine feeder:1pcs |
2) High efficiency disinfection system |
|
Filter Media filter bag with basket:1set |
3)Precision ≤5 μ (High |
|
Shell for Acrylic(outside finish)+ fiberglass(inside part) |
4)It's strong and not dehiscence |
|
time control box: 1pcs |
5)full-automatic electronic control system |
|
1pcs ABS big jet and 1pcs ABS Air jet: 2pcs |
6)Cross current swimming |
|
Φ22cm underwater S.S LED light/ 100w light, transformer: 1pcs |
7)illumination system(LED or not) |
|
Pipe and valve accessories inside |
8) Easy installation and simple maintenance |
|
304 stainlness steel rail:2pcs |
9)for ladder using |
|
size:1120x690x1100mm |
10)No piping and no plant room. |
|
Ozone disfection:500mg(option) |
11)good for body |
|
|
stainless steel Jet (option) |
|
|
|
|
Filtration including:
1) Complete Filter system
2) Complete cyclic system
3) Disinfection system
4) Time Controller
5) Illumination system
6) Cleaning system
Features:
1) motor power(pump): 3HP 220V/50Hz
2) flow rate: 35 cbm/ h
3) filter media: filter bag & basket
4) disinfection: sterilizer feeder (chlorine), Ozone (optional)
5) external controller: with time
6) enclosure: lucite acrylic
7) installation: wall mounting
8) light: 100W/12V or LED light(10W/12V)
9) Jet: ABS jet or S.S jet ( 2pcs)
10) One-time molding
10) impact bath (optional)
11) size:1120 x 690 x 1100mm
Advantage:
1) No need pipe, Easy to install
2) More funtions( filter, spa, illumination, impact bath, cleaning, ladder)
3) One-time molding, durable for long time
4) Acrylic is very shine and bright
5) Acrylic is easy to clean and not easy to change color
6) UV surface shell
7) No need machine house, save money
8) Change to traditional filter design (replace sand filter)

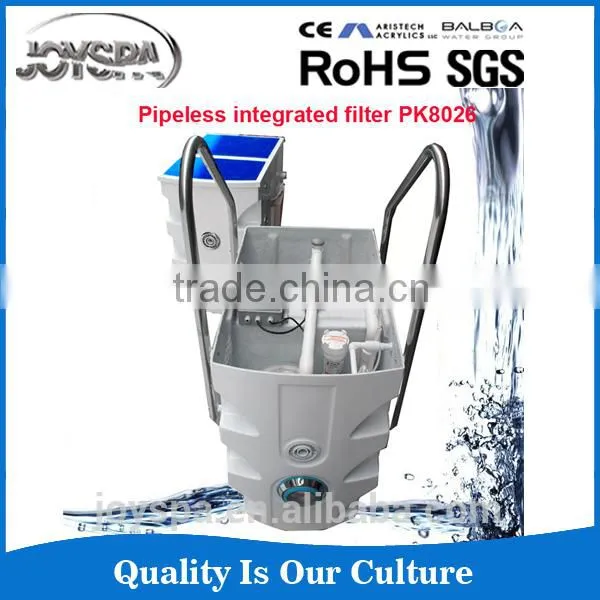

Parts of Integrated Filter:
1) Stainless-steel rail
2) Cable pipe
3) Transformer and terminal box
4) Sewage pipe
5) Cartridge filter
6) Sterilizer
7) Injector nozzle
8) Swimming pool lamp
9) Water inlet
10) Water outlet
>>> Compare with troditional swimming pool filter
pools sand filters Packing picture
pools sand filters More model picture
Our Show Room
Ideal for:
Small pool (less than 400 cbm)
1) Hotels
2) Motels
3) Clubs
4) Condos
5) Apartments
6) Homes
