High Speed 2 Lines T-shirt Bag Making Machine for 500pcs/min

Name: High Speed 2 Lines T-shirt Bag Making Machine for 500pcs/min
Brand: MINGLI
SKU: 134729413

US$ 8,000 - 11,000 MOQ: 1 Set

Key Specifications

Condition:

New

Machine Type:

Bag Forming Machine

Bag Type:

T-shirt Bag

Ruian Dongchen Packaging Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO / WENZHOU

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Machine Type Bag Forming Machine

Bag Type T-shirt Bag

Material Plastic

Computerized Yes

Place of Origin Zhejiang, China

Brand Name MINGLI

Model Number DC1000

Voltage 380/220v

Power(W) 25kw

Dimension(L*W*H) 2800*1800*1600mm

Weight 2000kg

Certification ce

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

YOUTUBE VIDEO

Product Description

High Speed Automatic 2 lines T-shirt Bag Making Machine for 500pcs/min

Features:

1. This is machine is used HDPE, LDPE, biodegradable materials(corn starch) as raw material to produce natural color roll film and printing vest bags. Use computer programming control system, servo motor automatic fixed length, from feeding, back, cutting, punching holes and transporting only in one.

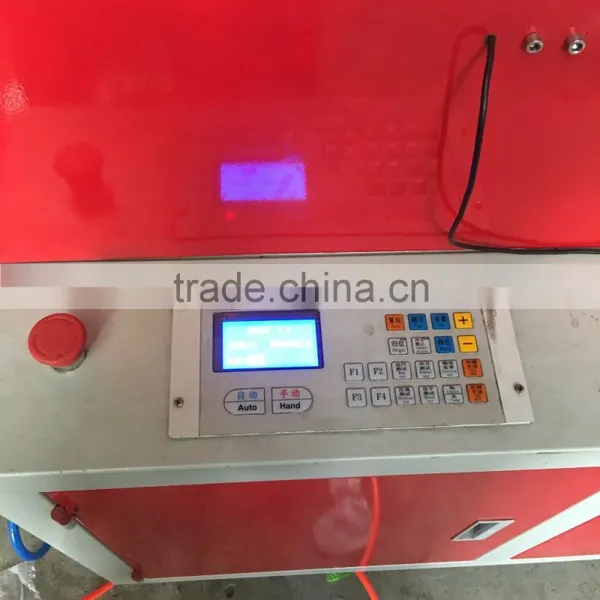

2. Configuring two servo motor control system and computer control, LPC LCD display with photoelectric eye tracking control, intuitive and easy to operate, which can produce both color bag.
3. Host imported converter analog control, automatic feeding system enables smooth bag, seal cutting accurate. Automatic presses for folding device, the conveyor belt to send bags function, easy to collect.
4. Blow-type discharge system, with integral design of the bag bottom, set bags neatly, the gripping position accurate punching.
5. Cutter uses current independent heating, high-precision temperature controller automatic temperature control, easy operation, accurate temperature control.
6. The whole machine is automatic control electronic circuit IC, socket design, dress up easily; and have no material, cutting, blocking material stop function.
7. Our company has many years' skills in the plastics machinery industry leading technology, has made a breakthrough in research and development, to create a new generation of high-speed bag making machine, notching machine, welcomed the new and old customers to visit the test machine.

Parameters:

Specifications:

Name	brands
Main machine construciotn	16mm/iron board
Punching machine	7#/cast steel
Feeding controlling system	3 inverters controlling
Cutting blade heating way	Electrical heating
Discharge way	blowing
Lifting way	Auto Hydraulic lifting
Main motor	Shanghai /1.5KW/1set
AC feeding motor	Fenghua /0.75KW/2sets
Servo motor	Xuncheng ,Wuxi/3KW/2sets
Computer controlling system	Wuxi /Xuncheng/1set
Computer for punching system	Wuxi/Xinjie/1set
Main motor for punching	Guangdong /0.4KW /1set
Hall switches	Wuxi /Xuncheng/16pcs
Bearings	Japan/NSK
Converter	Yantai/Ourui/4sets
Feeding valve	Taiwan/Jinqi/4pcs
Flap valve	Taiwan/Jinqi/2pcs
Hot needle valve	Taiwan/Jinqi/1pcs
Solid state regulator	Zhejiang/CHINT/2PCS
Temperature controller	Taiwan/ 4pcs
Valve for punching	Taiwan/Jinqi/9pcs
Pressurized cylinder	Taiwan/Jiuli 3T/2pcs
Button	Zhejiang/CHINT/6PCS
Breaker	Zhejiang/CHINT/2PCS
HEATING TUBE	IMPOTED/1500W/2PCS
Heating cutting blade	IMPORTED/2PCS
Feeding photocell	Japan /Panasonic/2pcs
Colors Sensor	Japan /Panasonic/2pcs
Photocell for material tracing	Japan /Panasonic/2pcs
Photocell for checking material	Japan /Panasonic/4pcs
