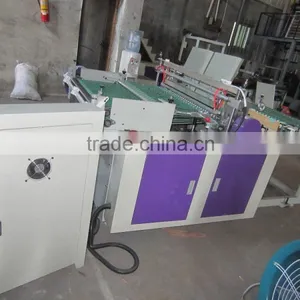

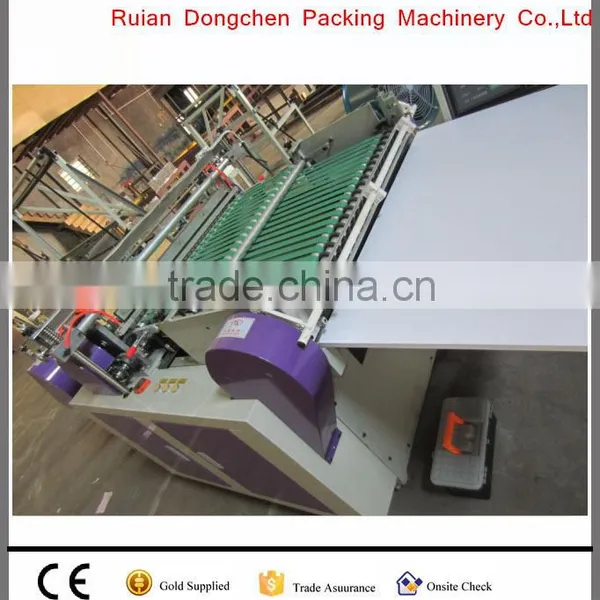

800 bubble film bag making machine
Uses:

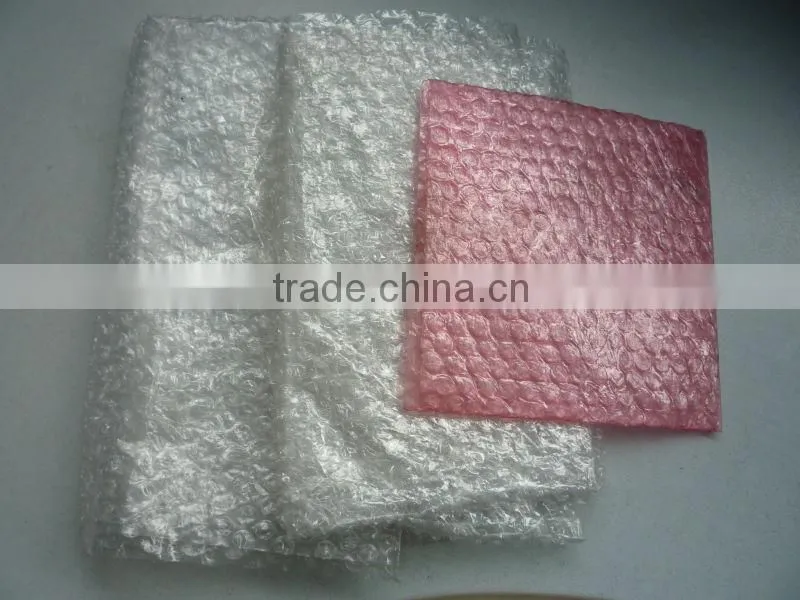

This machine is suitable for the production of polyethylene bubble film, EPE materials hardware, electronic products, electrical products, plastic film bags, this machine has automatic counting, automatic control and alarm. Bag length controlled by buttons with automatic folding discharge can double row job into Lu stack of collecting conveyor, easy-to-use.
Performance features:
1, the whole computer-controlled, stepper motor to pull material (optional servo motor control system).
2, the computer fixed-length, accurate and stable.
3, automatic counting, counting alarm and set the whole downtime.
4, from the sheet to the bag at once, reducing the cost of the venue, processes, artificial.
The main technical parameters:
| Model | MLQB-800 | MLQB-1000 |
| bag-making speed | 10-800mm | 10-1000mm |
| maximum length | 50-990mm | 60-990mm |
| Bag Thickness | 0.015-0.035mm | 0.015-0.035mm |
| per minute | 20-120pcs/min | 20-120pcs/min |
| total power | 3.2kw | 4kw |
| machine weight | 15000kg | 2000kg |
| Dimensions | 4400mmX2800mmX1750mm | 4500mmX3000mmX1950mm |
main configuration:
| serial number | Name | Quantity | origin or requirements | manufacturers |
| 1 | computer | 1 sets | / | Wuxi Dezheng or brilliant |
| 2 | inverter | 1 sets | Taizhou | Hualan |
| 3 | host motor | 1 sets | Shanghai | force super |
| 4 | discharge motor | 1 sets | Wuhu | Wuhu |
| 5 | machine important structure | 1 sets | channel steel, cast iron, iron | / |
| 6 | seal cutter | 1 Ba | Ryan | / |
