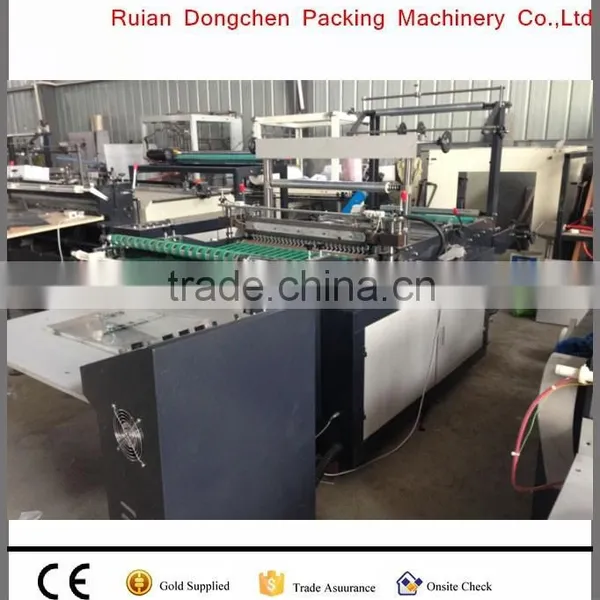

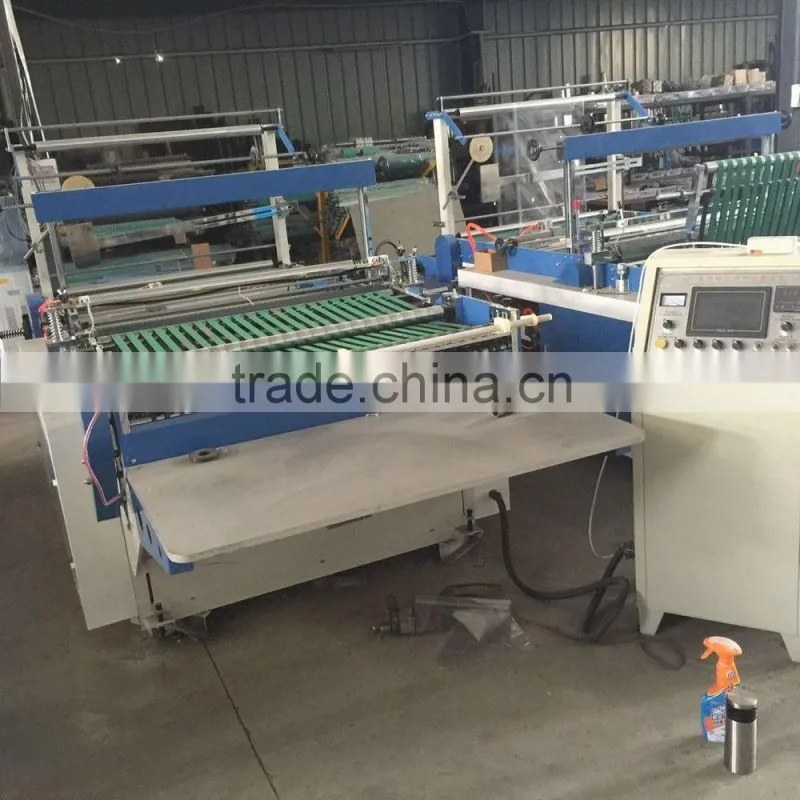

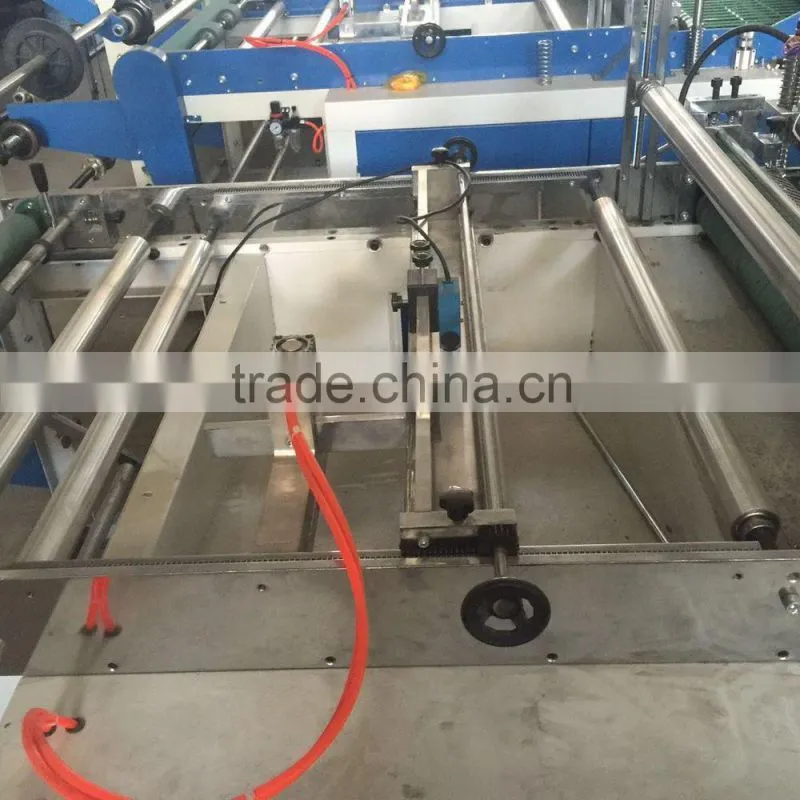

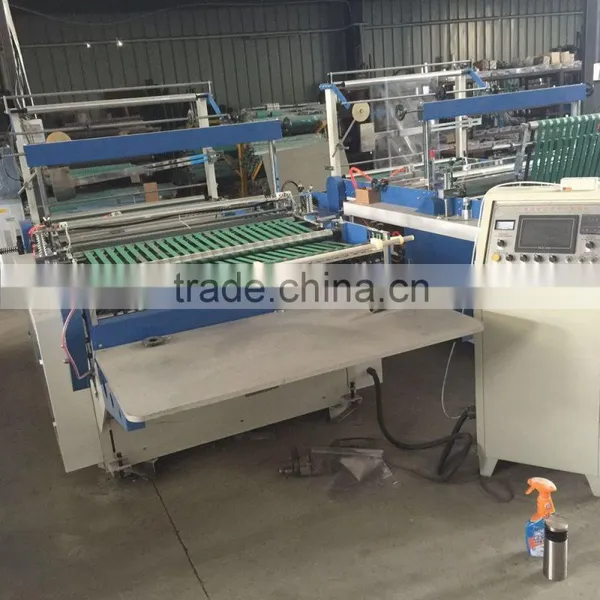

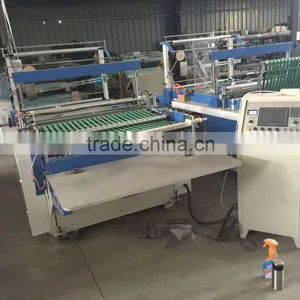

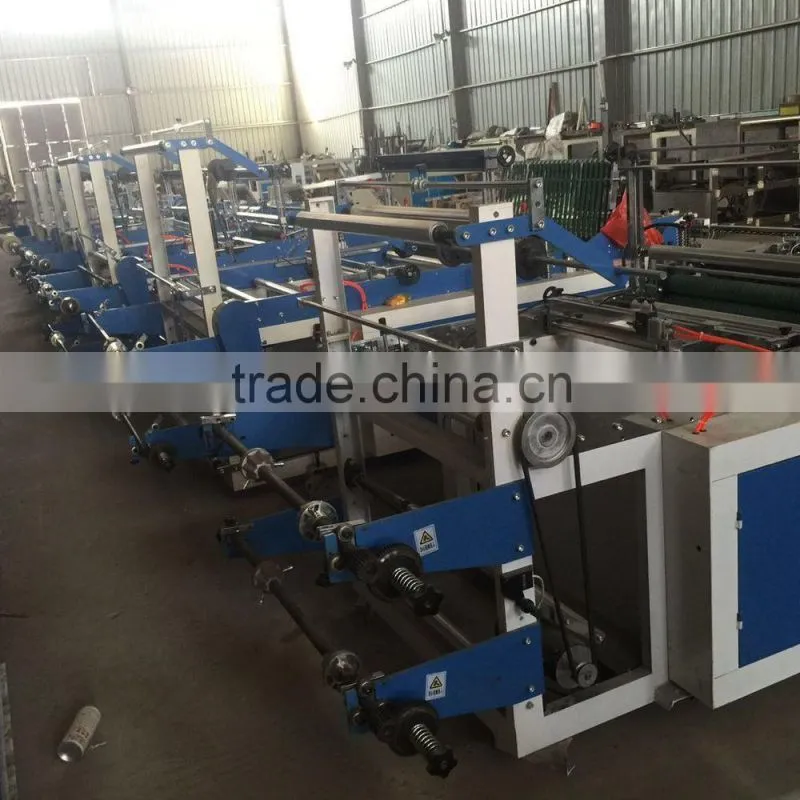

DC series high speed plastic side sealing cutting bag making machine
BAG SAMPLES!!
Uses:
The machine is suitable for BOPP, OPP, PE, POF printing and non-printing plastic film eagerly bag, ideal equipment for making sock bag, towel bag, bread bags, jewelry bags.
Performance and features:
1, the machine adopts microcomputer control and stepper motor to pull material.
2, any fixed-length, step photoelectric tracking, accurate, stable, lost the standard automatic shutdown.
3, automatically sync on the double-sided tape, automatic drilling.
4, automatic counting and alarm can be set to any number.
5,Lace sealed automatic thermostat, sealing firmly, smooth, automatic break.
6, noise and speed.
Basic parameters:
| Model | DC-500 |
| Maximum bag width | 450mm |
| the maximum discharge curly diameter | ¢ 500mm |
| Bag length | 720mm |
| maximum operating speed | 20-300pcs |
| cutting precision | ± 0.15-0.2mm |
| motor power | 2.2kw |
| machine weight | 1200kg |
| machine size | 3000×1200×1500m |
Machine specification:
No. |
NAME |
QTY |
ORIGIN |
BRAND |
1 |
COMPUTER |
1SET |
WUXI |
HLD |
2 |
CONVERTER |
1SET |
1.5KW |
DF |
3 |
MAIN MOTOR |
1SET |
RA(AC)1.5KW |
KY |
4 |
UNWIND MOTOR |
1SET |
WH(DC)400W |
DL |
5 |
MACHINE CONSTRUCTION |
1SET |
CASTING IRON |
/ |
6 |
SELING-CUTTING KNIFE |
STRAIGHT &DOTTED KINDS |
RUIAN |
/ |
7 |
PUNCHING PART |
1SET |
SHANGHAI |
/ |
8 |
HEATING SHEETS |
2 |
RUIAN |
